56D3048 5
HDV Series Direct Vent Gas Fireplace PRoDuCt FeAtuReS
• This appliance has been certified for use with either
natural or propane gas. See appropriate data plates.
• This appliance is not for use with solid fuels.
• The appliance is approved for bedroom or bedsitting
room installations.
• The appliance must be installed in accordance with local
codes if any. If none exist use the current installation
code. ANSI Z3.1/NFPA 54 in the USA, CSA B149 in
Canada.
• This appliance is mobile home approved.
• The appliance must be properly connected to a venting
system.
• The appliance is not approved for closet or recessed
installations.
PRoDuCt SPeCIFICAtIoNS
FP2463
HDV features
Off/Pilot/On Knob
Optional Remote
Receiver

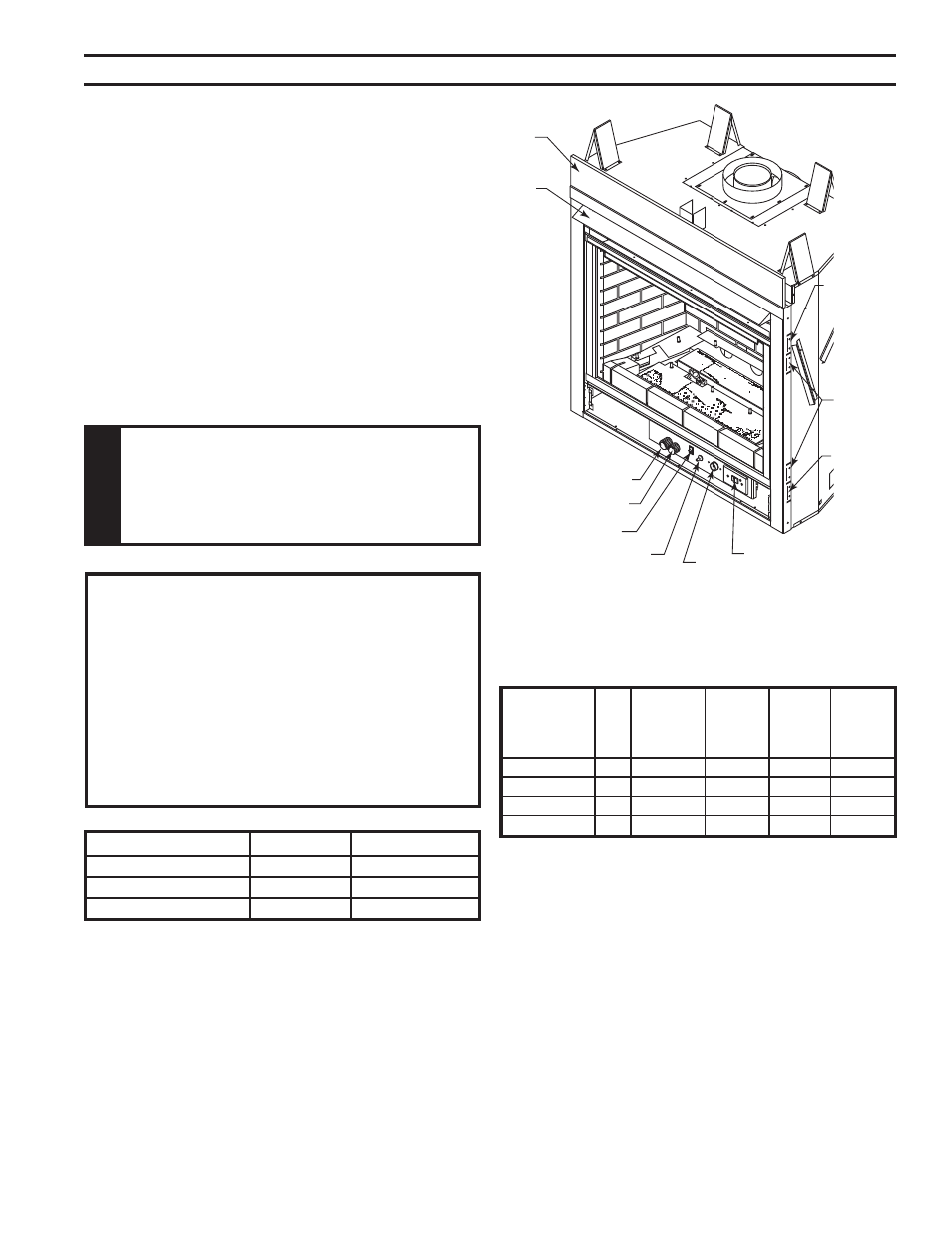

Figure 1 - HDV500 Fireplace
(Millivolt Unit Shown - Also Available with Signature
Command System)
Hi/Lo Knob
Blower
Control
On/Off/RS Switch
Ignitor
1/"
Nailing
Flange
5/8"
Nailing
Flange
1/"
Nailing
Flange
Hood
Insulation
Board
FP463
W
ARNING
Do not remove insulation board.
GAS PReSSuReS
HIGH eleVAtIoNS
Input ratings are shown in BTU per hour and are certified
without deration for elevations up to 4,500 feet (1,370
m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z3.1/NFPA 54 and/or local codes having juris-
diction.
In Canada, please consult provincial and/or local authori-
ties having jurisdiction for installations at elevations
above 4,500 feet (1,370 m).
Natural Propane (LP)
Inlet Minimum 4.0” w.c. 11.0” w.c.
Inlet Maximum 10.5” w.c. 13.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
Front Rear
Max. Min. Burner Burner
Input Input orifice orifice
Model Fuel Btu/h Btu/h Size Size
HDV500NV Nat. 41,000 8,000 .30 mm #37
HDV500PV LP 40,000 3,000 #55 #53
HDV500NSC Nat. 41,000 8,000 .30 mm #37
HDV500PSC LP 40,000 3,000 #55 #53
GAS SPeCIFICAtIoNS & oRIFICe SIZe
