Monessen Hearth HDV500NV/PV - Manual (Page 30)

HDV Series Direct Vent Gas Fireplace
30 56D3048
ON
OFF
OPTIONAL REMOTE
WALL SWITCH
ON
OFF
OPTIONAL REMOTE
WALL SWITCH
PILOT HI
LO
ON OFF TH
TP
TH/TP
ON
OFF
RS
FP2469
HDV wiring
ReMote WAll MouNteD SWItCH FoR MIllIVolt VAlVeS oNly
A remote wall switch and up to fifteen (15) feet of 18 Ga. wire may be used with this appliance.
Attach the wall switch in a junction box at the desired location on the wall. Figure 44. Do not extend
beyond the wall switch wire length provided.
Note: Extended lengths of wire may cause the fireplace not
to function properly. Longer length of wire is permitted if the
wire is made out of larger gauge (diameter) wire. Always check
with local code.

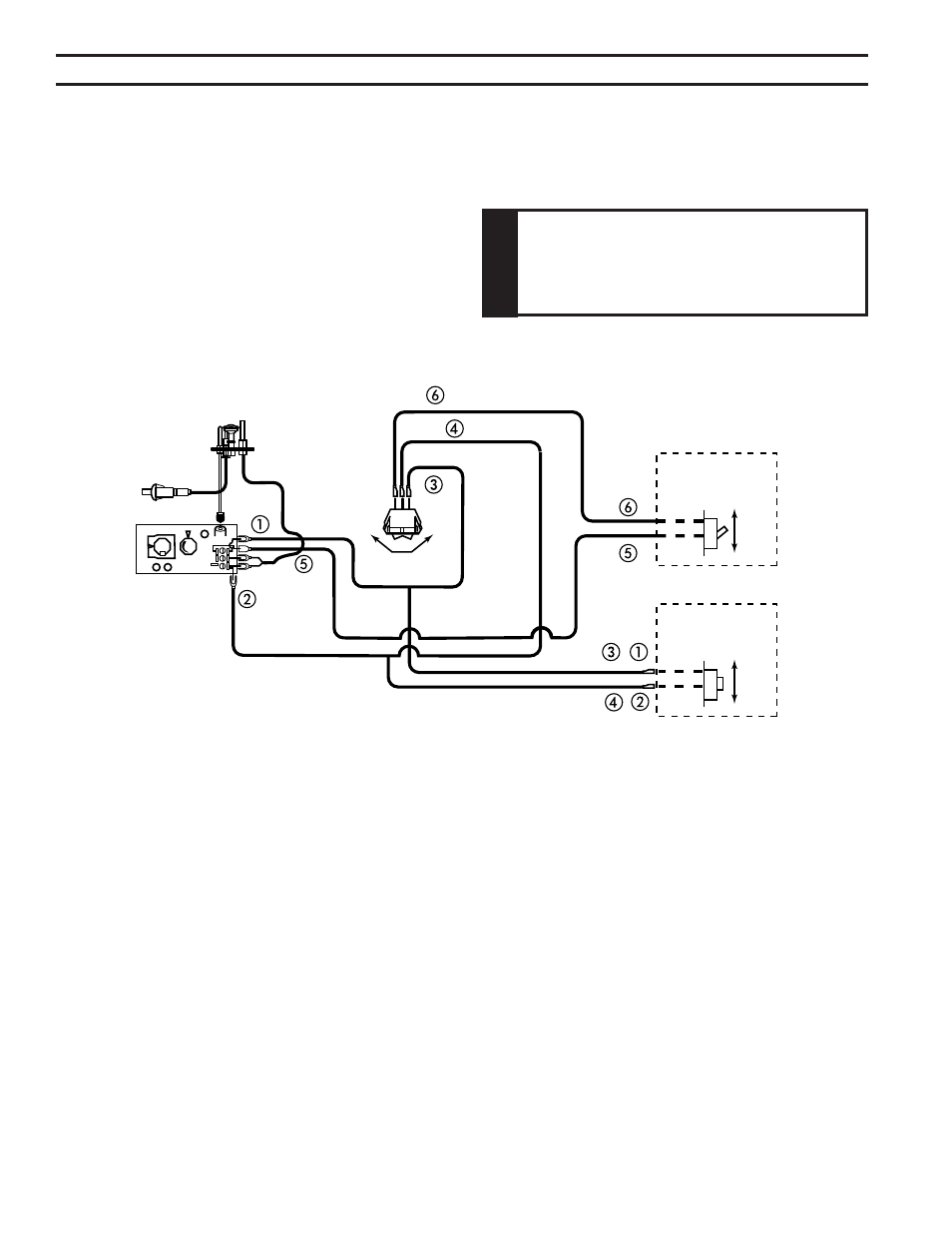

Figure 44 -
Wiring Diagram for Wall Switch
(Millivolt Units Only)
eleCtRICAl INStAllAtIoN - MIllIVolt
W
ARNING
Do not connect wall switch to (110 V)
circuit.
