HDV Series Direct Vent Gas Fireplace
4 56D3048
CANoPy INStAllAtIoN
Remove top louver assembly before installing canopy.

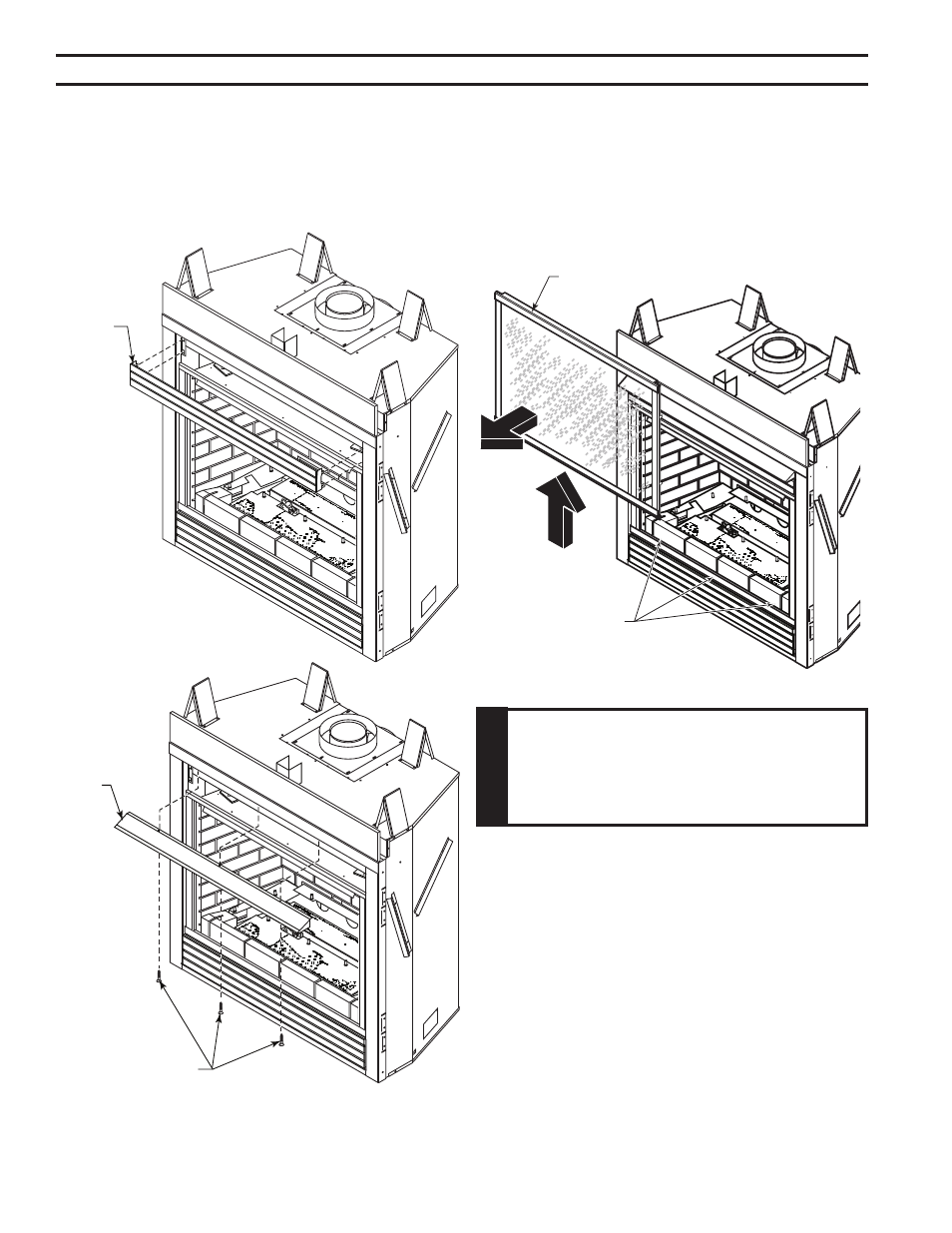

1. Unhook top louver assembly. Set aside. Figure 55
. Attach canopy to underside of top outer shell with three
(3) screws provided. Figure 56
3. Hook top louver assembly back into place.
CANoPy & GlASS FRAMe
FP2483
install louver
Louver
Assembly
FP483
Figure 55 -
Remove Top Louver Assembly
FP2484
install canopy
Canopy
Screws
FP484
Figure 56 -
Install Canopy
GlASS FRAMe ReMoVAl
1. Remove louver assembly from the top.
. Release three (3) clamps on bottom of fireplace. Figure
57
3. Tilt glass frame out and lift glass frame up until it clears
hook on top of fireplace.
4. Set glass frame aside.
FP2485
glass frame
Glass Frame
Clamps
FP485
Figure 57 -
Glass Frame Removal
CA
ut
Io
N
each clamp has a quick spring force. When
reinstalling clamps, keep fingers clear.
