Monessen Hearth HDV500NV/PV - Manual (Page 45)

56D3048 45
HDV Series Direct Vent Gas Fireplace loG INStAllAtIoN

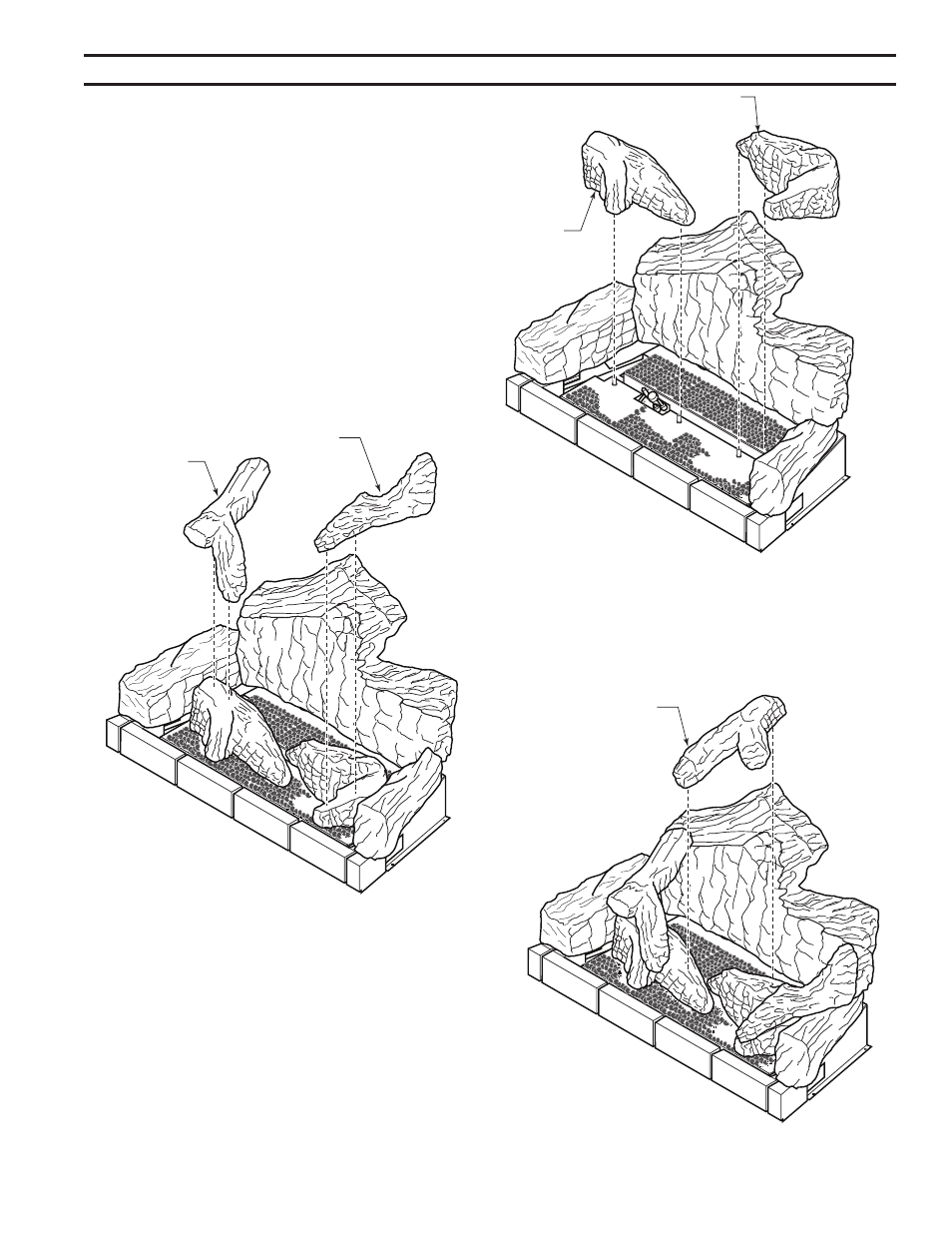

7. Place right mid log (#7) on two right pins on burner
assembly. Figure 63
8. Place left mid log (#6) on two left pins on burner assem-
bly. Figure 63
LG690
HDV middle logs
Right Mid Log
#7
Left Mid Log
#6
LG690
Figure 63 -
Place Right and Left Middle Logs
LG691
HDV top logs
Top Left Log
#4
Top Right Log
#5
LG691
Figure 64 -
Place Right and Left Top Logs
9. Place right top log (#5) on top of right mid log
and top of bottom right log. Figure 64
10.Place top left log (#4) on top of left mid log and
top of bottom left log. Figure 64
LG692
HDV center log
Center Log #8
LG69
Figure 65 -
Place Center Log
11.Place top center log (#8) across rear log
(#1) and left mid log (#6). Figure 65
