56D3048 39
HDV Series Direct Vent Gas Fireplace SIGNAtuRe CoMMAND SySteM oPeRAtIoN INStRuCtIoNS
FP1917
Signature components
8/08
RF Receiver
ON/OFF
NG/LP
Conversion
To Thermopile
To Sensor
To Sparker
To Command Center
To Stepper Motor
To Valve
Battery Door
Master Switch
ON
LED
OFF
Control
Board
Command
Center

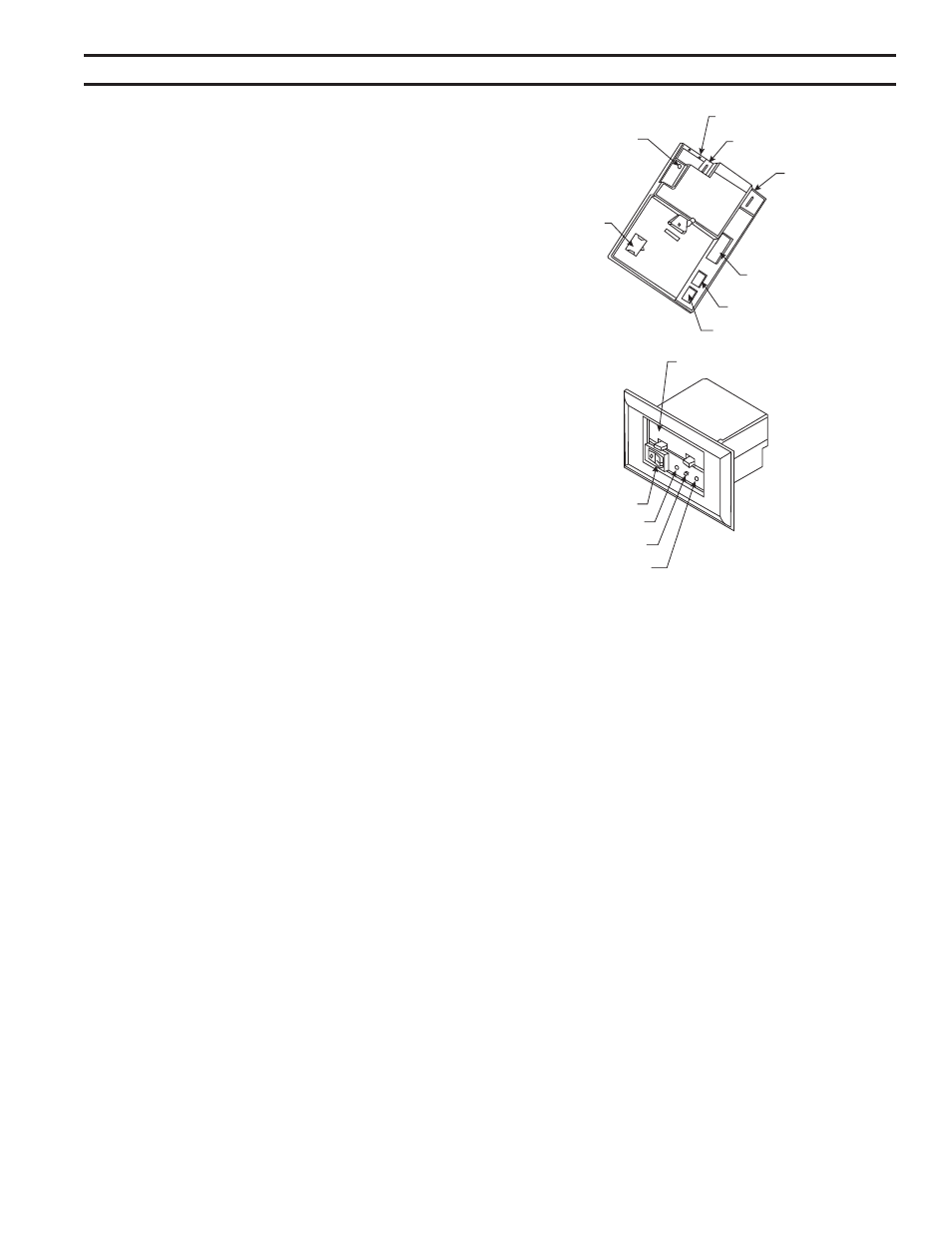

Figure 54 -
Signature Command System Components
FeAtuReS
Command Center
• Easy Access Function Operation and System Configuration
• Operation Confirmation/Fault Diagnostic Indications (LED/
Buzzer)
• ON/OFF/HI/Low Operation
Control Board
• Electronic Ignition
• Pilot Lockout safety feature
• Electric Power Regeneration from Thermopile to save bat-
tery
• 6-hour Automatic Shut Down Option
• Convenient NG/LP Gas Type Conversion
• Standing Pilot/Intermittent pilot Conversion
• Previous settings Restoration Ability
• Uninterrupted Operation During Power Outage (Automatic
Battery Backup)
• ON/OFF RF Remote Receiver
• Optional Transmitter Learn Capability
AC Interface Board (optional)
• Easy Snap-on Design
• Embedded Compact 10 VAC Adapter with Auto Battery
Back up Feature
• Remote Controlled Blower, Lighting, and Auxiliary AC Out-
puts
transmitter (optional)
RFSC RTSC RMSC
Three Flame Height Settings X X X
Low battery Indication for Transmitter X X X
Child Proof Lock-out X X X
LCD Backlight X X X
Security Codes X X X
Thermostatic Control Mode X X --
Three Brightness Settings for Lights X -- --
Three Speed Control for Blower X -- --
On/Off Auxiliary X -- --
Programmable Timer to turn blower on and off X -- --
BAtteRy INStAllAtIoN
The Command Center uses four (4) "AA" batteries.
to Install Batteries:
1. Press down the battery door tabs and pull out to remove battery door.
. Install the batteries as indicated on Command Center.
3. Close battery door by snapping in place.
4. When the four (4) batteries are installed the system is ready for use.
5. The batteries should be replaced when the LED indicates low battery.
