loG INStAllAtIoN

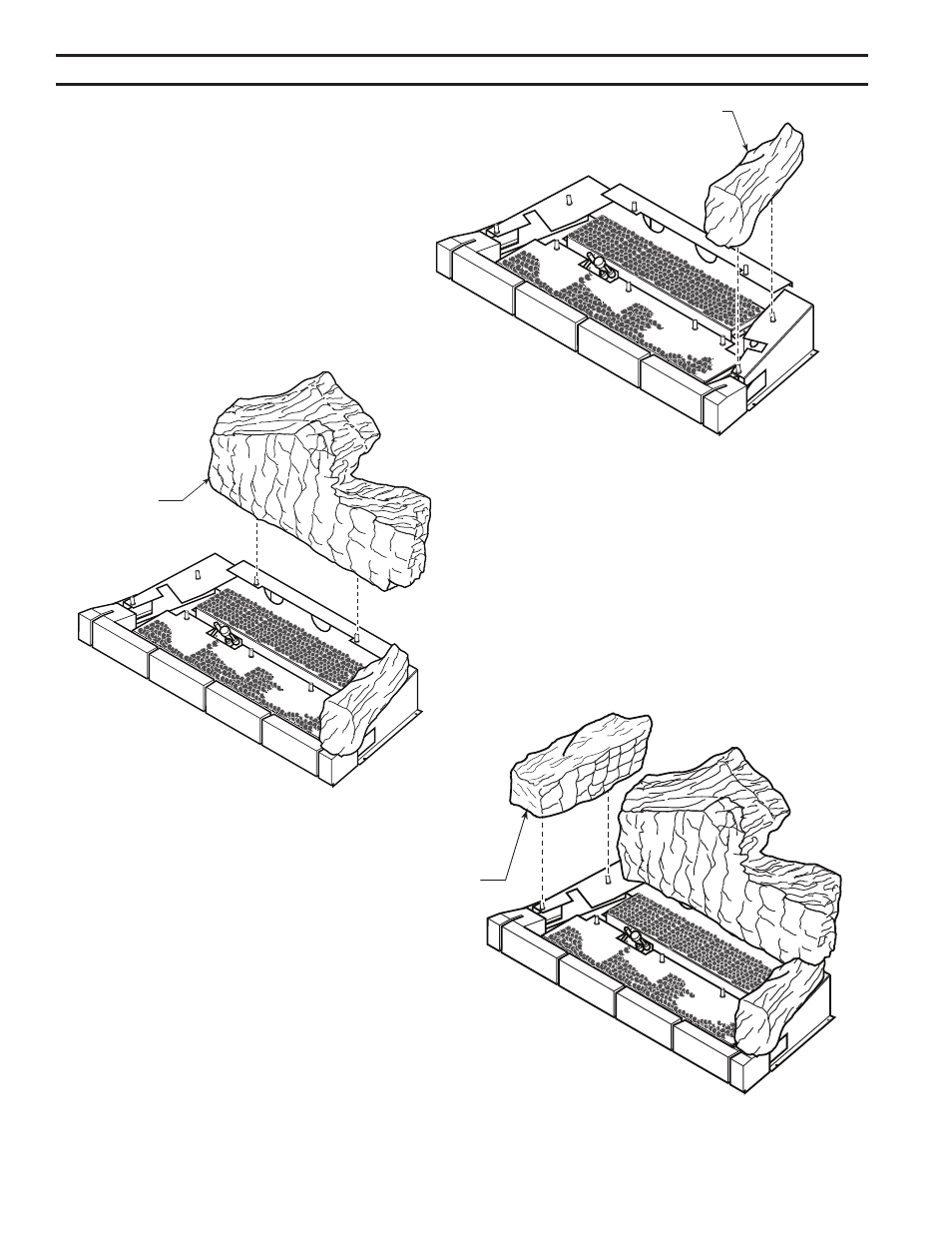

4. Place bottom right log (#3) on two pins
against right side of firebox. Figure
60
LG687
HDV bottom right log
Bottom Right
Log, #3
LG687
Figure 60 -
Place Bottom Right Log
LG688
HDV rear log
Rear Log
#1
LG688
Figure 61 -
Place Rear Log
5. Place rear log (#1) on two pins
against back side of firebox. Figure
61
LG689
HDV bottom left log
Bottom Left Log
#
LG689
Figure 62 -
Place Bottom Left Log
6. Place bottom left log (#) on two
pins against left side of firebox.
Figure 62
