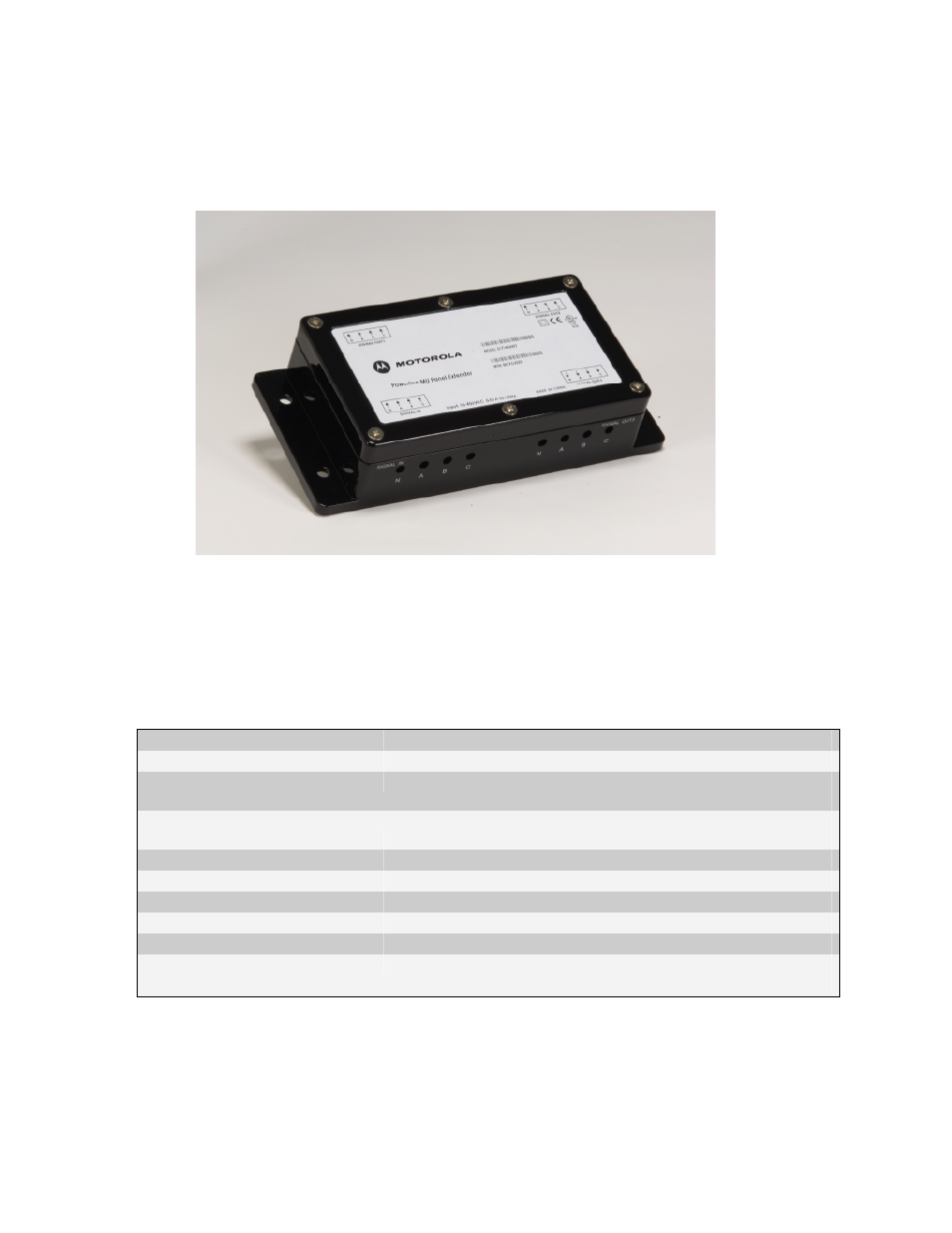

Powerline MU Panel Extender Available Now!
•
Useful in mass-metered buildings such as hotels and corporate facilities which have a large
distribution panel that distributes electricity to other smaller breaker panels
•
Connect up to three phases from one breaker panel to the Powerline MU Panel Extender
and transmit signal to up to three additional breaker panels
•
Provides efficiency in signal distribution while mitigating signal loss
Part Number 0171486N07
Part Name Powerline MU Panel Extender
Description Optional Powerline MU extender to couple up to four breaker
panels together
High Voltage Interface
Up to 277 VAC (phase-neutral), Up to 480 VAC (phase-
phase), Accepts up to 14 AWG wires
Input current 1 mA @ 50/60 Hz
Connectors 4 blocks of 4-pin terminals, 1 block per electrical panel
Dimensions 1.8 in. x 7.9 in. x 3.8 in. (4.5 cm x 20 cm x 9.6 cm)
Weight .85 lbs (385 g)
Operating temperature: 0°C to 50°C (32°F to 122°F)
Safety CE/
UL authorization (In conjunction with Powerline MU Gateway)
