6.3.3 SNMP Access Control

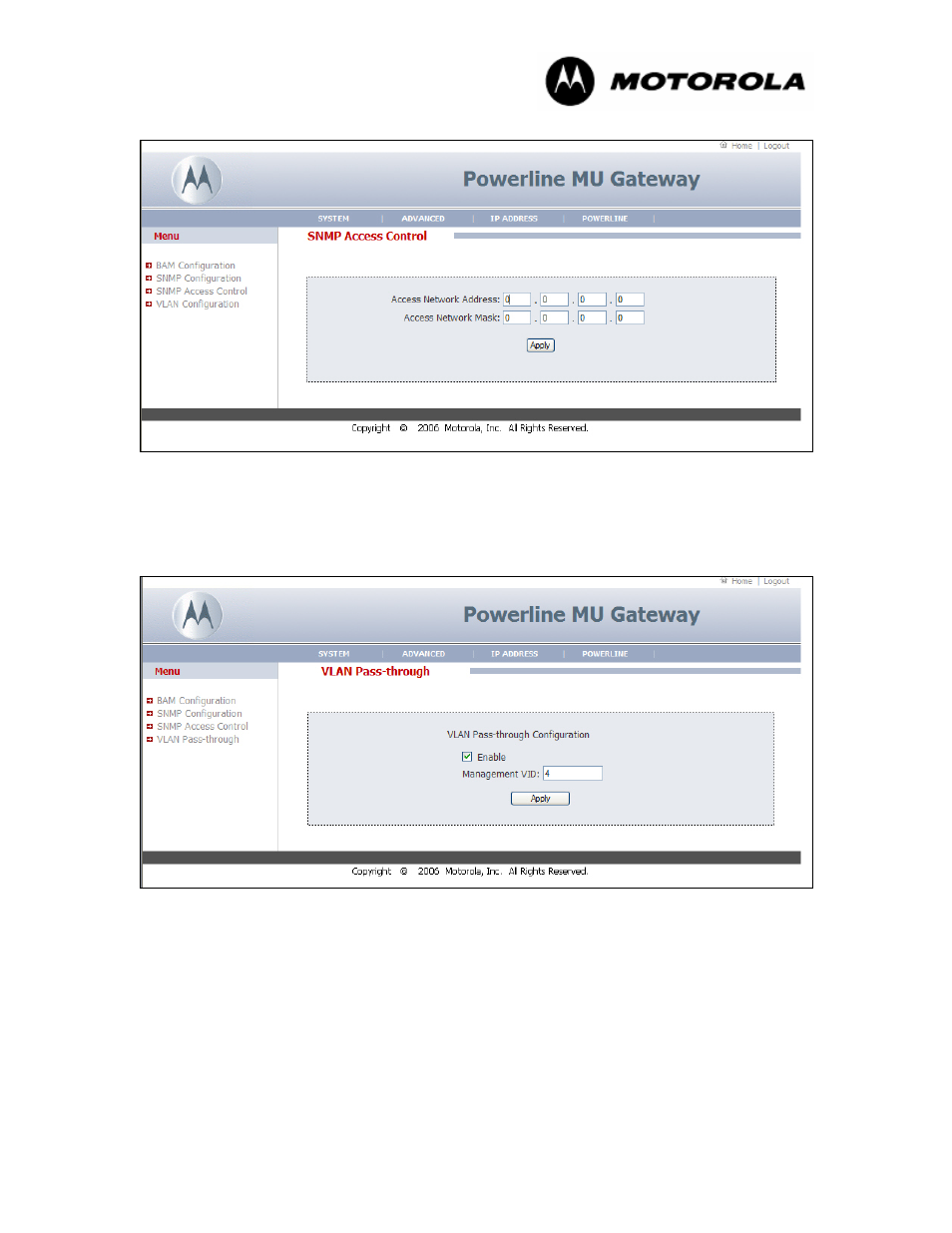

Figure 25 SNMP Access Control
Use this screen to control which IP addresses and networks are allowed to SNMP
manage the Gateway. Enter the Access Network Address and Mask and select Apply.
6.3.4 VLAN Configuration
Figure 26 VLAN Configuration
VLAN Configuration Feature, new in Powerline Gateway 2.0
With the new 2.0 Firmware, you will be able to support VLANs in your Powerline MU
network. This functionality enables maximum network performance by allowing for
network isolation, network segmentation and tagging and un-tagging of packets.
A major difference between Motorola Canopy and Powerline MU VLAN functionality is
that unlike Motorola Canopy, Powerline MU can only support either VLAN tagged or
untagged packets, but not both at the same time. Once the mode of operation for the
