User
Priorities or
3-bit ToS
setting
Class of
Service Application class
7 3 Network Control—characterized by a “must get there” requirement to maintain and
support the network infrastructure.
6 3 “Voice”—characterized by less than 10 ms delay, and hence maximum jitter (one
way transmission through the LAN infrastructure of a single campus).
5 2 “Video” or “Audio” —characterized by less than 100 ms delay.
4 2 Controlled Load—important business applications subject to some form of
“admission control,” be that pre-planning of the network requirement at one extreme
to bandwidth reservation per flow at the time the flow is started at the other.
3 1 Excellent Effort—or “CEO’s best effort,” the best-effort type services that an
information services organization would deliver to its most important customers.
2 0 Best Effort—LAN traffic as we know it today.
1 0 Background—bulk transfers and other activities that are permitted on the network
but that should not impact the use of the network by other users and applications.
0 1 Default
7.3.8 Advanced Bandwidth Control

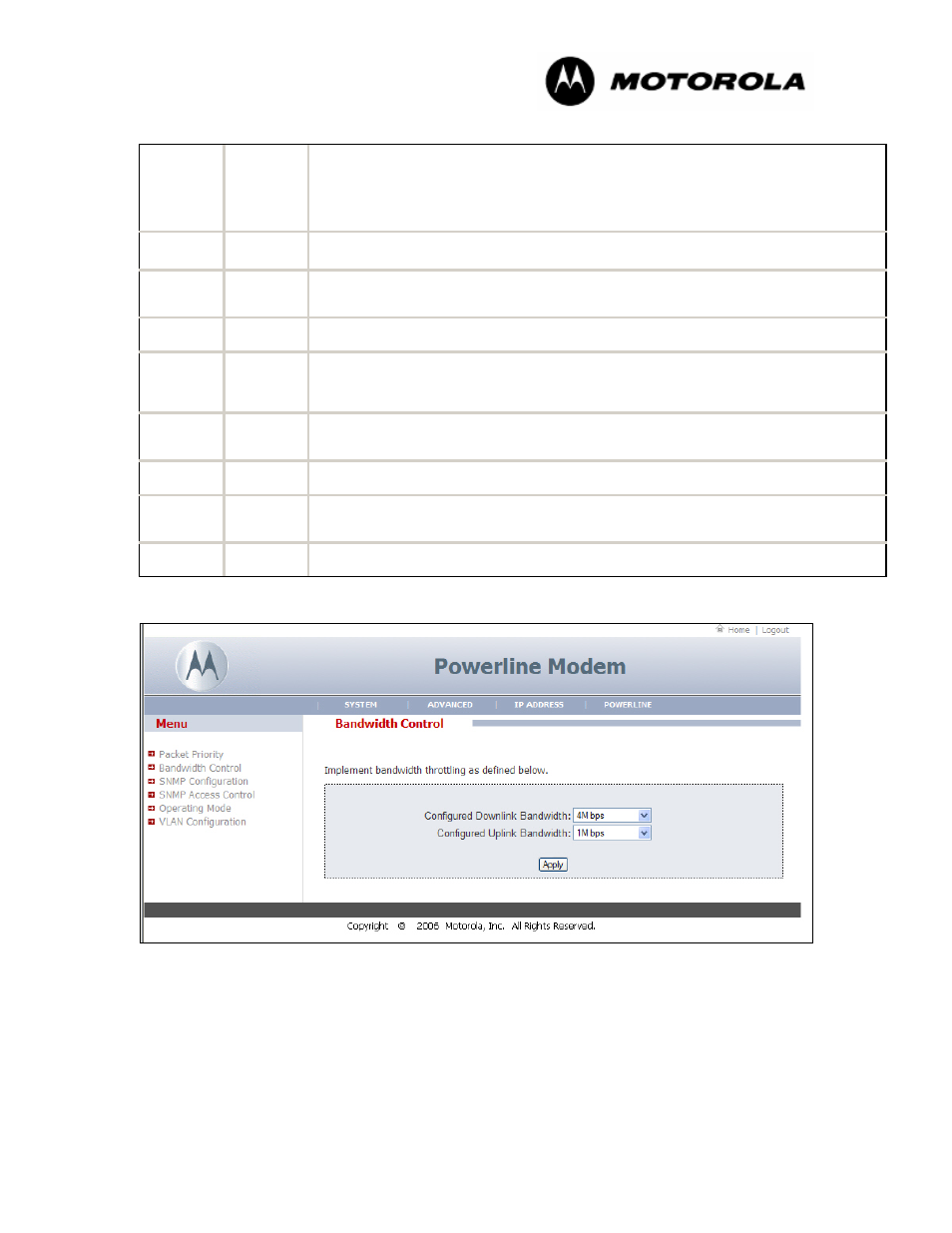

Figure 45 Advanced Bandwidth Control
Individual modems may be set for downlink and uplink sustained rates. The Advanced
Bandwidth Control allows you to set a specific speed for the specific modem. Use this
control to provide different service to different customers. Select Apply.
