Powerline MU
Page 16 of 112

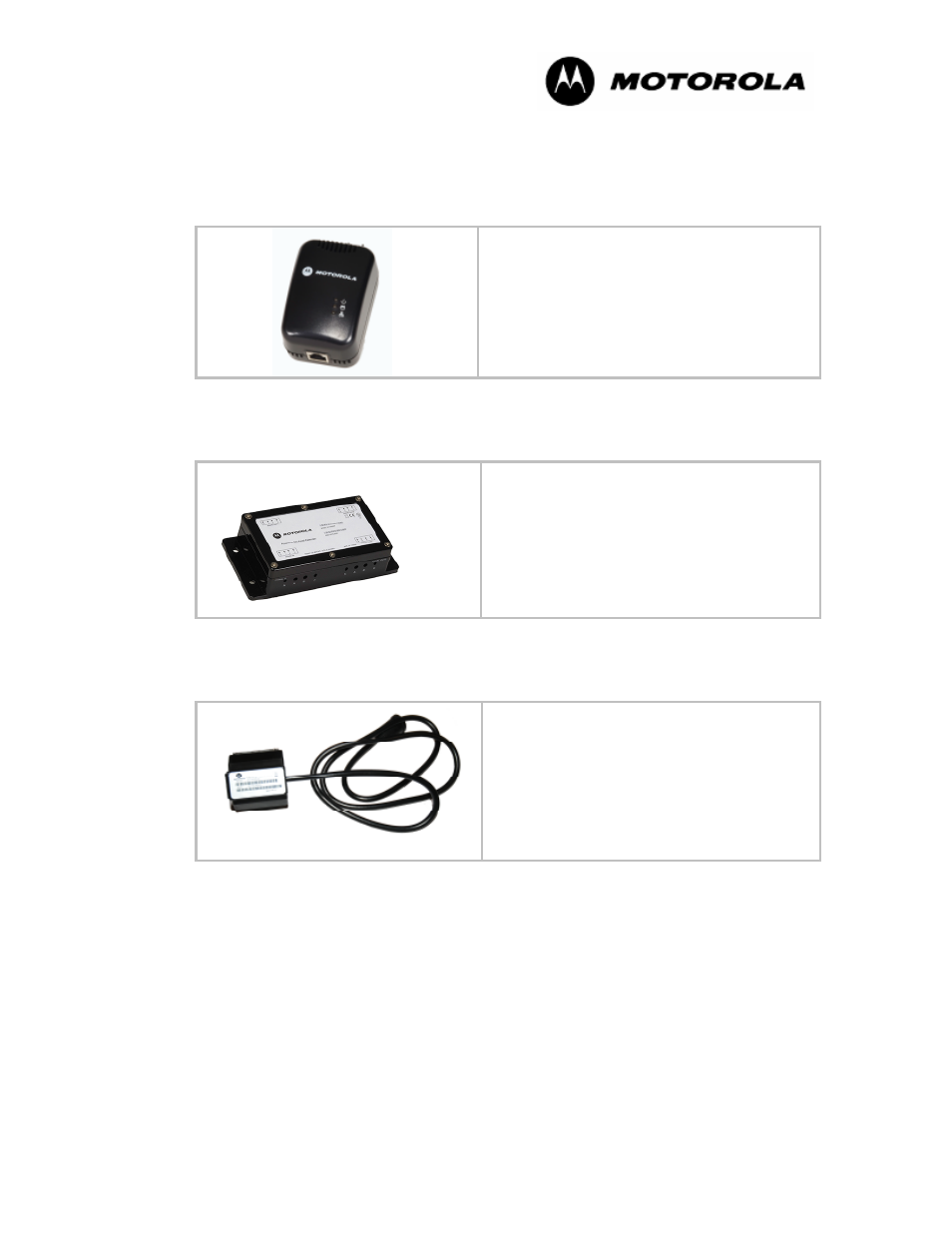

• Powerline MU Hybrid Adapter -- Optional Twisted Pair adapter for utilizing unused
phone lines for Gateway to Canopy Radio connectivity
In Package:
1 Powerline MU Hybrid Adapter
1 CD for changing the name and NEK of the device
• Powerline MU Panel Extender – Accessory to provide coupling between four
separate low-voltage distribution panels
In Package:
1 Powerline MU Panel Extender
Powerline MU Inductive Couplers – Accessory to provide inductive coupling between
the Powerline MU Gateway and electrical termination cabinets.
In Package:
1 Powerline MU Inductive Coupler
Three sizes available August, 2007
See size chart in section 4.2.3.
3.3 CONNECTING THE CANOPY NETWORK TO THE GATEWAY
Internet feed to the Gateway must be considered before the Gateway location is decided.
3.3.1 Ethernet from SM to Gateway
The simplest connection is from the Canopy Subscriber Module (SM) via shielded
Ethernet cable directly to the Gateway. Use straight-through shielded outdoor Ethernet
cables that adhere to Category 5 and 5e (TIA/EIA 568-B). The SM must be plugged into
an AC outlet, as it does not get power over the Ethernet cable.
