45

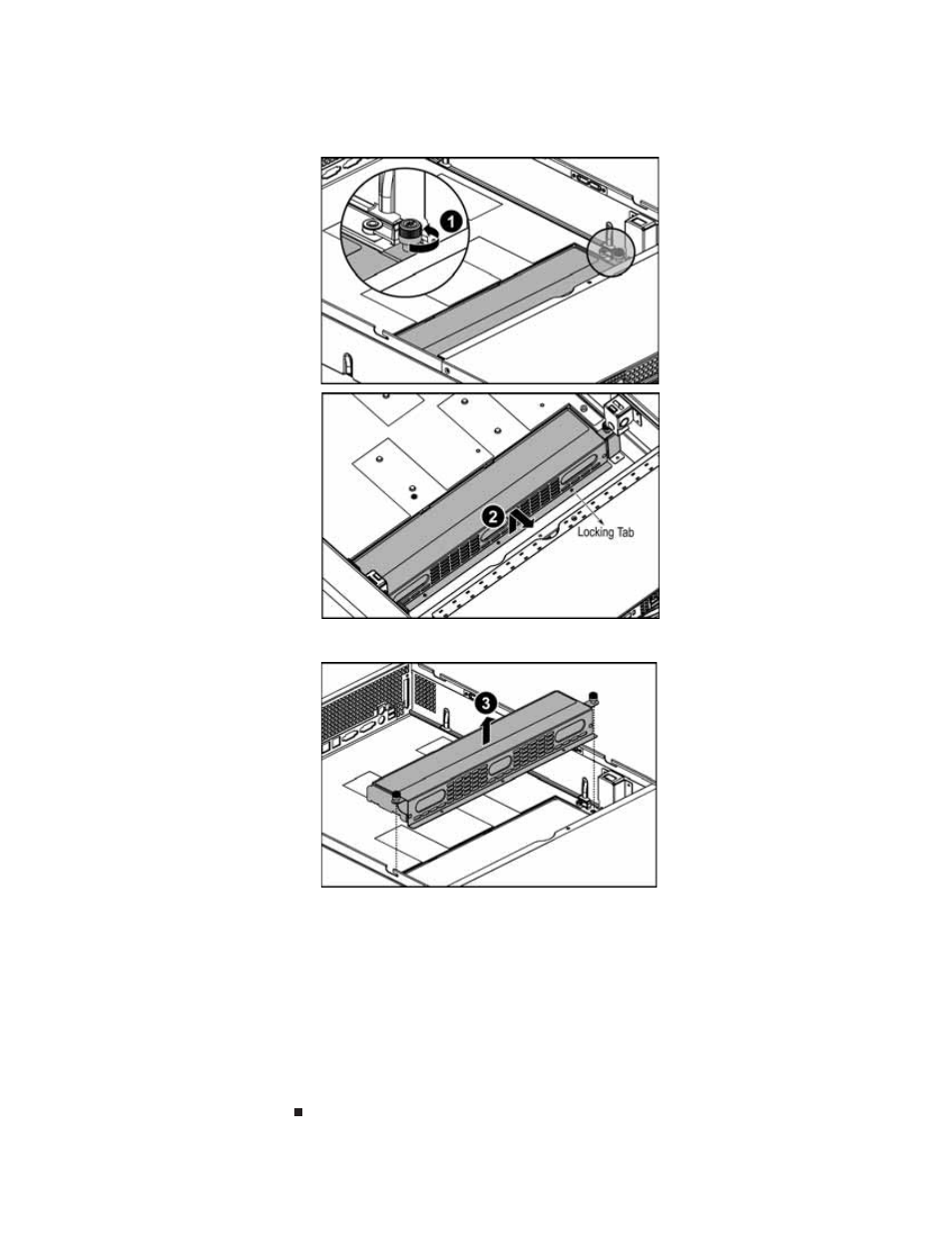

6 Loosen the thumbscrew (1), then lift the distribution module slightly and move it toward
the front of the case (2) to release it from the three locking tabs.
7 Lift the power distribution board (3) out of the chassis.
8 Insert the new power distribution board into the chassis, then move it toward the back
of the chassis to engage the three locking tabs.
9 Tighten the thumbscrew to secure the power distribution board in the chassis.
10 Reconnect the power cables. See “System board” on page 5 for the location of the
connectors on the system board.
11 Replace the system fan cage and fan duct by following the instructions in “Replacing system
fans” on page 38 .
12 Reinstall the PCI riser assembly by following the instructions in “Installing and removing
PCI expansion cards” on page 34 .
13 Follow the instructions in “Closing the server case” on page 27 .
