5

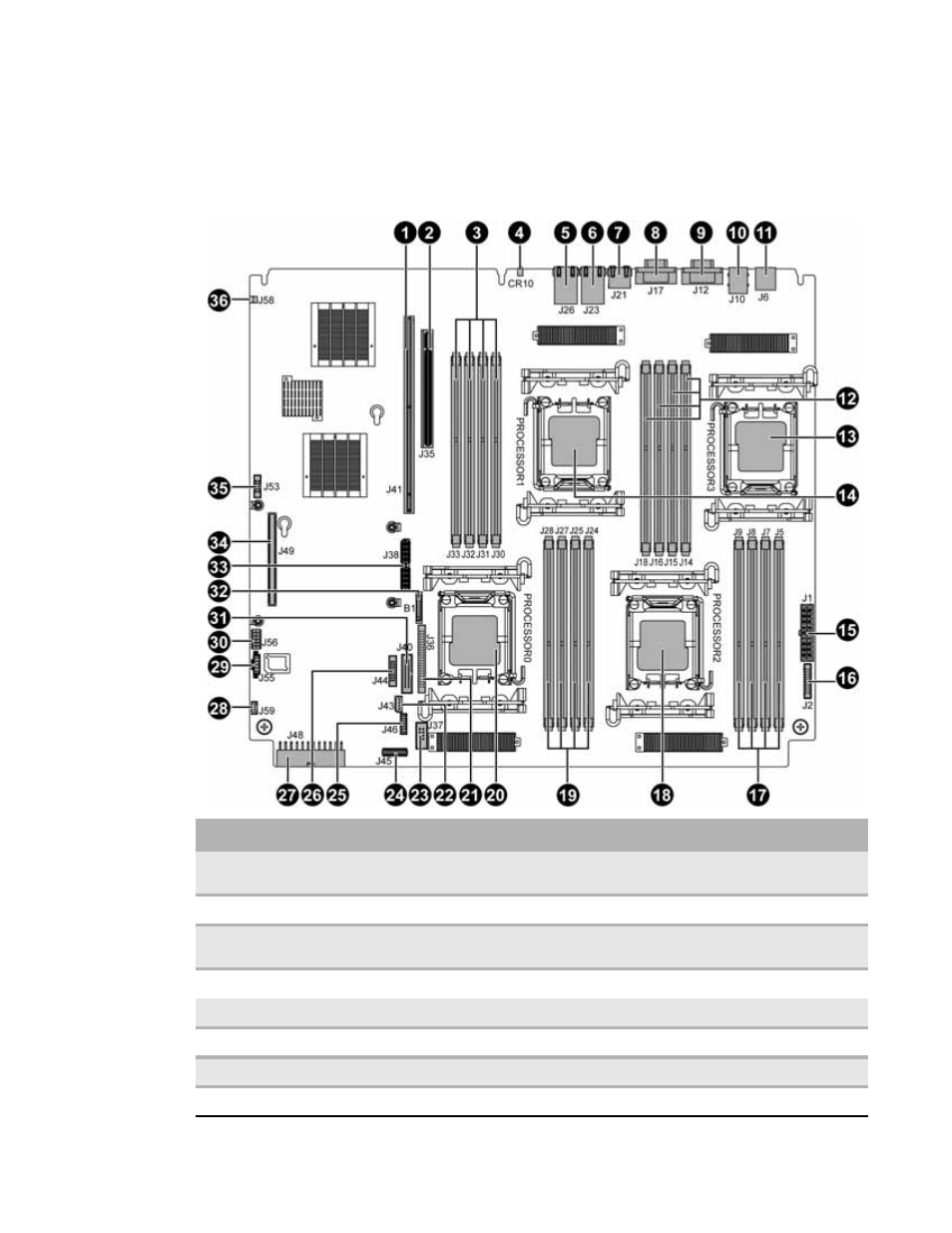

System board
Connectors
# Feature # Feature
1 PCI-X/PCI-E expansion slot (J41) 19 DIMM socket group for processor 0 (J24, J125,
J27, J28)
2 PCI-E expansion slot (J35) 20 Processor 0 (CPU0) socket
3 DIMM socket group for processor 1 (J33, J32,
J31, J30) 21 IDE connector (J36)
4 ID LED (CR10) 22 IPMB connector (J43)
5 Dual NIC 2 and 3 connector (RJ-45) (J26) 23 SMIL connector (J37)
6 Dual NIC 0 and 1 connector (RJ-45) (J23) 24 Front panel connector (J45)
7 Server management port (RJ-45) (J21) 25 Front panel VGA connector (J46)
8 VGA port (J17) 26 I 2 C (SMBus) signal connector (J44)
