Page 35
- 31 -
Hardware Installation Process
English

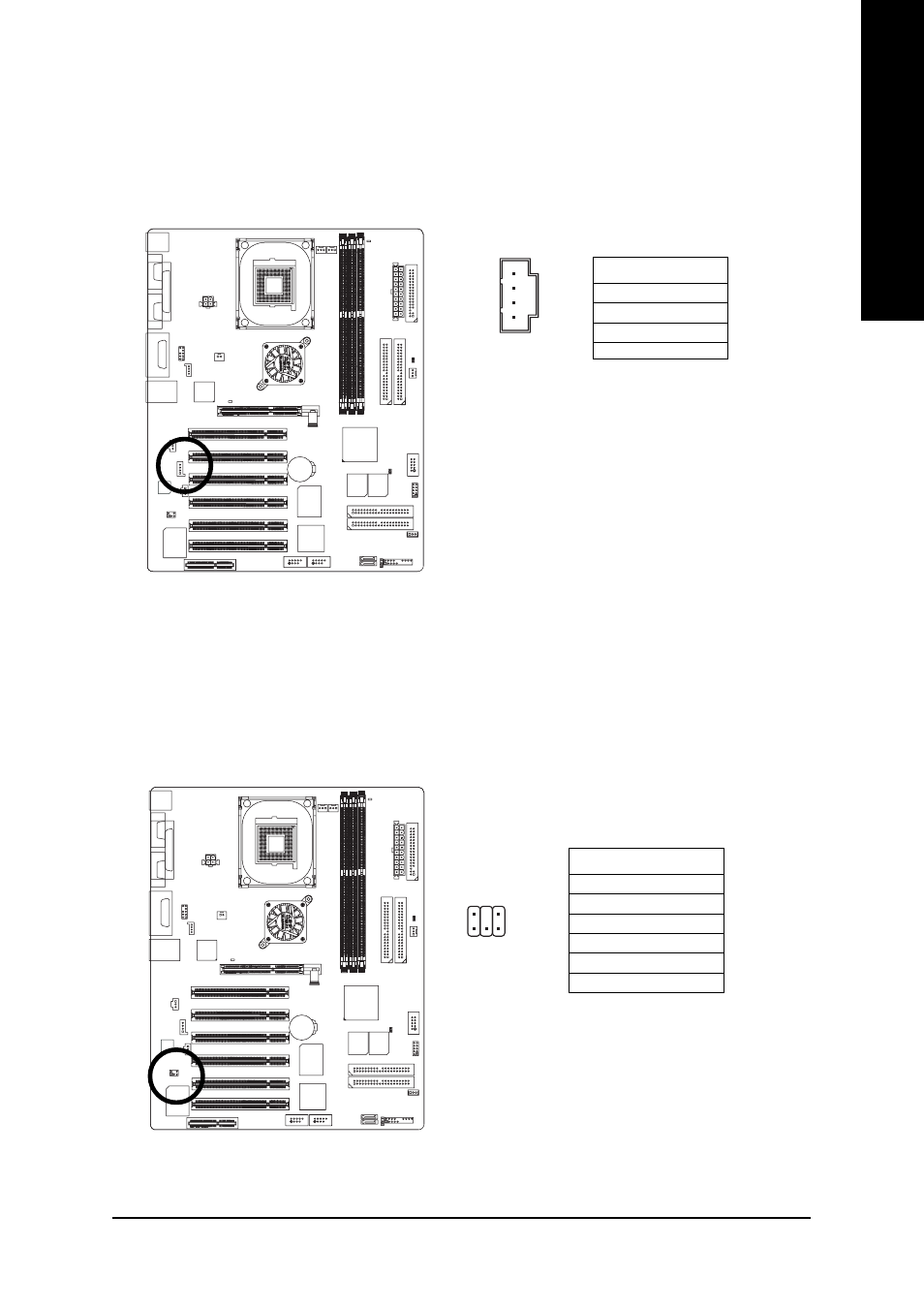

24) SUR_CEN
Please contact your nearest dealer for optional SUR_CEN cable.
Pin No.
Definition
1
SUR OUTL
2
SUR OUTR
3
GND
4
No Pin
5
CENTER_OUT
6
BASS_OUT
1
6
23) AUX_IN ( AUX In Connector)
Connect other device(such as PCI TV Tunner audio out)to the connector.
1
Pin No. Definition
1
AUX-L
2
GND
3
GND
4
AUX_R
2
5
