- 28 - GA-8PE667 Ultra2 / Pro Motherboard
English
Pin No. Definition
1 VCC
2 SCAPWCTL-
3 SCAC4
4 SCAIO
5 SCACLK
6 GND
7 SCARST-
8 SCALED
9 SCAC8
10 SCAPSNT

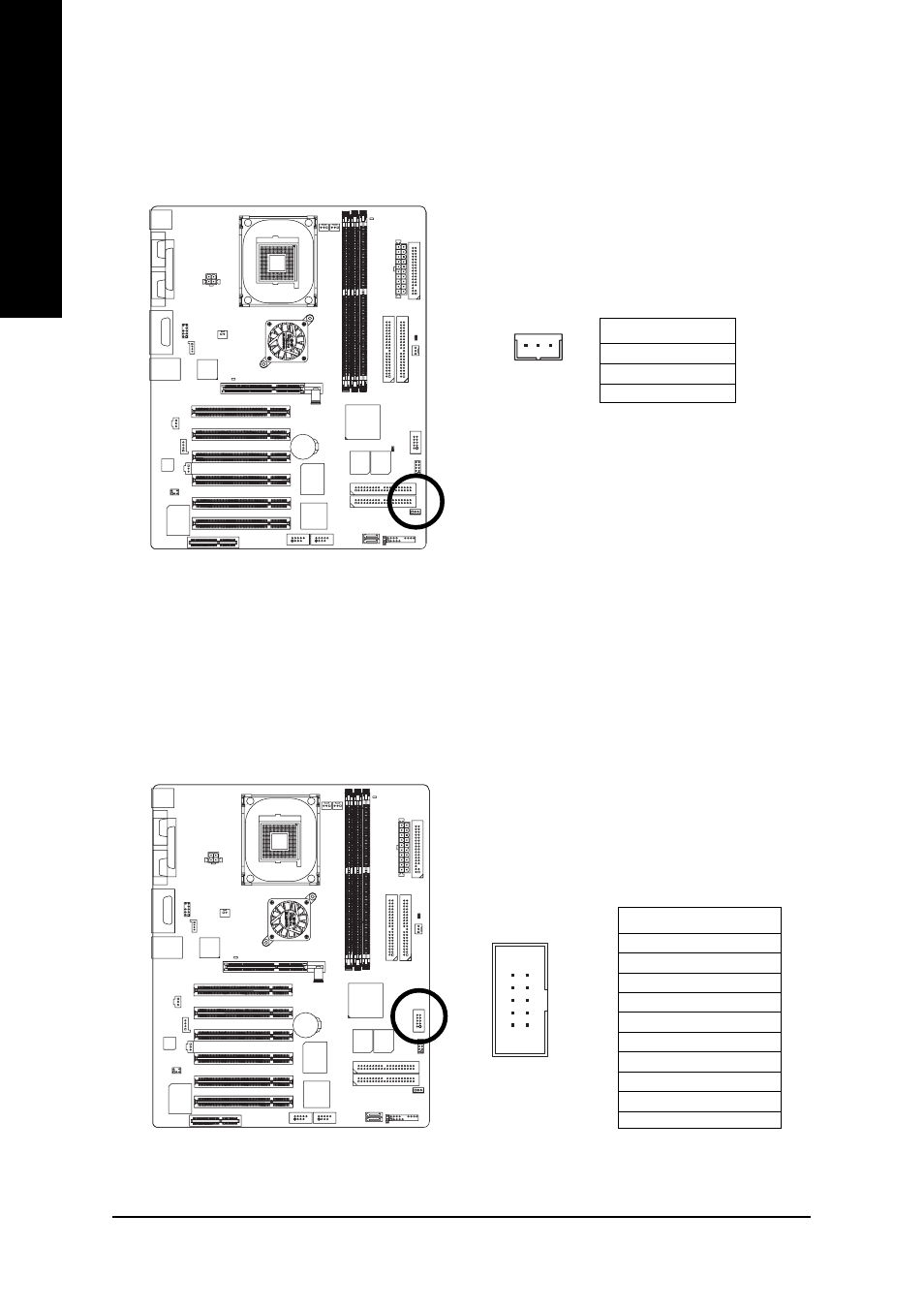

18) SCR (Smart Card Reader Header,Black Connector)
This MB supports smart card reader. To enable smart card reader function an optional smart
card reader box is required. Please contact your autherized distributor.
1
17)WOL (Wake On Lan)
This connector allows the remove servers to manage the system that installed this
mainboard via your network adapter which also supports WOL.
1
Pin No. Definition
1 +5V SB
2 GND
3 Signal
5 10
6
