-104-
Model G0709 (Mfg. Since 5/11)

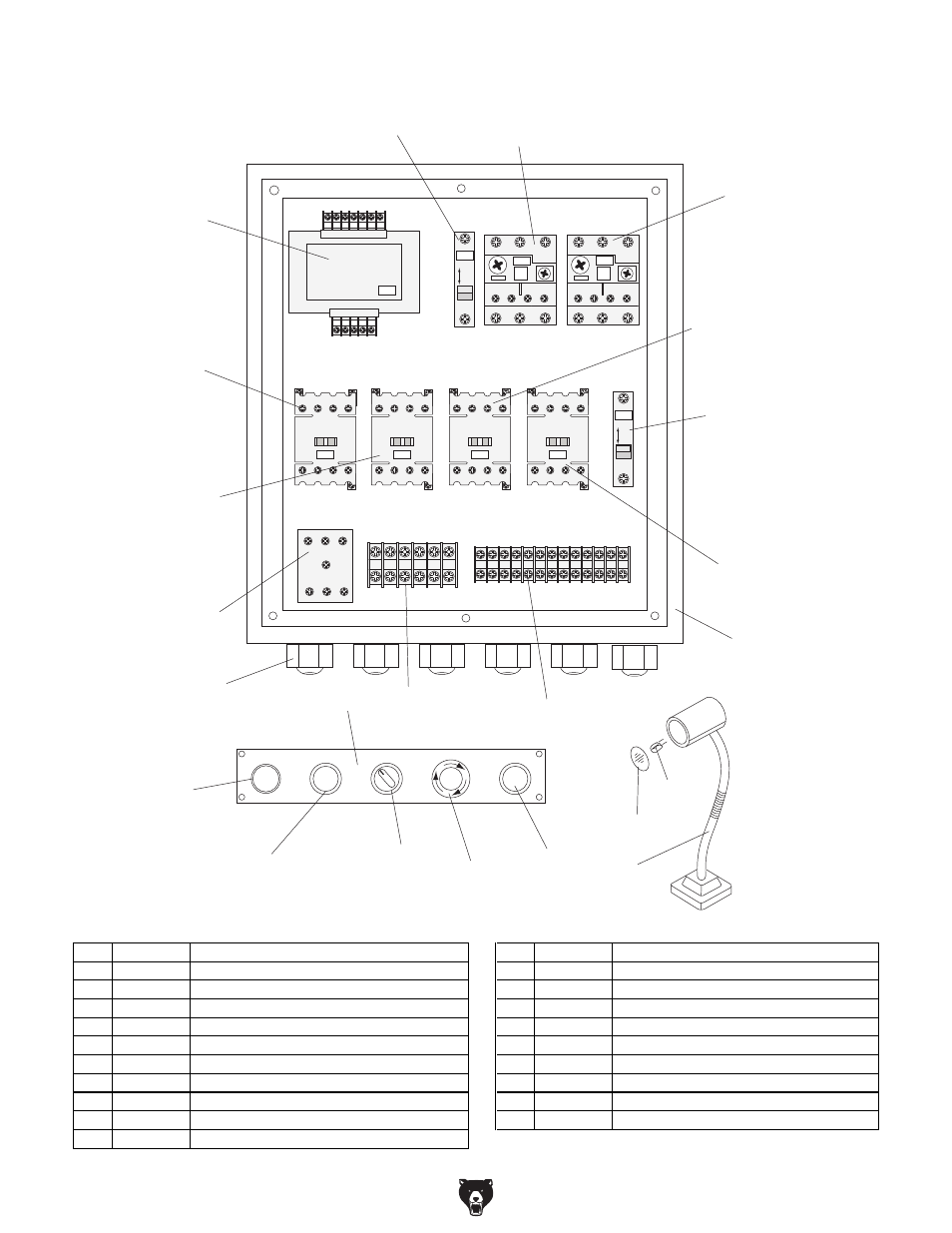

Main Electrical breakdown
14NO 24NO 34NO 44NO
13NO 23NO 33NO 43NC
KA1
Contactor
Tianshui
JZC3-14D
A1
A2
A2
14NO 24NO 34NO 44NO
13NO 23NO 33NO 43NC
KA0
Contactor
Tianshui
JZC3-14D
A1
A2
A2
2 T1
4 T2
6 T3 22NC
1 L1
3 L2
5 L3 21NC
KM1
Contactor
Tianshui
GSC1-1801
A1
A2
A2
2 T1
4 T2
6 T3 22NC
1 L1
3 L2
5 L3 21NC
KM2
Contactor
Tianshui
GSC1-1801
A1
A2
A2
2T1
6T3
4T2
NA
NC
1L1
5L3
3L3
98
97
95
96
2T1
6T3
4T2
NA
NC
1L1
5L3
3L3
98
97
95
96
FR1
FR2
20
21
22
23
24
25
26
E
33
32
31
30
Transformer
TC
ON
OFF
QM1
ON
OFF
QM2
1401
1402
1403
1404
1405
1421
1406
1406
1407
1408
1409
1410
1411
1412
1413
1414
1415
1416
1417
1418
1419
1420
1421
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
1401 P07091401 TRANSFORMER WUXI JBK5-100VATH
1412 P07091412 STRAIN RELIEF
1402 P07091402 CIRCUIT BREAKER 3A TIANSHUI, DZ451-63
1413 P07091413 POWER INDICATOR LIGHT
1403 P07091403 CIRCUIT BREAKER 5A TIANSHUI, DZ451-63
1414 P07091414 POWER BUTTON
1404 P07091404 OL RELAY TIANSHUI JRS4-09/25D 9-13A
1415 P07091415 PUMP ON/OFF SWITCH
1405 P07091405 OL RELAY TIANSHUI JRS4-09/25D 0.4-0.63A
1416 P07091416 EMERGENCY STOP SWITCH
1406 P07091406 CONTACTOR TIAN JZC3-40D 110V
1417 P07091417 JOG BUTTON
1407 P07091407 CONTROL PANEL PLATE
1418 P07091418 WORK LAMP ASSEMBLY
1408 P07091408 COPPER GROUND BLOCK
1419 P07091419 LAMP LENS
1409 P07091409 TERMINAL BAR 12 P
1420 P07091420 HALOGEN BULB 50W 24V
1410 P07091410 TERMINAL BAR 26 P
1421 P07091421 CONTACTOR TIANSHUI GSC1-1801 110V
1411 P07091411 ELECTRICAL BOX ASSEMBLY
