g0649 Welding downdraft table
vibrating filter
( Manual cleaning)
the vibrating filter collects 85% of the 1-micron
particles. this filter rarely needs to be replaced
if the machine is used properly and the filter is
periodically removed and manually cleaned.
Tools needed Qty
Wrench 17mm.................................................... 1
Wrench 14mm ................................................... 1
oSha approved respirator .............................. 1
Safety goggles .................................................. 1
air Compressor ................................................. 1
Blowgun ............................................................. 1
To perform this procedure:
1. With the machine plugged in, press the
manual cleaning mode and hold for a few
seconds. the vibrating filter motor will operate,
cleaning the vibrating filters.
2. diSConnECt thE MaChinE FroM
poWEr, put on your respirator and safety
goggles, and empty both dust drawers (
figure
30).

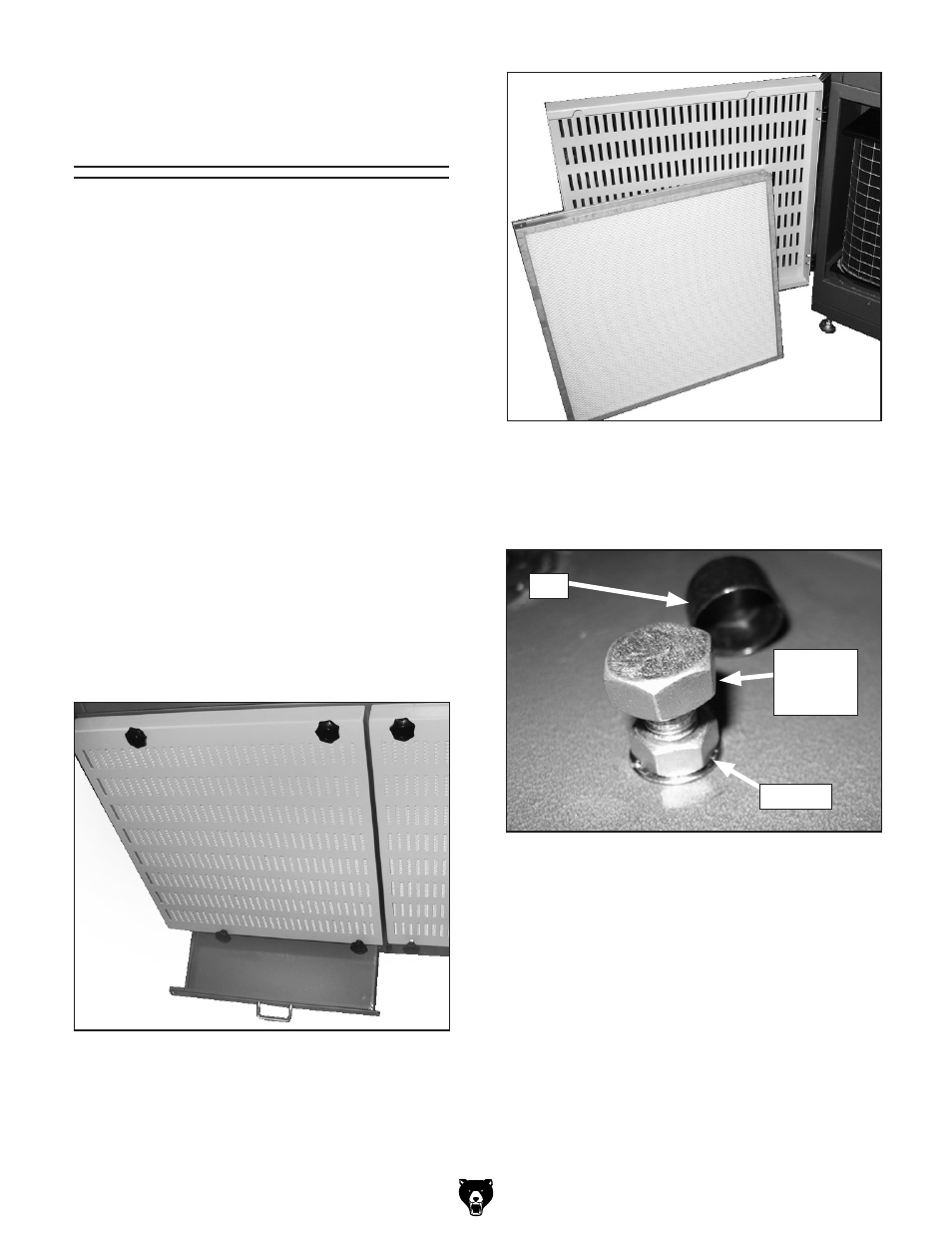

figure 32. Vibrating filter retainer.
Cap
Jam nut
Spring
retaining
Bolt
5. using a 17mm wrench, loosen both jam nuts
until they park against the underside of the
spring retaining bolt heads (
figure 32).
6. using a 17mm socket wrench with a socket
extension, remove all four spring retaining
bolts from the cabinet (
figure 33).
figure 31. hEpa filter removed.
4. open the main control panel, remove the
plastic dust plugs and caps covering the
spring retaining bolts (
figure 32).
figure 30. hEpa filter housing and dust drawer.
3. open the hEpa filter housing, and lift the
hEpa filter up and out of the housing ( figure
31).
