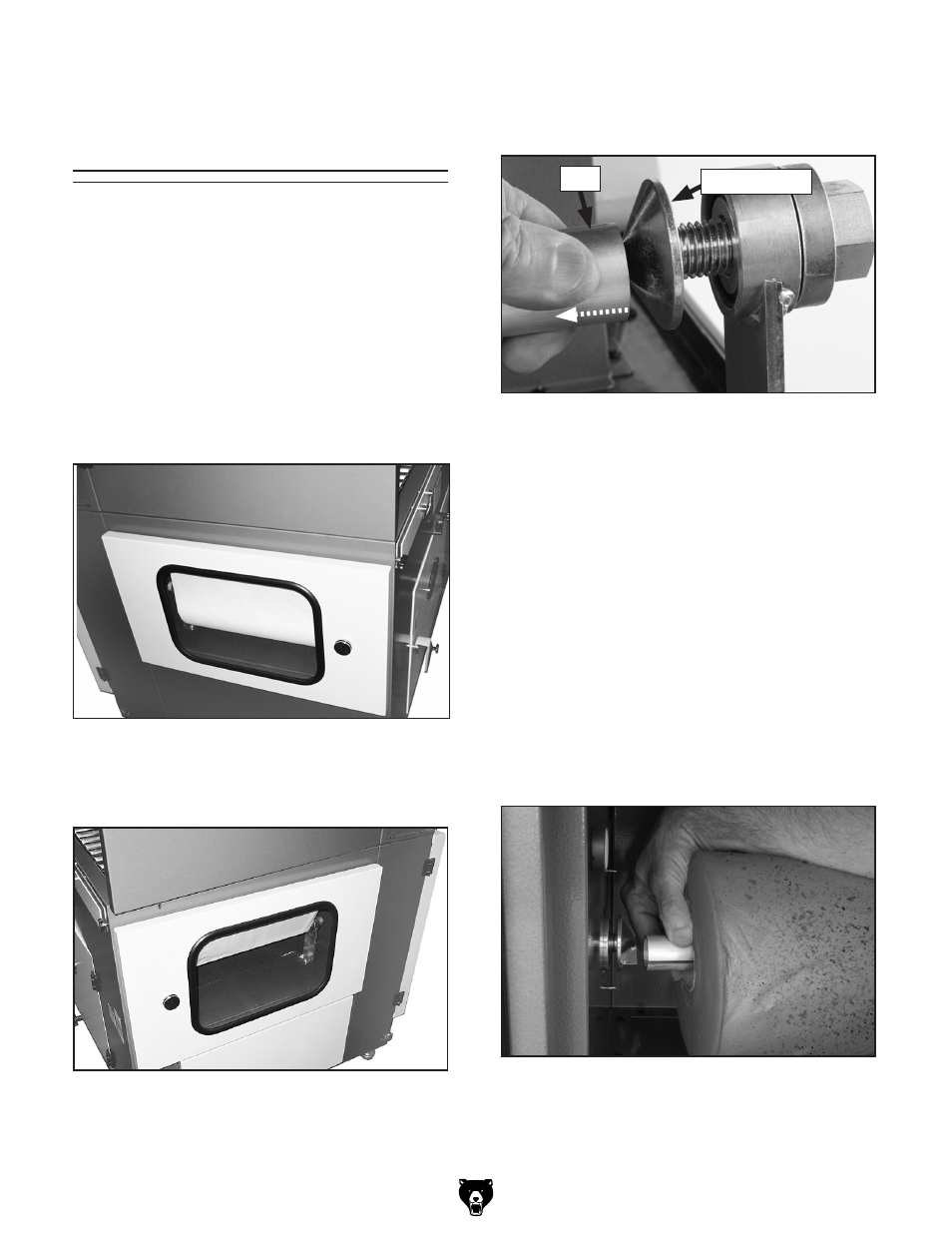

g0649 Welding downdraft table
3. While holding the axle, push on the spring-
loaded spindle and swing the axle out and
away from the spindle cone (
figure 24).
figure 24. removing supply axle.
4. remove the spent filter tube, and slide the
axle into the center of the new filter roll.
5. orient the rolling-filter so when you look
through the window and the filter paper is
pulled up by the conveyor, the filter paper
is next to the glass window. the filter paper
should block the view of the roll as seen in
figure 22.
6. install the axle and paper roll onto the spring
loaded spindle.
7. depress the spring-loaded spindle, swing the
recovery axle out and away from the spindle
cone, remove and discard the used filter roll
(
figure 25).
figure 25. removing recovery axle.
axle
Spindle Cone
Rolling-filter
Replacement
this rolling-type paper filter is the consumable
workhorse filter of your machine. it removes most
of the 10-micron and larger grit, dust, and oily
smoke.
Tools needed Qty
oSha approved respirator .............................. 1
To perform this procedure:
1. put on your respirator and open the rolling-
filter supply cabinet door ( figure 22).
2. open the rolling-filter recovery cabinet door
( figure 23).
figure 22. rolling-filter supply cabinet.
figure 23. rolling-filter recovery cabinet.
