-10-
g0649 Welding downdraft table
SEcTiOn 2: ciRcuiT REQuiREMEnTS
full Load Amperage Draw
amp draw at 220V 3-phase ................... 5 amps
Power Supply circuit Requirements
you MuSt connect your machine to a grounded
circuit that is rated for the amperage given below.
never replace a circuit breaker on an existing cir-
cuit with one of higher amperage without consult-
ing a qualified electrician to ensure compliance
with wiring codes.
if you are unsure about the
wiring codes in your area or you plan to con-
nect your machine to a shared circuit, consult
a qualified electrician.
Minimum Circuit Size (220V 3-phase) ..15 amps
220v 3-Phase
Operation
Extension cords
using extension cords may reduce the life of the
motor. instead, place the machine near a power
source. if you must use an extension cord:
•
use at least a 14 gauge cord that does not
exceed 4 meters in length.
•
Ensure that the extension cord contains a
ground wire and plug pin.
Serious personal injury could occur if you
connect the machine to power before com-
pleting the setup process. DO nOT connect
the machine to the power until instructed
later in this manual.
Electrocution or fire could
result if machine is not
grounded and installed in
compliance with electrical
codes. compliance MuST
be verified by a qualified
electrician!

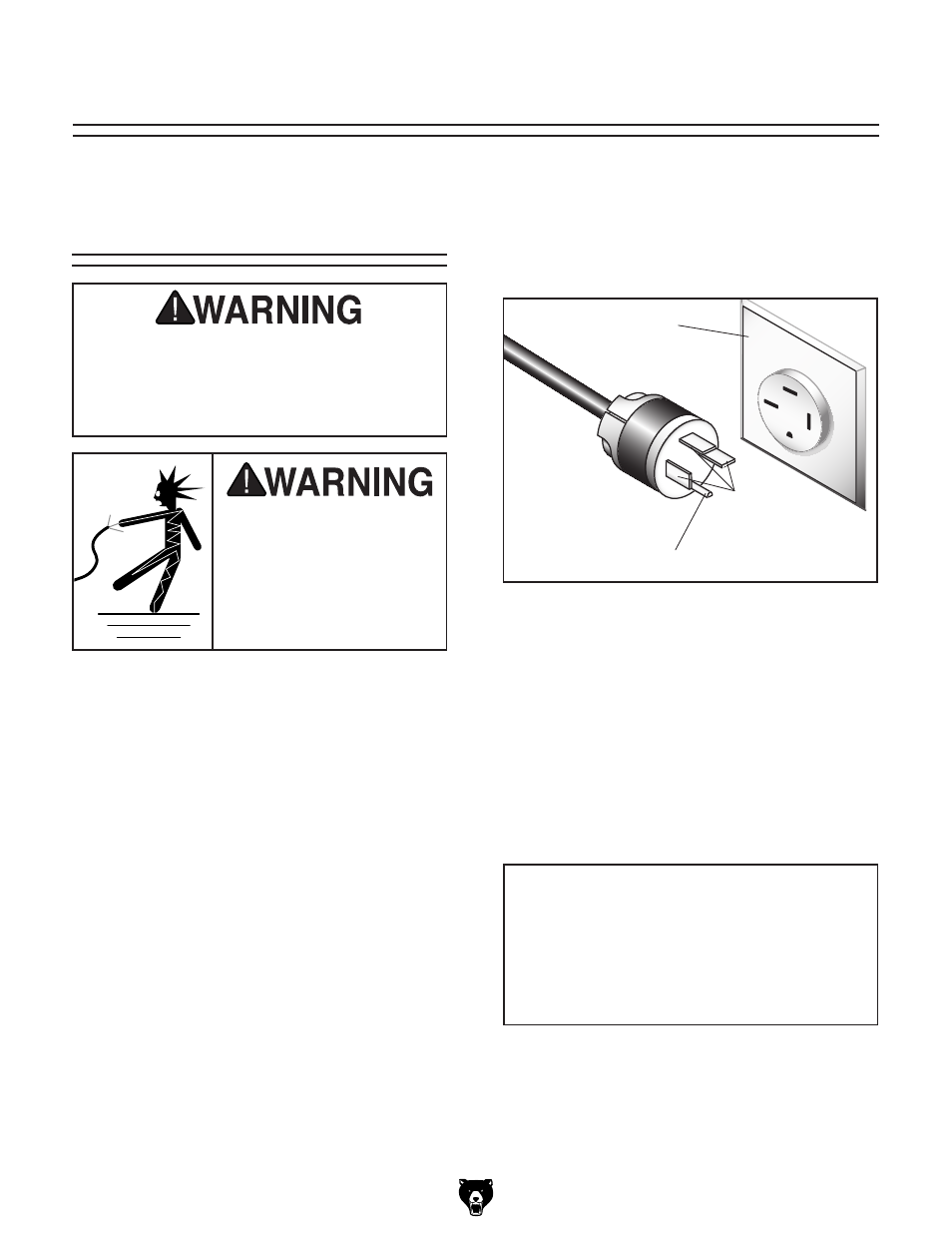

figure 2. nEMa 15-15 plug and receptacle.
Power connection
the power connection device depends on the
type of installed or planned service. We recom-
mend using a nEMa 15-15 plug and receptacle
shown in
figure 2.
8jggZci NOTICE This machine uses sensitive electronics that rely on stable current on all power supply legs. We do not recommend connecting this machine to a phase converter. ignoring this notice may void warranty.
