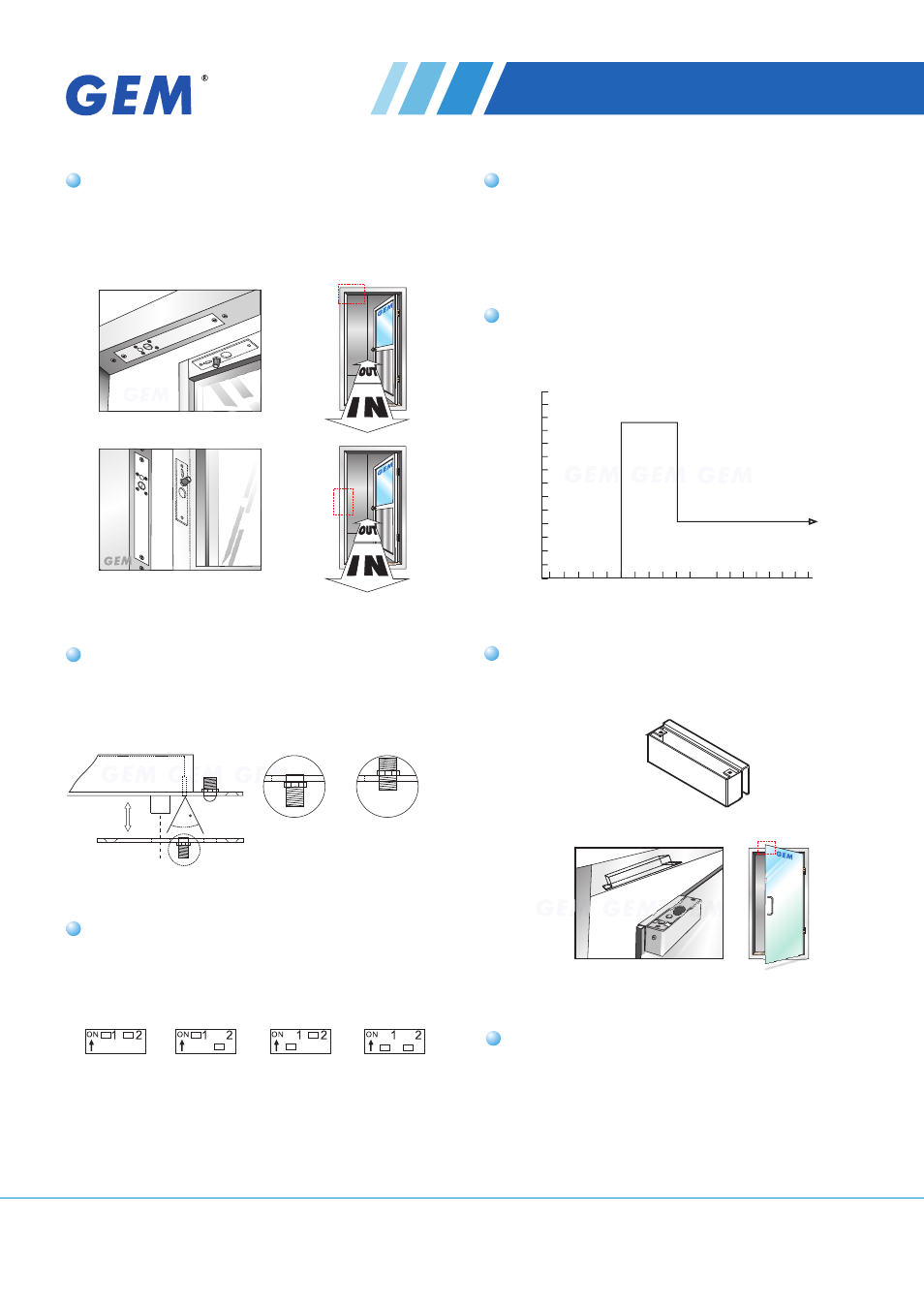

Gianni Industries EB-220-32 - Manual (Page 2)

0 seconds 3 seconds 6 seconds 9 seconds
Relock time setting
45 5 mm maxi
Reed
The brackets UBK-262 are compatible with frameless
glasses doors(Fig. C).
Fig. C
UBK-262 Bracket
For 10 or 12 mm thickness of glass
EB-220 Electric Dropbolt
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
Horizontal or vertical installation Long life solenoids
Adjustable Sensor Optional Accessory
Special designed solenoid for strength and long life
operating lifetime with guaranteed 500,000 operations.
Pull in
Holding
C
u
rr
e
n
t
D
ra
w
(
m
A
)
Time (seconds)
Fig. A Horizontal Installation (Frame Header)
Fig. B Vertical Installation (Side Jamb)
GEM's electric dropbolts can be installed either horizontally
at the top or bottom of the door frame or vertically on the side
of the door frame.
The door close sensor can work up to a range of 5mm. If
there is a wide door gap, a sensor magnet within the strike
plate of the door can be adjusted to improve sensor accuracy.
Energy Saving Design
After the dropbolt is completely locked , the current draw
changes from 0.9A into 0.3A to prolong its lifetime.
Adjustable Time Delay of 0,3,6,9 seconds with 2 way DIP
switch. (Default Value: 0 sec.)
Relock Time Delay
