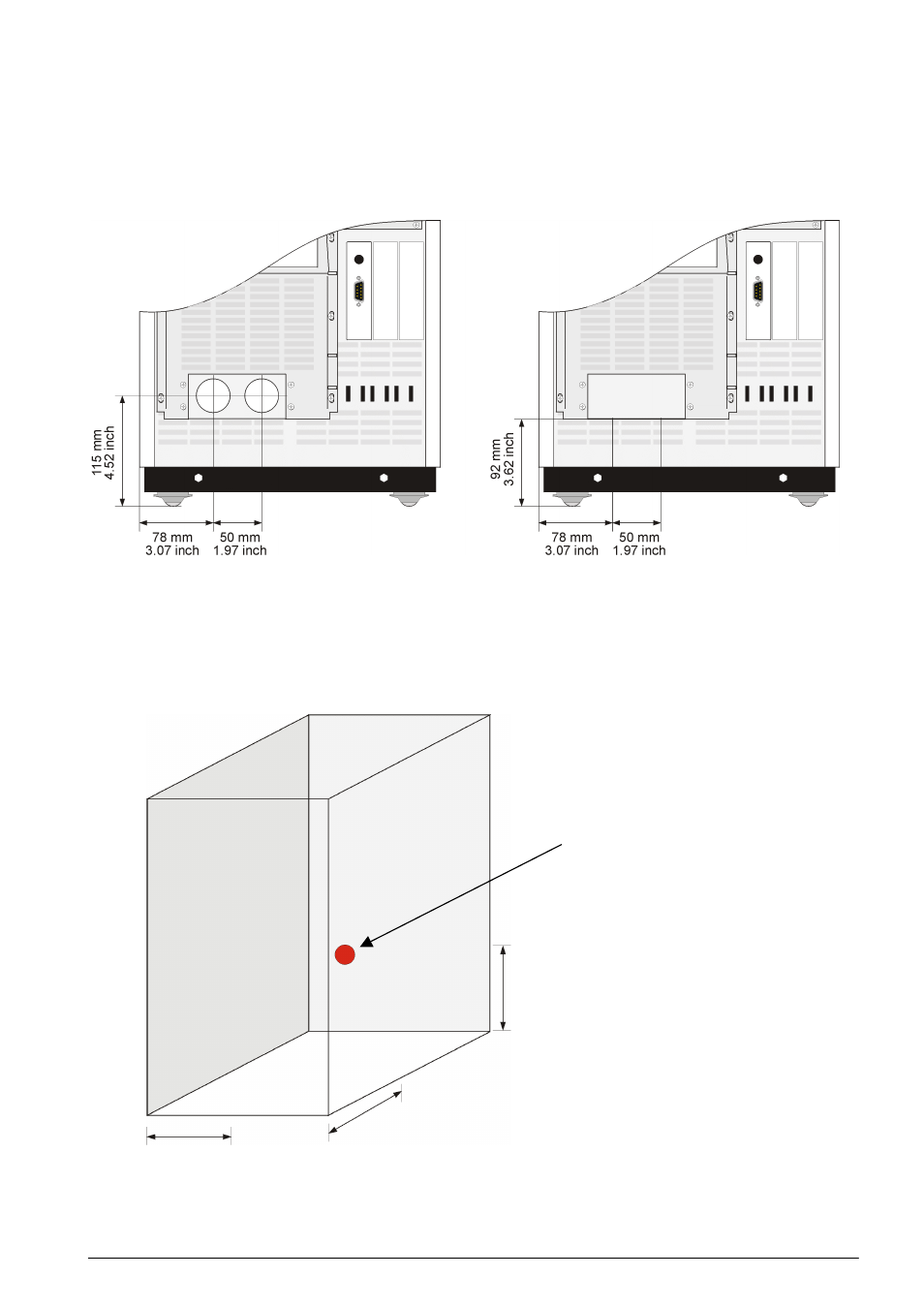

Dimensions Conduit Box
Center of Gravity
UPS cabinet, dimensions hxwxd:
680 x 310 x 710 mm
26.8 x 12.3 x 28.7 inch
Center of gravity, position:
H = 275 mm / 10.8 inch
W = 155 mm / 6.1 inch
D = 300 mm / 11.8 inch
W
D
H
front
Frontal connection
Connection from below
