20
15
AR1362
• Place the front coal centrally in the channel at the front
of the tray. The relationship between the front coal and the
flame baffle is shown, Diagram 16.
16
AR1363
6.5 There are three sizes of coal used. Small x3, medium x4
and large x1. For identification, Diagram 17.
17
AR1379
LARGE MEDIUM SMALL
• Place the single large coal in the central dent of the front
coal resting against the flame baffle, Diagram 18.
9B. ARRANGEMENT OF ThE
FUEl BED COMPONENTS - E-BOX
NOTE: CERAMIC PARTS ARE FRAGIlE. hANDlE wITh CARE
ONlY USE ThE CORRECT TYPE AND QUANTITY OF CERAMIC
COMPONENTS

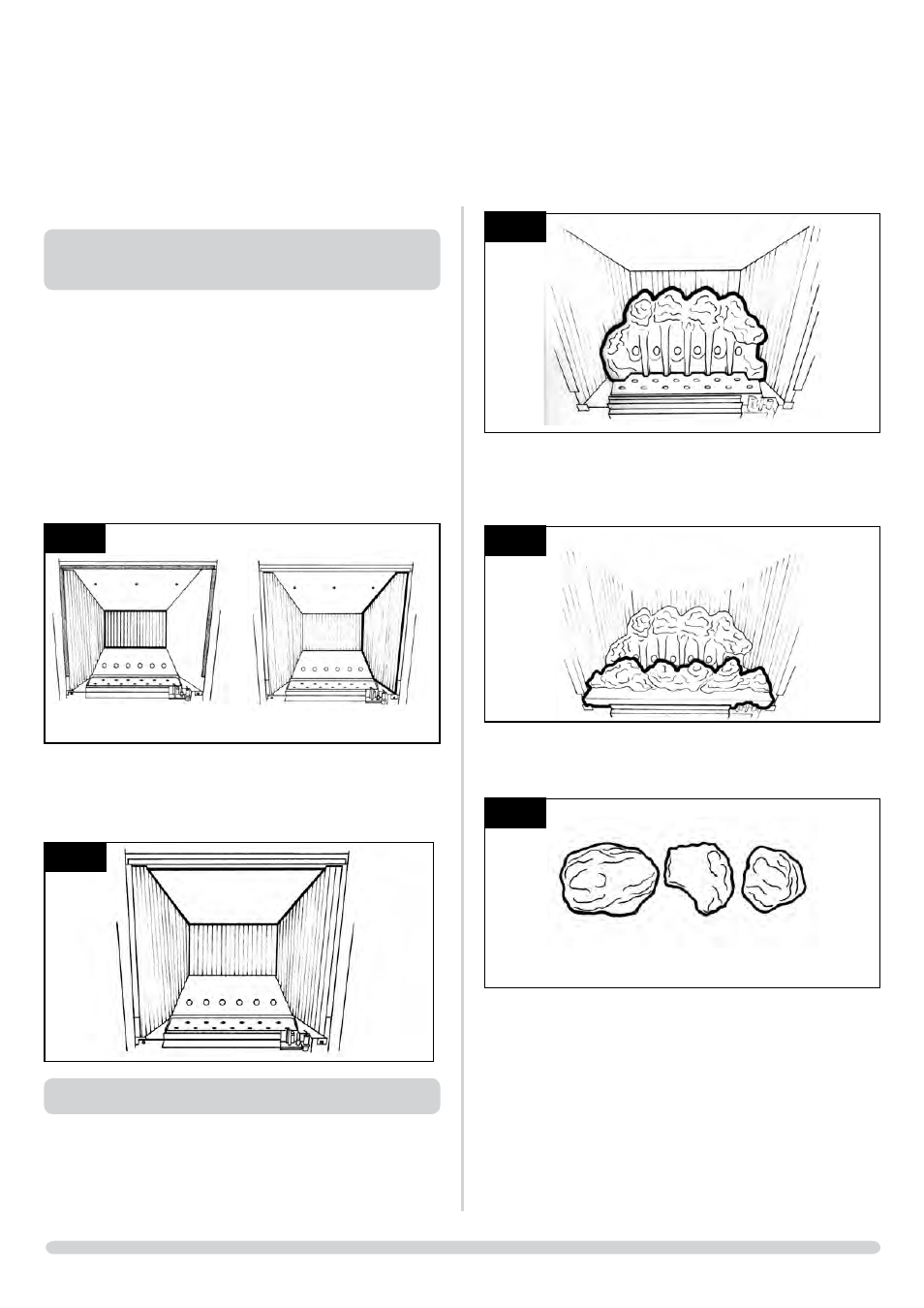

9.2 • Place the rear panel against the rear of the box resting
on the shelf.
• Slide one of the side panels into the box
ensuring it touches the rear panel.
• Gently ease the front edge of the side panel behind the
flange so it lies flat against the wall of the box.
• Repeat with the second side panel, Diagram 13
13
AR1359 AR1360
• Locate the top panel on top of the sides and rear by
lifting it up and forward inside the box.
• Slide it backwards and down behind the side panels
to rest on the rear panel, Diagram 14.
5
AR1426
14
COAl lAYOUT
9.3 • Position the flame baffle centrally on the tray and ensure
the stepped lower edge engages against the rear edge of the
burner skin, Diagram 15
INSTAllATION INSTRUCTIONS
INSTAllATION
