-28-
model g0651/g0652 (mfg. since 1/10)
21. Fasten the on/oFF switch to the left end
of the front rail with two m8-1.25 x 12 hex
bolts, 8mm flat washers and 8mm lock wash-
ers, then insert the switch disabling lock, as
shown in
Figure 25.

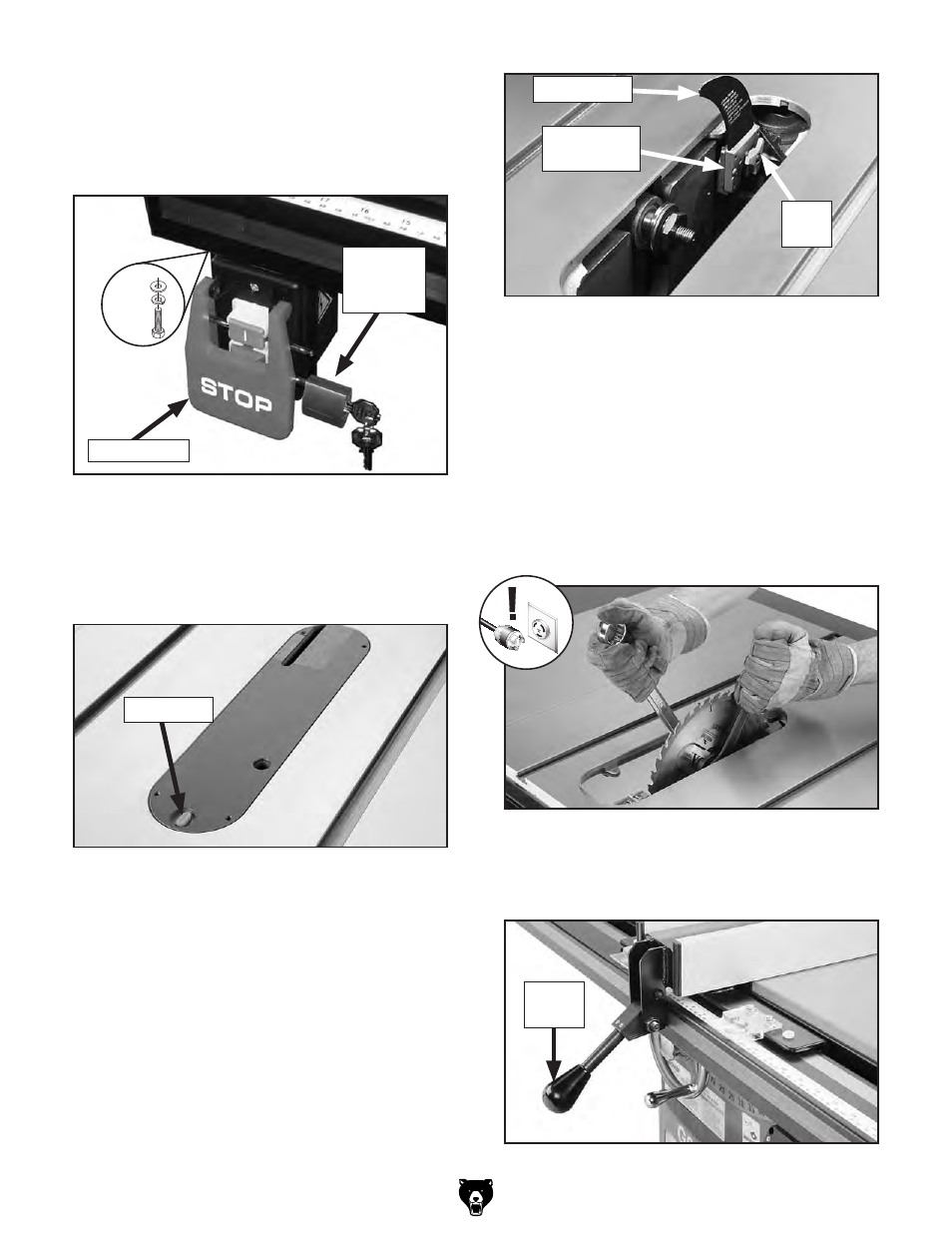

Figure 25. switch installed.
x 2
22. turn the lock knob that secures the table
insert so it is parallel to the inner slot, as
shown in
Figure 26, then remove the insert
and set it aside.
Figure 26. insert lock knob unlocked.
lock Knob
23. raise the arbor all the way up and set the
arbor angle to 0°.
24. unthread the lock knob on the riving knife/
blade guard mounting block ( Figure 27) sev-
eral turns. push the riving knife away from the
knob, then lift the riving knife up to remove
it.
Note: The riving knife is installed for shipping
purposes. Two pins in the mounting block
insert into matching slots on the riving knife,
keeping it secured.
Figure 27. riving knife installed.
lock
Knob
riving Knife
mounting
Block
Figure 28. example of securing blade.
25. remove the arbor nut and arbor flange from
the arbor, slide on the included 10" saw
blade, making sure the teeth face the front
of the saw, then install the arbor flange and
arbor nut onto the blade.
26. put on a pair of heavy leather gloves and
use the included arbor wrenches to tighten
the arbor nut (turn clockwise to tighten), as
shown in
Figure 28, then lower the blade all
the way down.
27. install the fence knob onto the fence, as
shown in Figure 29.
Figure 29. Fence knob installed.
Fence
Knob
stop paddle
switch
disabling
lock
