model g0651/g0652 (mfg. since 1/10)
-25-
Assembly
To assemble the extension table and outfeed
tables:
1. Fasten the 91 1 /
2
" front rail onto the table saw
with four m8-1.25 x 25 flat head screws, as
shown in
Figure 13. also, secure the far
left side of the rail with one m8-1.25 x 25
flat head screw, 8mm lock washer, and an
m8-1.25 hex nut.
3. secure the metal plates to the table with
m8-1.25 x 25 flat head screws on the right
side of the table saw cabinet, as shown in
Figure 15, then thread two m8-1.25 x 12 hex
bolts with 8mm flat washers into the metal
plates. do not fully tighten the bolts.

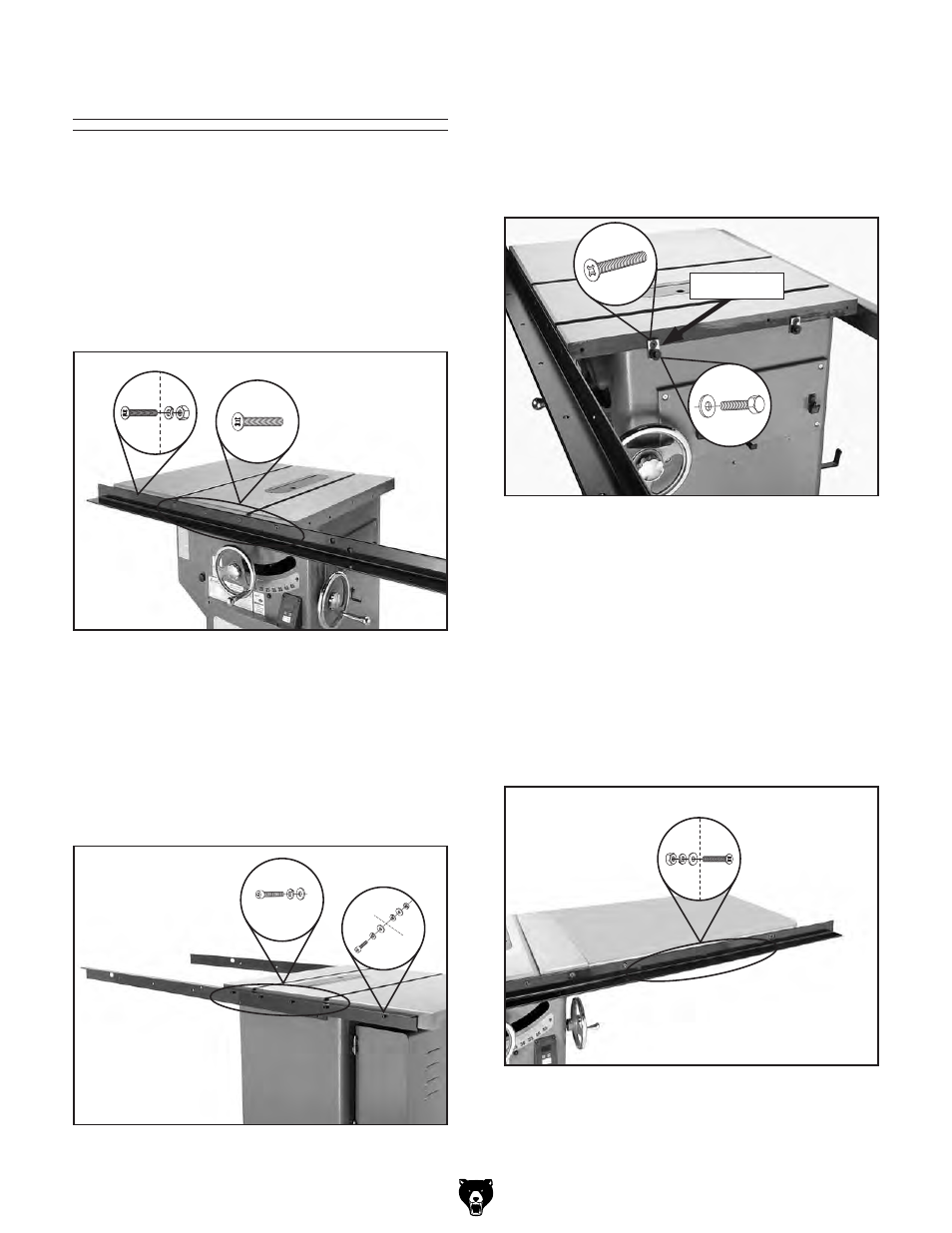

Figure 13. Front rail installed.
2. Fasten the 79" rear rail to the table with four
m8-1.25 x 25 cap screws, 8mm lock washers,
and 8mm flat washers, as shown in
Figure
14. secure the left side of the rail to the table
with one m8-1.25 x 25 cap screw, two 8mm
flat washers, two 8mm lock washers, and one
m8-1.25 hex nut.
x 4
Figure 14. rear rail installed.
x 4
Figure 15. metal plates installed.
4. With the help of an assistant, place the exten-
sion table between the rails and slide the
table slots over the hex bolts installed in
Step
3.
5. While an assistant holds the extension table,
fasten the 91 1 /
2
" front rail to the extension
table with (3) m8-1.25 x 25 flat head screws,
8mm flat washers, 8mm lock washers, and
m8-1.25 hex nuts (see
Figure 16). Finger-
tighten for now.
Figure 16. Front rail/table fastener locations.
x 3
x 2
x 2
metal plate
