Installation and Upgrade
right corner of the hard disk. Remove this screw and carefully pull the hard disk module
from the connector.

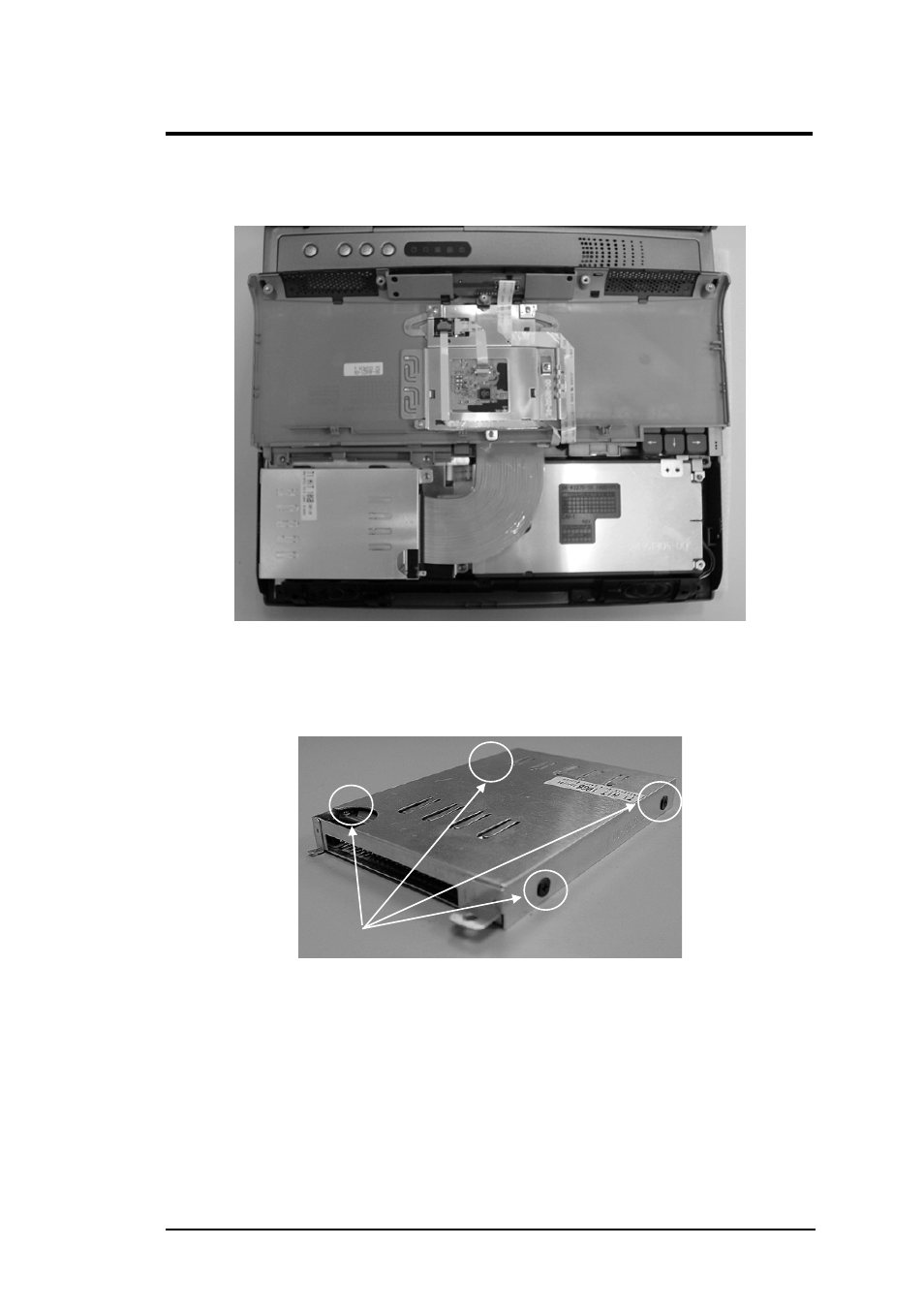

Figure 2-10 The disassembly of Hard Disk Drive
5. Remove four screws of frame HDD bracket plate. Two ones of them are at the same side,
and others are at the other sides.
screws
Figure 2-11 Screws Locations of the frame HDD bracket plate
6. Plug in the hard disk module to the connector and secure the screw on the upper right
corner of the hard disk.
7. Place back the palm rest and secure those screws
FIC A360 Service Manual 2-17
