Troubleshooting and Repair

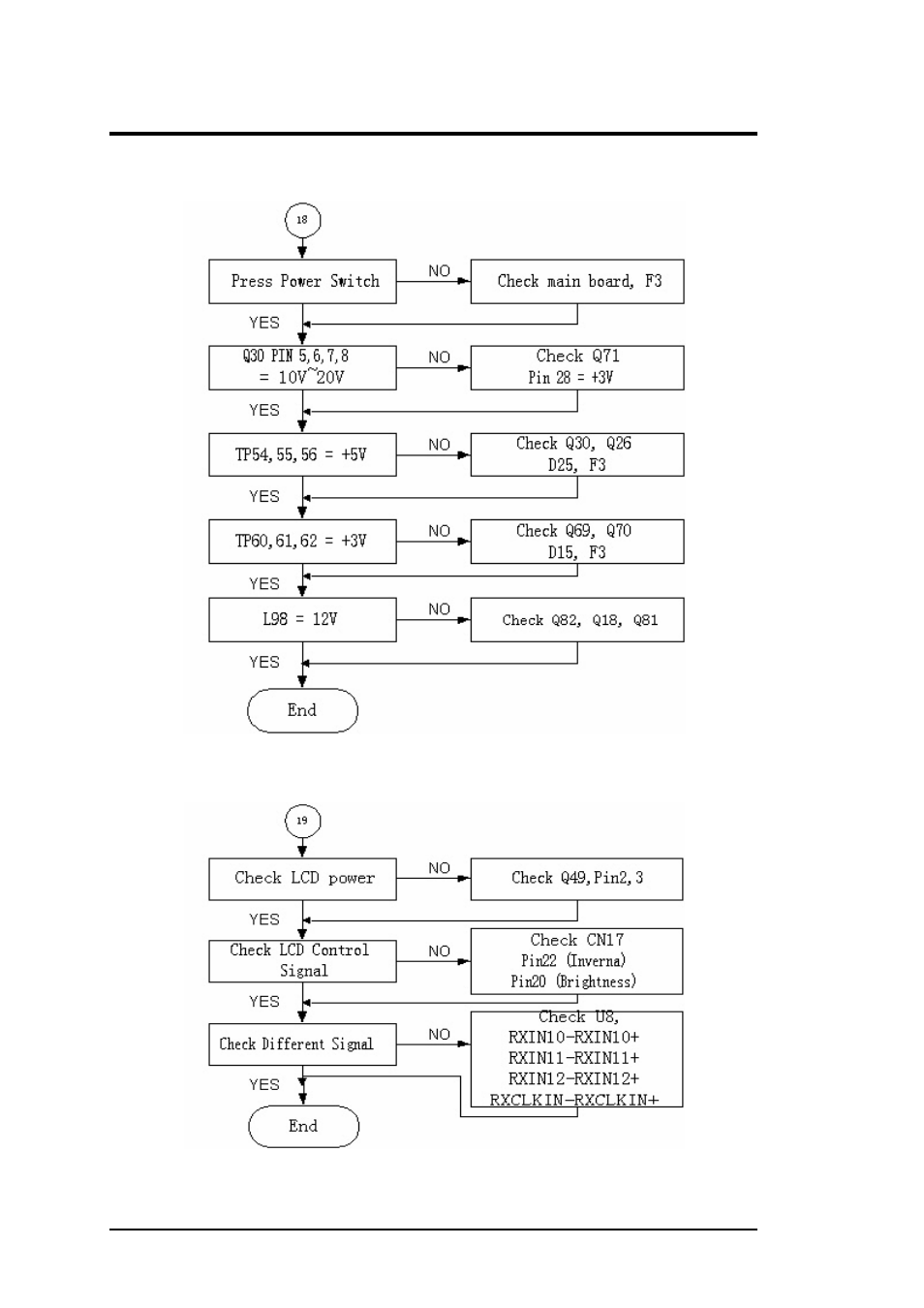

6.4.18 DC-DC Power Check

Figure 6-17

DC-DC Power Check

6.4.19 LCD Panel Interface Check

Figure 6-18

LCD Panel Interface Check
