Maintenance & Disassembly
5.3 Required Tools and Equipment
To troubleshoot and repair PC systems properly, you need a few basic tools:
• Tweezers
• Small flat-blade screwdriver
• Small Cross screwdriver
• Regular size Cross screwdriver
• Small Hex-bolt screwdriver
L
All boards, options, and peripherals contain components that are sensitive to
static electricity. When handling any of these items, use wrist or ankle grounding
straps and grounded working mats. When moving or storing items, use the anti-
static bags supplied with the items.
5.4 Notebook
Field-Replaceable Parts and Assemblies
The notebook contains two major assemblies: The Cover Display LCD Assembly and the
System Unit Assembly.
Cover Display
LCD Assembly
System Unit
Assembly
n
Color LCD Panel
o
Keyboard
p
Integrated
Microphone
q
Power Status
LED Indicator
r
Status LED Indicator
s
Easy Buttons
t
Power Button
u
Glidepad Pointing
Device

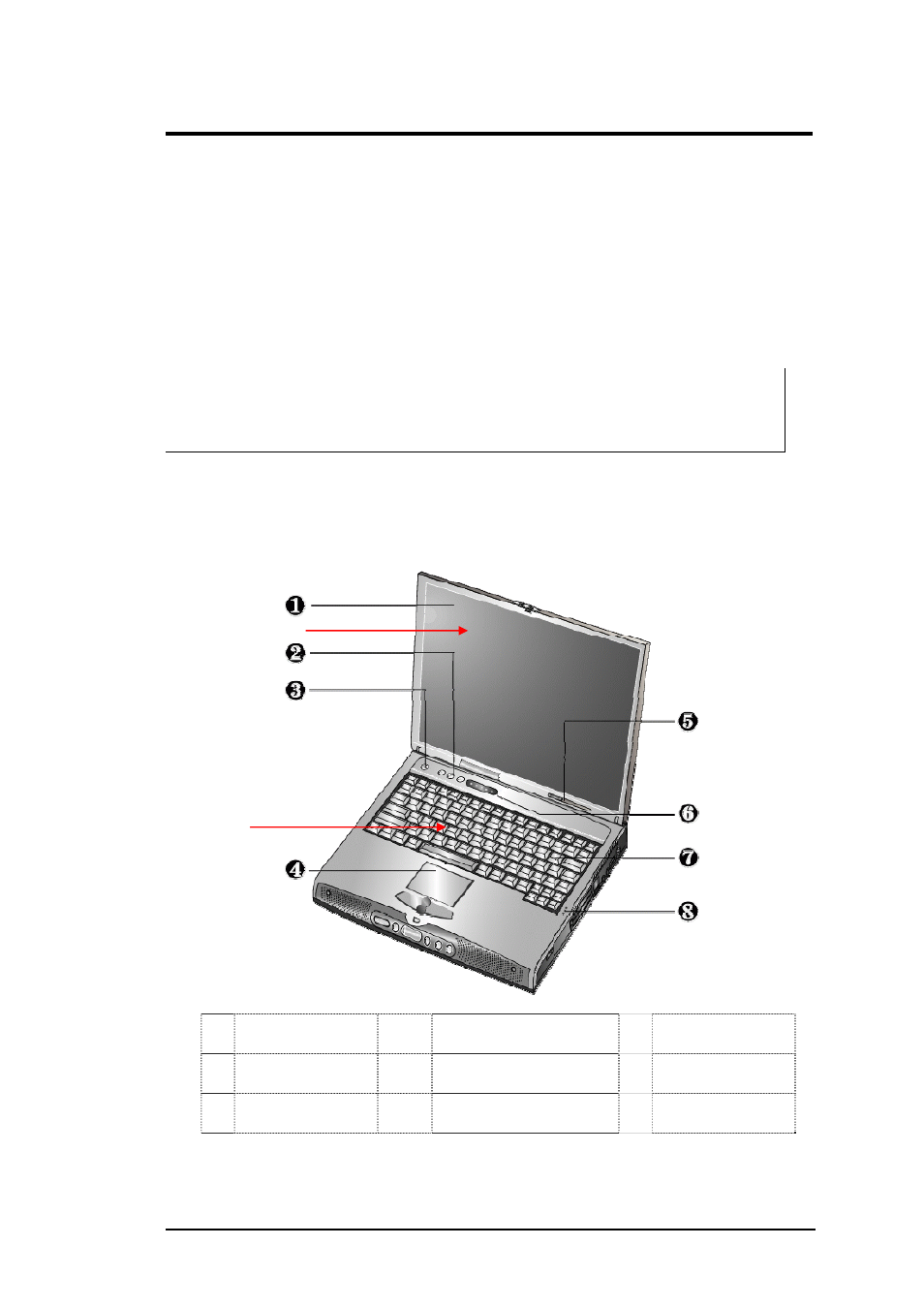

Figure 5-1
Cover Display and System Unit Assembly
