Interface

5-122

C141-E104-02EN

5.6.4 Power-on and reset

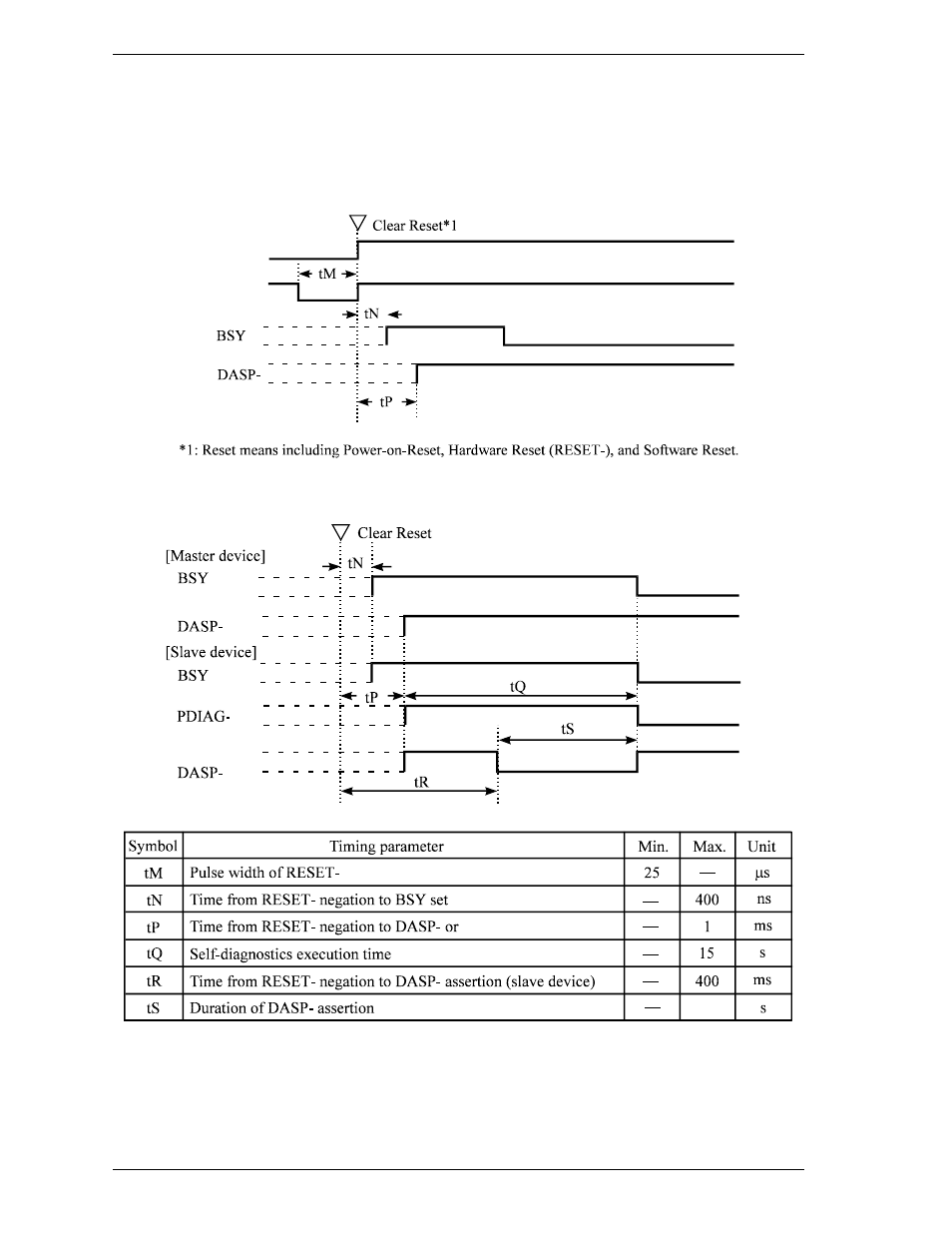

Figure 5.22 shows power-on and reset (hardware and software reset) timing.

(1) Only master device is present

(2) Master and slave devices are present (2-drives configuration)

Figure 5.22 Power on Reset Timing

31

Power-on Reset

RESET–

PDIAG- negation
