5.6 Timing

C141-E104-02EN

5-109

5.6.2 Multiword DMA data transfer

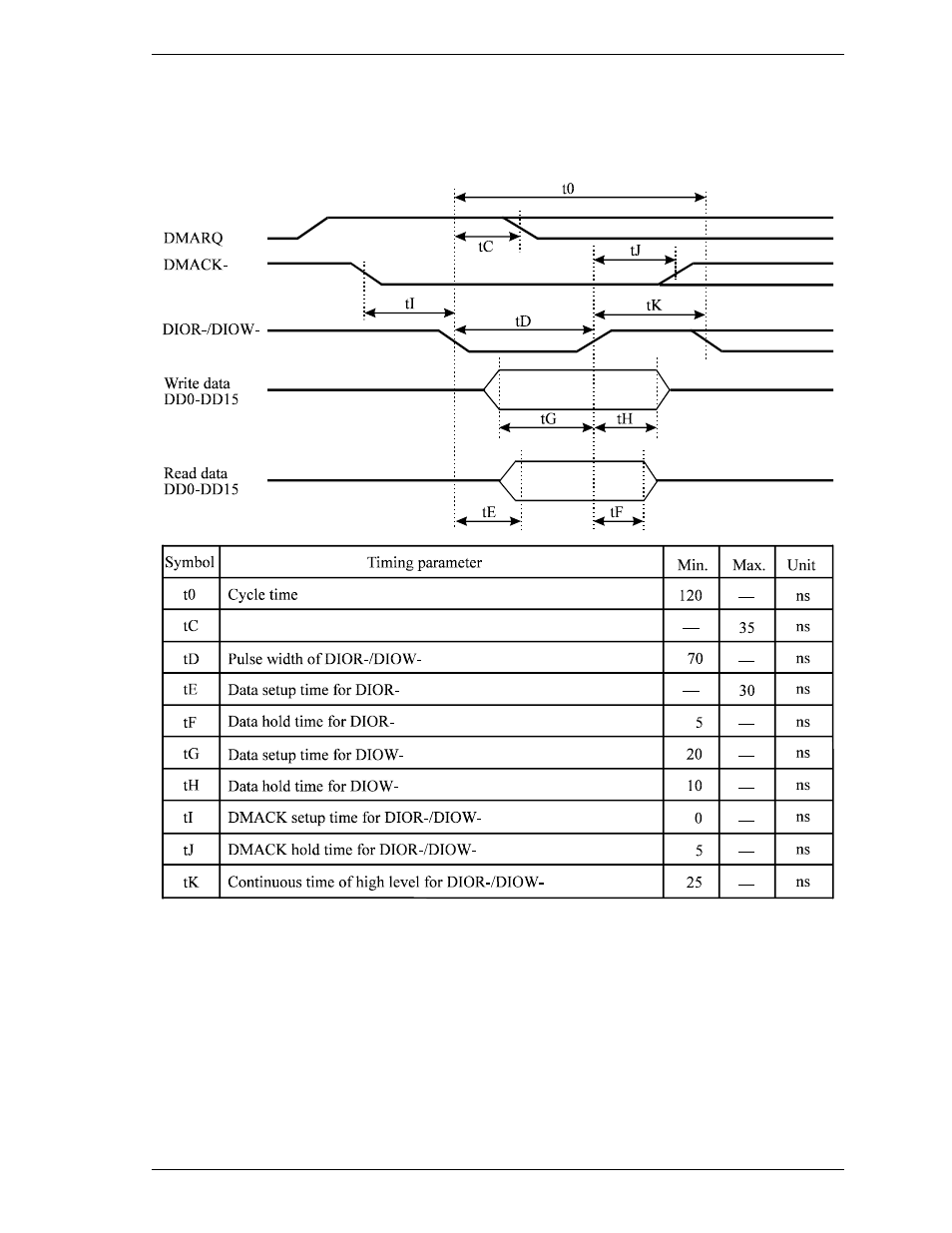

Figure 5.11 shows the multiword DMA data transfer timing between the device
and the host system.

Delay time from DIOR-/DIOW- assertion to DMARQ negation

Figure 5.11 Multiword DMA data transfer timing (mode 2)
