McQuay Micro Tech Open Protocol Driver Manual

Page 14 of 43

FieldServer Technologies 1991 Tarob Court Milpitas, California 95035 USA Web: www.fieldserver.com

Tel: (408) 262 2299 Fax: (408) 262 2269 Toll Free: (888) 509 1970 email: [email protected]

4

HARDWARE CONNECTIONS

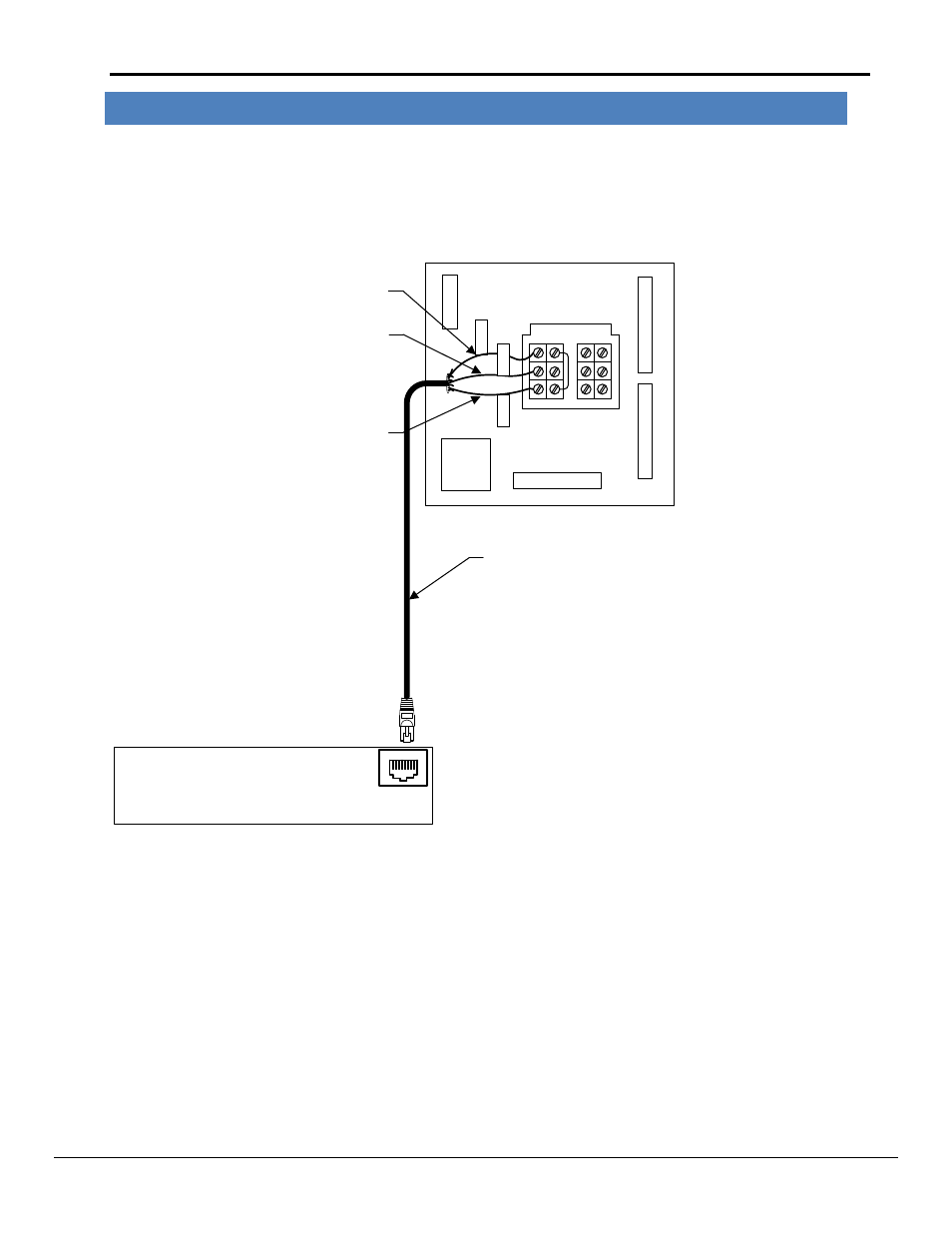

The FieldServer is connected to the McQuay device

as shown below.

Configure the McQuay device according to manufacturer’s instructions.

FS-8917-16

RJ45-04

BLUE/WHITE

RJ45-08

ORANGE/WHITE

SERIES 200 CONTROLLER

F

S

-C

O

M

RJ45-01

BROWN

F

S

-T

x

/+

F

S

-R

x

/-

FieldServer

Connect to one of the RS-232

Ports on the FieldServer

P1

1

8
