10
FRP011
DRAIN TUBE
SIDE VIEW
FRONT VIEW
WALL SLEEVE
OPTIONAL AREA
PREFERRED AREA-
NO FOAM INSULATION
IF THE DRAIN MUST BE
LOCATED IN THE OPTIONAL
AREA, THE FOAM INSULATION
MUST BE CUT AWAY AND
REMOVED TO ALLOW ACCESS
TO THE DRAIN.
NUT
MOUNTING
PLATE
GASKET
SCREW
3"

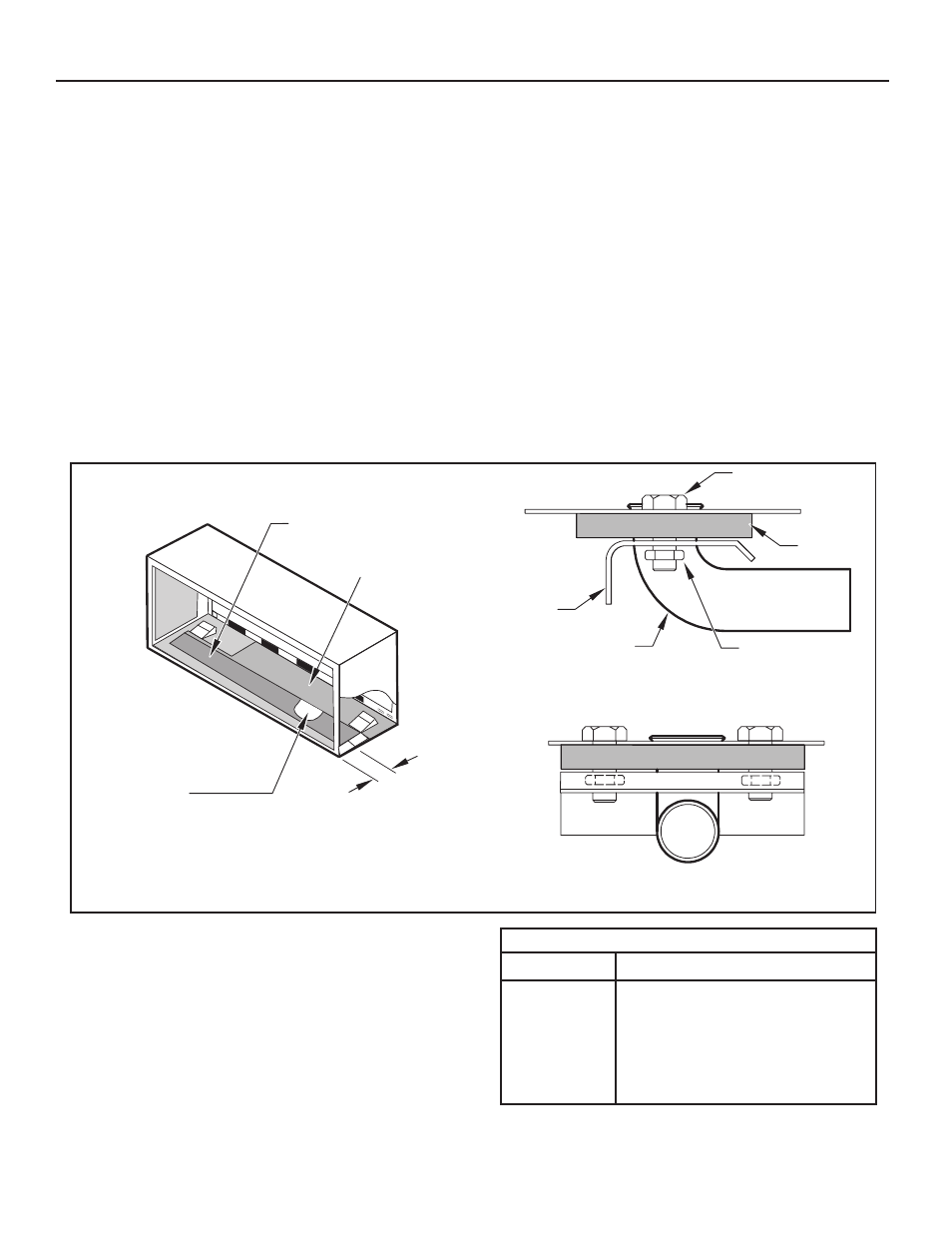

Figure 11
Drain Kit Location and Installation
PXDR10
QUANTITY DESCRIPTION
2
1
1
3
4
2
2
COVER PLATES
MOUNTING PLATE
DRAIN TUBE
MOUNTING PLATE GASKET
#10 X ½” SHEET METAL SCREWS
#10-24 X ½ ” MACH. SCREWS
#10-24 X ½" LOCKNUTS
3. Remove.the.backing.from.the.gasket.and.mount.it.on.the.flat.side.
of.the.mounting.plate...(See.Figure.12,.Page.11)...Insert.the.drain.
tube.through.the.hole.in.the.gasket.and.mounting.plate.so.the.tube.
flange.will.be.against.the.wall.sleeve.
4. Position.the.assembly.beneath.the.drilled.holes.and.secure.it.with.
#10-24.x.½".machine.screws.and.lock.nuts.provided...Seal.the.tops.
of.the.screws.with.silicone.caulking..
5. Use.½".I.D..copper.tube,.PVC.pipe,.or.vinyl.hose.(obtained.locally).
to.connect.the.internal.drain.tube.to.the.drain.system.in.the.building.
6. Referring.to.Figure.12,.Detail.A,.Page.11,.locate.and.assemble.the.
(2).two.cover.plates.and.gaskets.over.the.drain.holes.at.the.rear.
of.the.wall.sleeve...Attach.them.with.the.#10.sheet.metal.screws.
provided...Make.certain.that.the.four.overflow.slots.at.the.rear.of.
the.wall.sleeve.are.not.blocked.(See.drawing.of.the.back.of.the.
sleeve.Figure.12,.Page.11).
7. If.a.deep.wall.extension.(PDXWSEXT).is.used,.after.installing.the.
field.supplied.flashing,.caulk.as.required...Be.sure.to.caulk.around.
the.flashing.and.the.wall.sleeve.where.the.hole.was.drilled.for.the.
drain.tube..
PXDR10 Drain Kit Installation
Instructions (optional for new
construction)
NOTE:. Determine.whether.drain.will.be.located.within.the.wall,.on.the.
indoor.side,.or.will.drain.to.the.exterior.of.the.building...Follow.
appropriate.instructions.below.depending.on.your.particular.
type.of.installation.
Internal Drain
NOTE:. If.installing.an.internal.drain,.you.MUST.install.a.drain.kit.on.
the.wall.sleeve.before.the.wall.sleeve.is.installed.
1. Refer.to.Figure.11.and.locate.the.drain.within.the.“Preferred”.
area.of.best.drainage...Maintain.at.least.a.½”.clearance.from.the.
embossed.area.
2. Using.the.mounting.plate.with.the.½”.hole.as.a.template,.mark.
and.drill.two,.3/16”.mounting.holes.and.a.½”.drain.hole.in.the.
sleeve.bottom.
