Appendix A Server Views A-5
■ System fault location

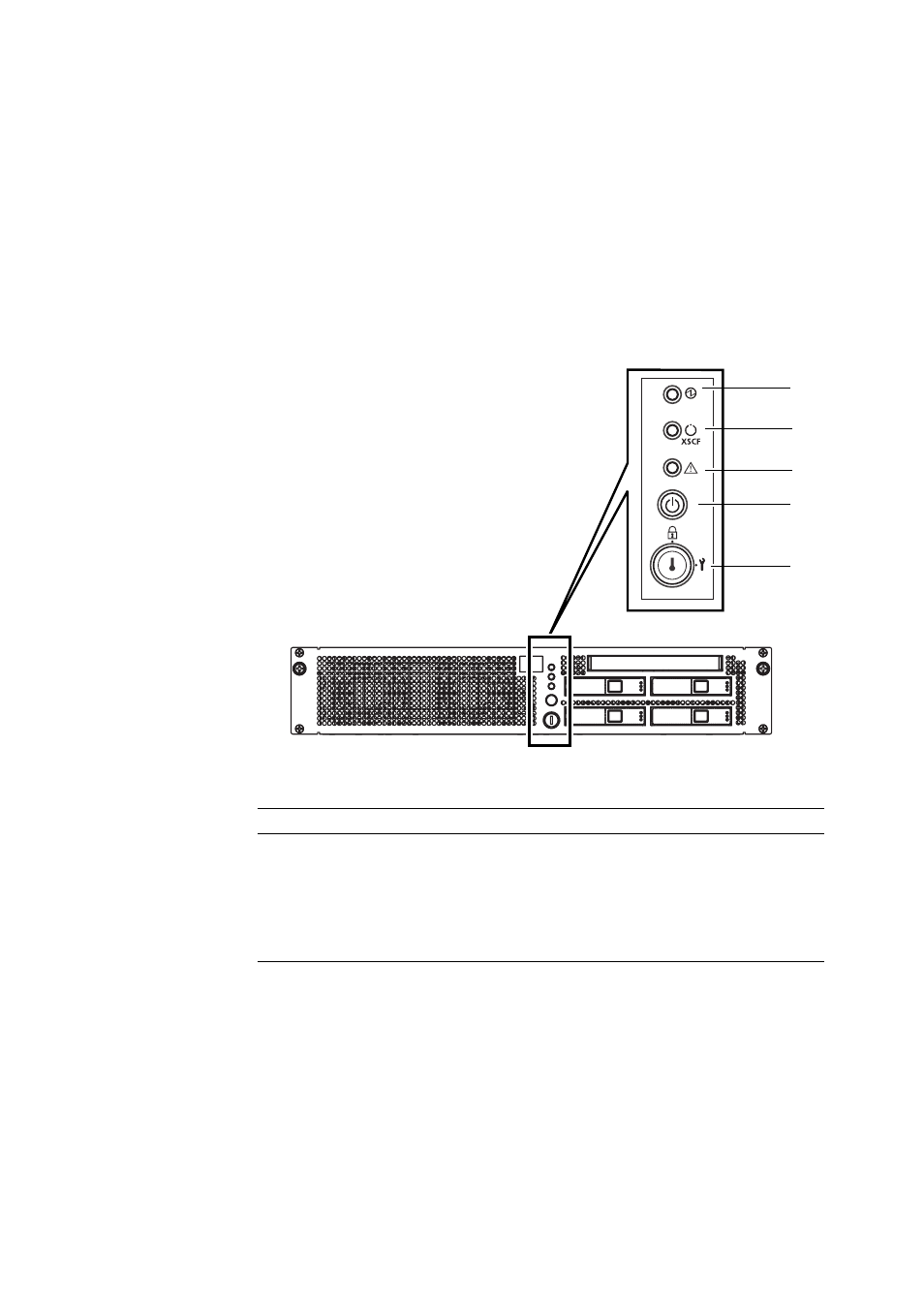

FIGURE A-4 shows the operator panel of the server.
FIGURE A-4 Operator Panel Location
During startup, the firmware toggles the front panel LEDs on and off to confirm that
each one is working correctly. After that, the front panel LEDs operate as described
in
TABLE A-1 .
Location number Component
1 POWER LED
2 XSCF STANDBY LED
3 CHECK LED
4 Power button
5 Mode switch (key switch)
1
2
3
4
5
