A-2 SPARC Enterprise M3000 Server Installation Guide • January 2009

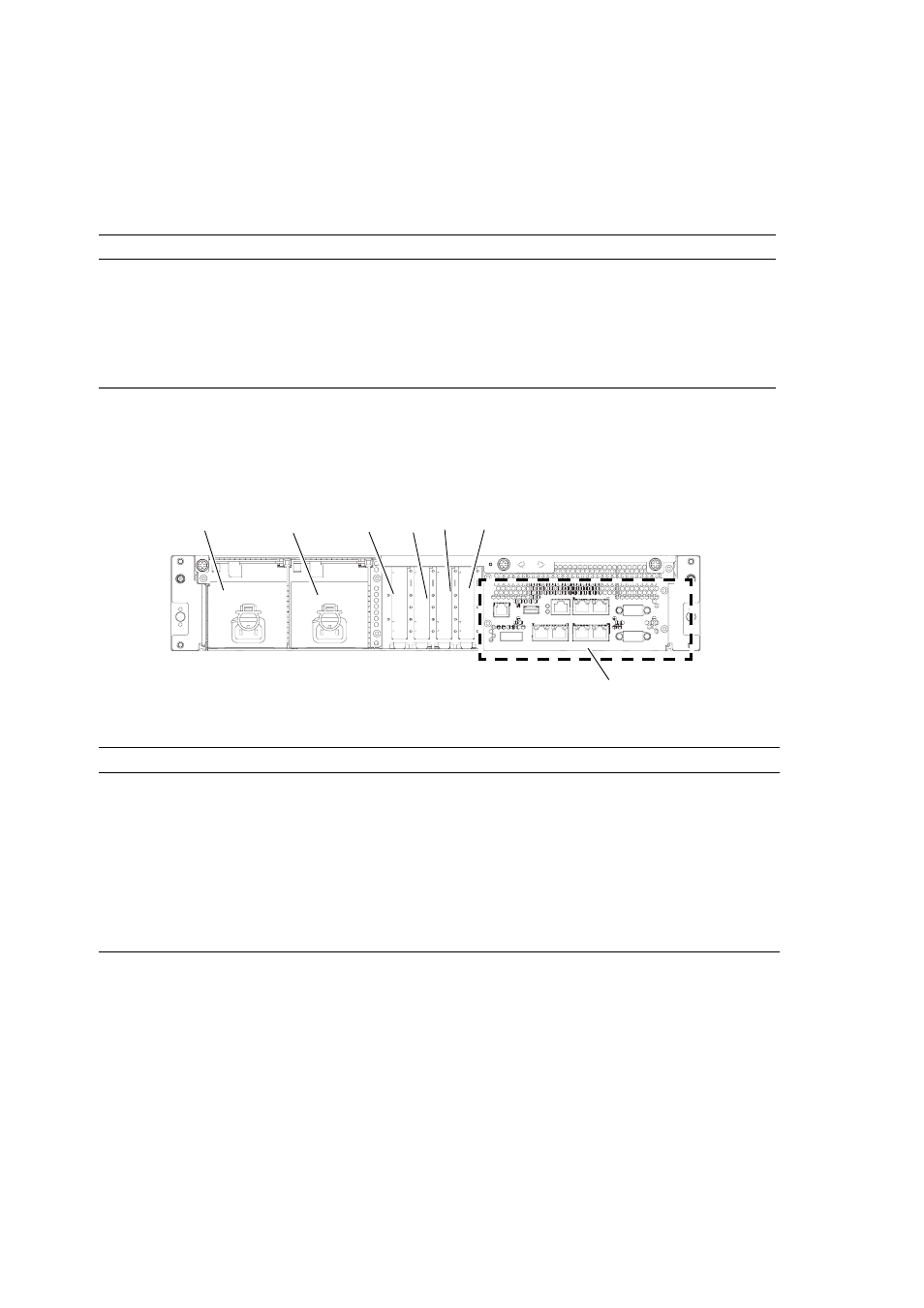

FIGURE A-2 shows a rear view of the server.
FIGURE A-2 Server (Rear View)
4 CD-RW/DVD-RW drive unit DVDU
5 Hard disk drive HDD#0
6 Hard disk drive HDD#1
7 Hard disk drive HDD#2
8 Hard disk drive HDD#3
Location number Name Abbreviation
1 Power supply unit PSU#1
2 Power supply unit PSU#0
3 PCI slot PCI#3
4 PCI slot PCI#2
5 PCI slot PCI#1
6 PCI slot PCI#0
7 Rear panel
Location number Name Abbreviation
1 2 3 4 5 6
7
