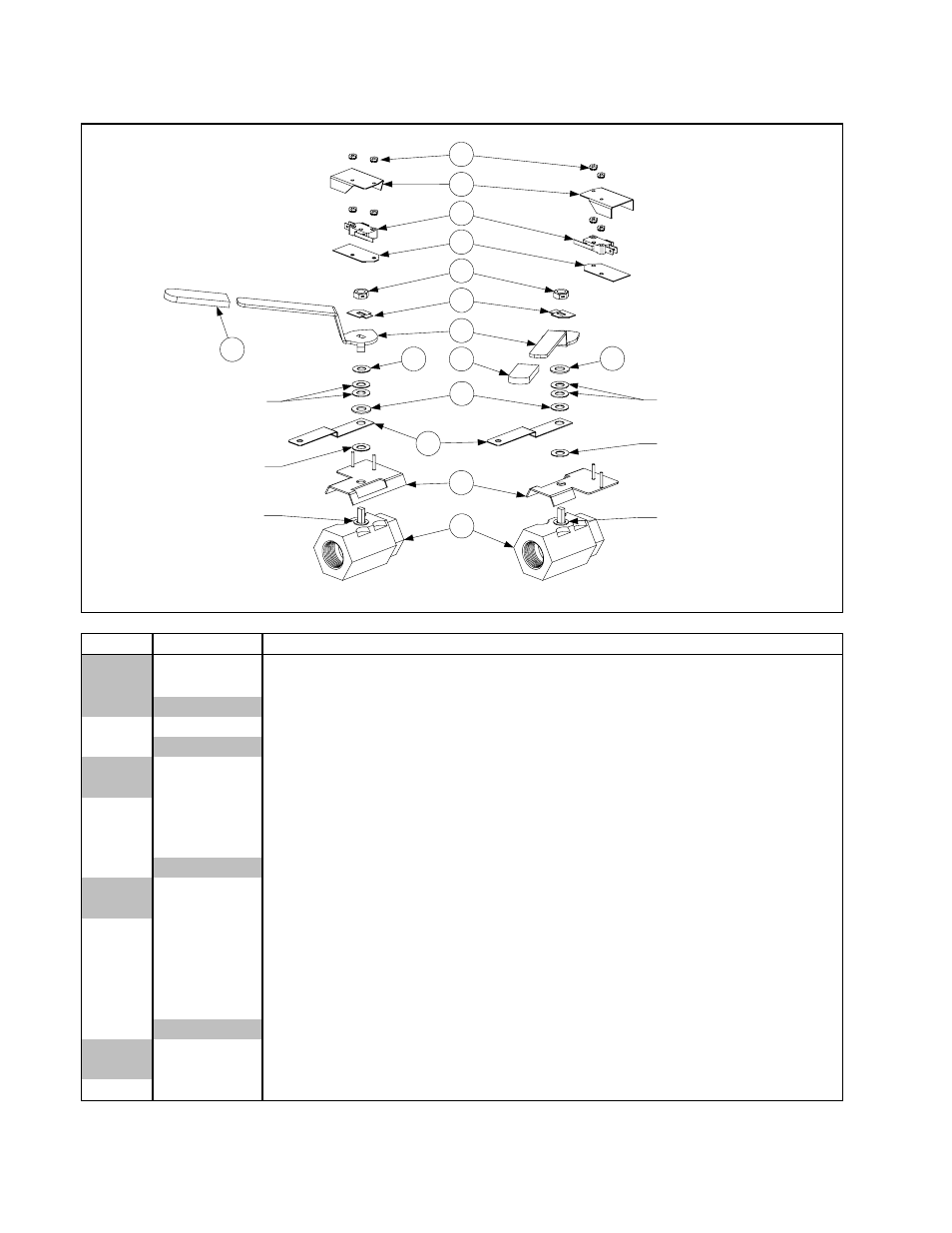

2.12.3 FMH50 Dual Vat (1-Inch) Valve Assemblies
806-7432SP 806-7433SP
2
13
3
Plastic Washer
(part of Item 1)
Plastic Washer
(part of Item 1)
1
4
5
6
8
7
7
9
10
11
12
NOTES: Compression washers must
be turned face to face and lock nut
(Item 9) must be torqued to 60 ± 10
inch-pounds.
Item 3 does not come with 806-7432SP
or 806-7433SP.
Steel Flat Washer
(part of Item 1)
Compression Washers
(part of Item 1)
Steel Flat Washer
(part of Item 1)
Compression Washers
(part of Item 1)
5
ITEM PART # COMPONENT
806-7433SP Complete Assembly, Left (does not include Items 3 and 8)
806-7432SP Complete Assembly, Right (does not include Items 3 and 8)
Components
1 810-1338 Drain Valve, 1-inch NPT Inlet and Outlet, Dual Vat
2 Bracket, Drain Valve Microswitch
106-2671 Left (used in 806-7433SP)
106-2672 Right (used in 806-7432SP)
3 900-2355 Bracket, DV Drain Valve
4 809-0196 Washer, ⅜-inch Flat
5 810-1165 Washer, DV Drain Valve Teflon
6 Handle, DV Drain Valve
201-3916 Left (used in 806-7433SP)
202-3916 Right (used in 806-7432SP)
7 814-0047 Sleeve, Red Valve Handle
8 900-2934 Retainer, ⅜-inch Nut
9 809-0539 Nut, 2-way Lock, ⅜-16
10 816-0220 Insulation, RF Switch
11 807-2103 Microswitch, Lever Activated
12 Cover, Drain Safety Switch
901-2348 Left (used in 806-7433SP)
902-2348 Right (used in 806-7432SP)
13 826-1366 Nut, Keps, 4–40, w/external teeth (Pkg. of 25)
