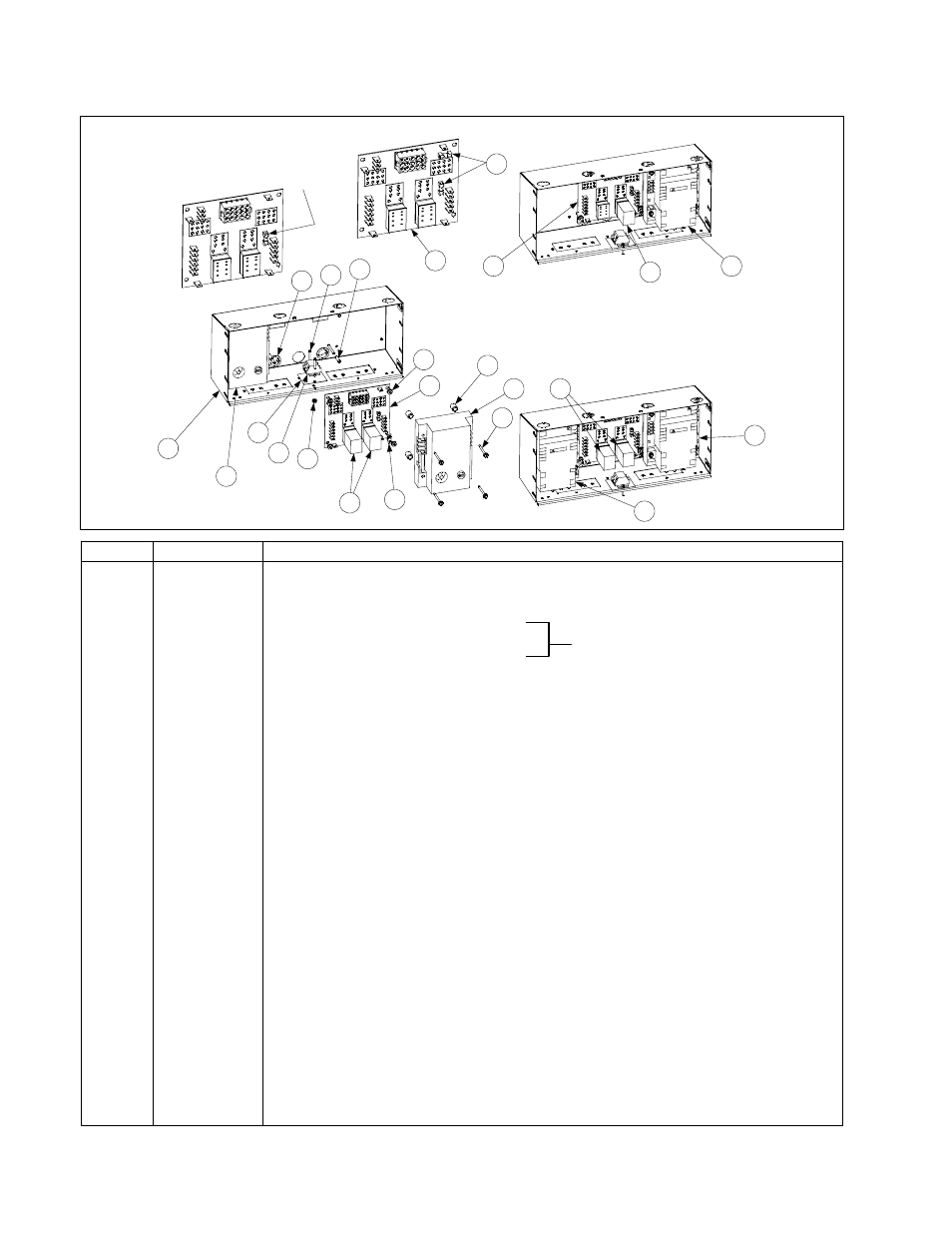

2.7 Component Box Assemblies and Associated Component Parts
IFB 806-3398 (Discontinued) has only one
fuse. If used with 807-3365 or 807-3366
modules, an in-line fuse should be added
between the module and the board.
Replaced by 106-0386
Full vat units using one 807-3366 module
(Item 3) require only one latch relay (Item 5).
Full or dual vat units using two 807-1006,
807-2971, or 807-3365 modules require a
latch relay (Item 5) for each module.
IFB 106-0386 (Item 7) has two
fuses and may be used with any
of the ignition modules.
1
2
8
9
10
12
11
13
14
6
5
15
16
17
2
3
4
4
7
7
5
5
6
ITEM PART # COMPONENT
1 200-5996 Box Assembly, One-Piece Component
2 807-1006 Ignition Module, Full or Dual Vat (fuse-protected)
* 807-2971 Ignition Module, Full or Dual Vat (fuse-protected) (Australian units only)
3 807-3366 Ignition Module, Full Vat (unfused)
4 807-3365 Ignition Module, Dual Vat (unfused) use 1 wire 1 connector ign. cable 826-2024
5 807-0833 Relay, 12V 5Amp Latch
(use Relay Clip 810-2243 to secure relay in place)
* 807-0834 Relay, 12V 5Amp Basket Lift
(use Relay Clip 810-2243 to secure relay in place)
6 807-3843 Fuse, 3A 250V Subminature
7 106-0386 Interface Board (double fuse-protected)(use w/ 807-3365, 807-1006 or 807-3366)
* 806-4973 Interface Board (used with 240V manufactured gas units only)
* 806-3683 Interface Board (used with Ger. fryers with 24V blowers only)
use 5A fuse 807-3293
* 106-3044 Interface Board, FAST Computer
(uses 807-3969 latch relay in place of Item 5)
* 806-3641 Interface Board, (used in Holland)
* 806-4195SP Interface Board, (used with manufactured gas Hong Kong)
* 806-3535 Interface Board, (used in Churches w/ Far West Computers)
8 807-1926 Bushing, .875 Diameter Split
9 816-0217 Paper, Insulating (Items 9, 10, 11, 12 not used on Hong Kong units)
10 810-1164 Block, Terminal (See Item 9)
11 826-1359 Screw, 4-40 x ¾-inch Slotted Round Head (See Item 9) (Pkg. of 25)
12 826-1366 Nut, 4-40 Keps Hex (See Item 9) (Pkg. of 25)
13 807-1241 Spacer, Interface Board (.151-inch ID x ⅝-inch)
14 809-0250 Nut, 6-32 Keps Hex
15 826-1337 Tab, Push-On Terminal (Pkg. of 5)
16 826-1346 Spacer, Ignition Module (.260-inch ID x ½-inch) (Pkg. of 10)
17 809-0441 Screw, #7 x 1½-inch Slotted Washer Hex Head
* 826-1157 Fuse Kit, Ignition Module 3 Amp (fuse and fuse puller)
* 806-2071 Computer Cable 15-pin
* 806-3660 Sound Device (For units with KFC1 Computers, use Speaker 807-1617)
* 807-1359 Mount, Tie-Wrap (used on CE units only)
* Not illustrated.
