Parts and Controls
Left Side Panel
3
3-5
avu054.tif

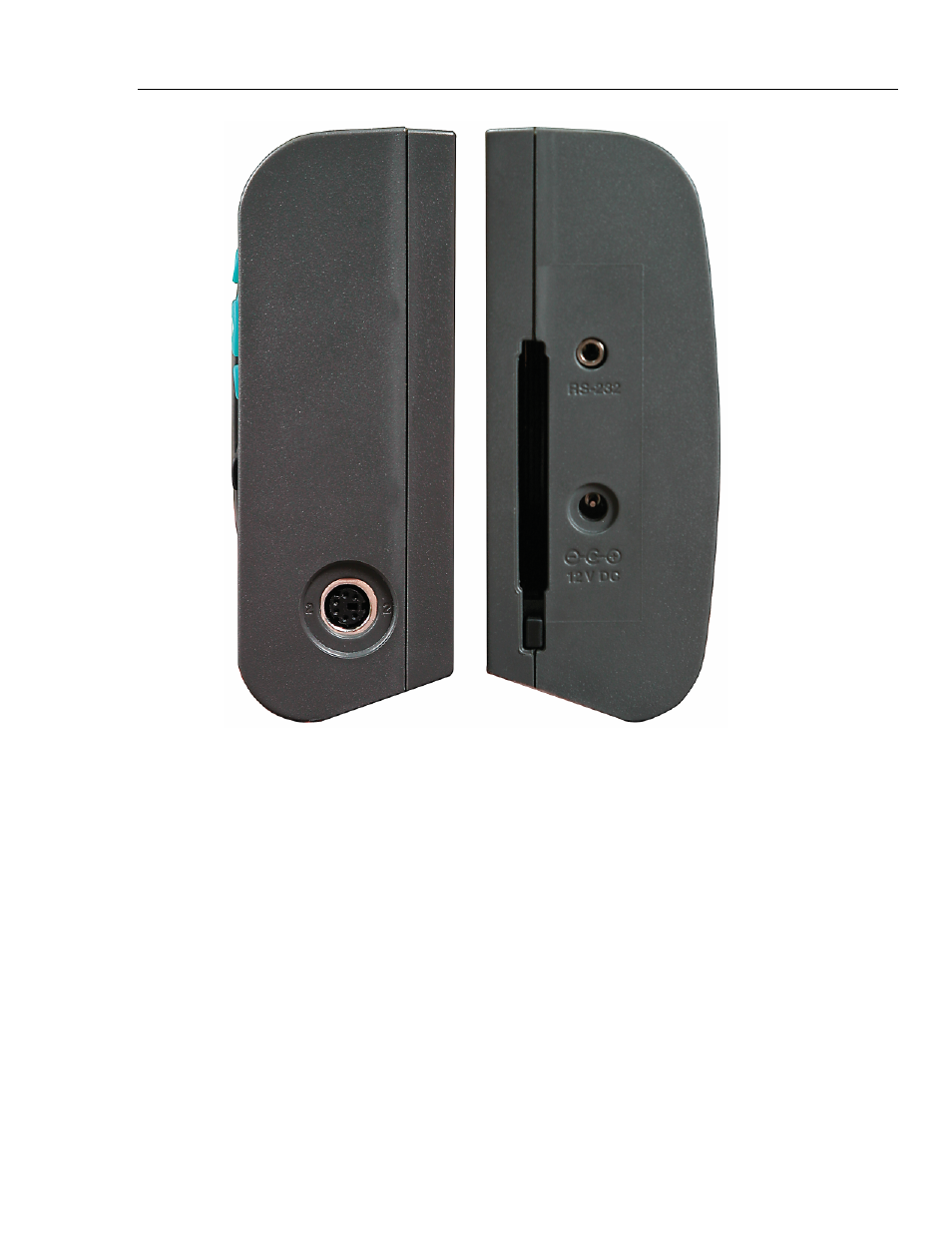

Figure 3-3. Right and Left Side View
Left Side Panel
The left side panel consists of the DC power socket, the RS-232 port and the data card
slot.
12 V DC Power Socket - The DC plug of the AC adapter plugs into the 12V DC
power socket to power the instrument.
RS-232 Port Connector - This socket is for interfacing the thermo-hygrometer to a
computer or terminal using serial RS-232 communications.
Data Card Slot - An optional data card is installed in this slot for additional memory
storage and data transfer with a computer.
Back Panel
The back panel contains the stand, power switch, battery compartment, and product
information, including serial number (see Figure 3-4).
Stand - The stand can be used to prop up the thermo-hygrometer on a flat surface.
