Operation, 1 controls – Furuno MU-150HD User Manual
Page 29
21
3.
OPERATION
3.1

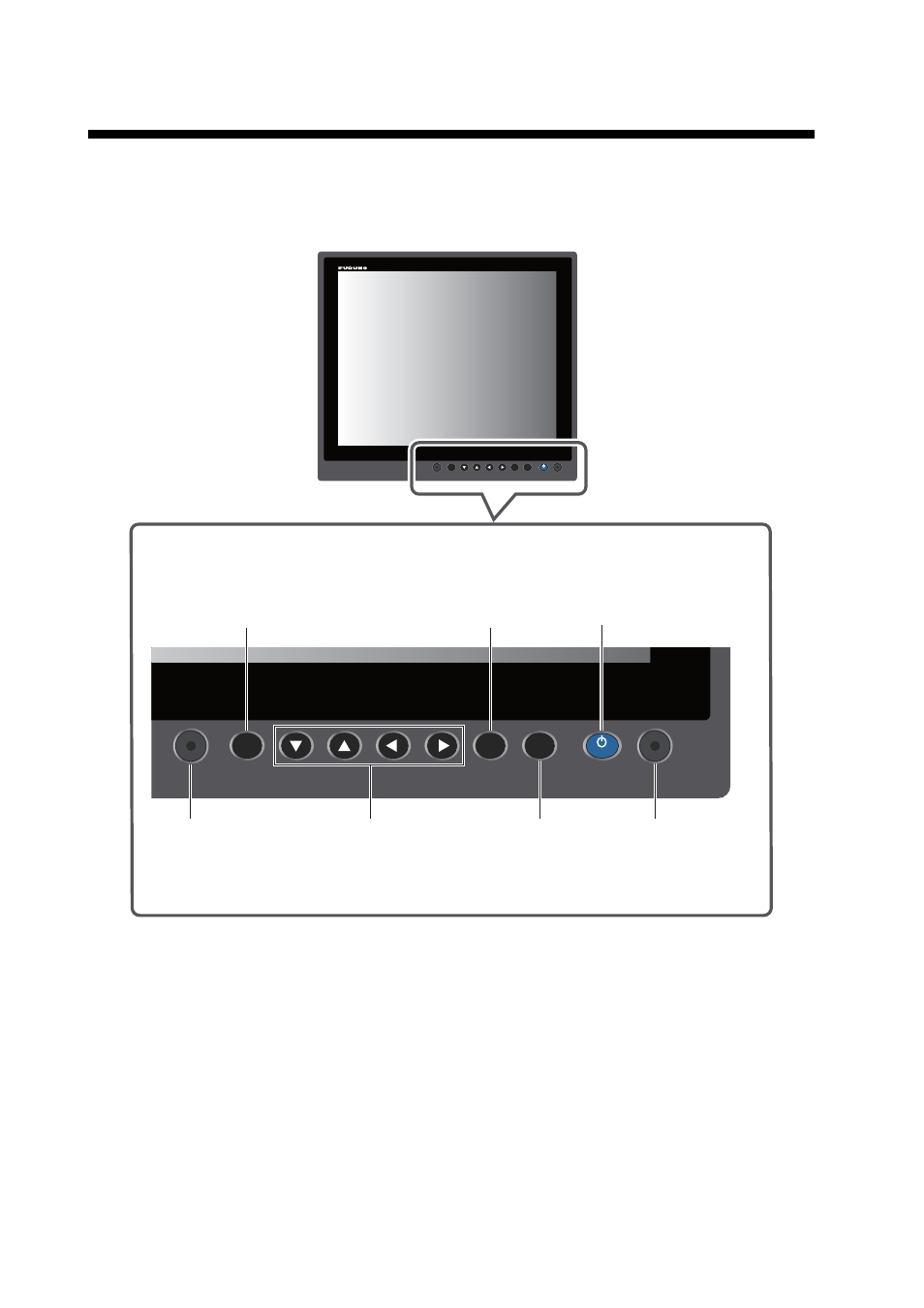

Controls
MENU
DISP
PIP
BRILL
MENU
DISP
PIP
BRILL
Open/Close the menu.
Light sensor
(According to the
ambient light.)
- Select the menu and
menu items.
- Adjust the setting.
- Move the PIP window.
Select the signal to display.
- Power On/Off.*
- Display the brilliance
adjustment window.
Display the PIP
setting window.
Lamp
(Lights when power on.)
Green: The signal
is input.
Orange: No signal.
*: It is available when the slide switch
at the bottom of rear side is OFF.
