1. MOUNTING, WIRING
6
1.3 Flush Mounting, Fixed at Front
If you do not have the enough space to fix the display unit from the rear, you can fix it from the
front with the Flush mount kit OP26-4 (option).
Flush Mount Kit OP26-4 (Code: 001-080-850)

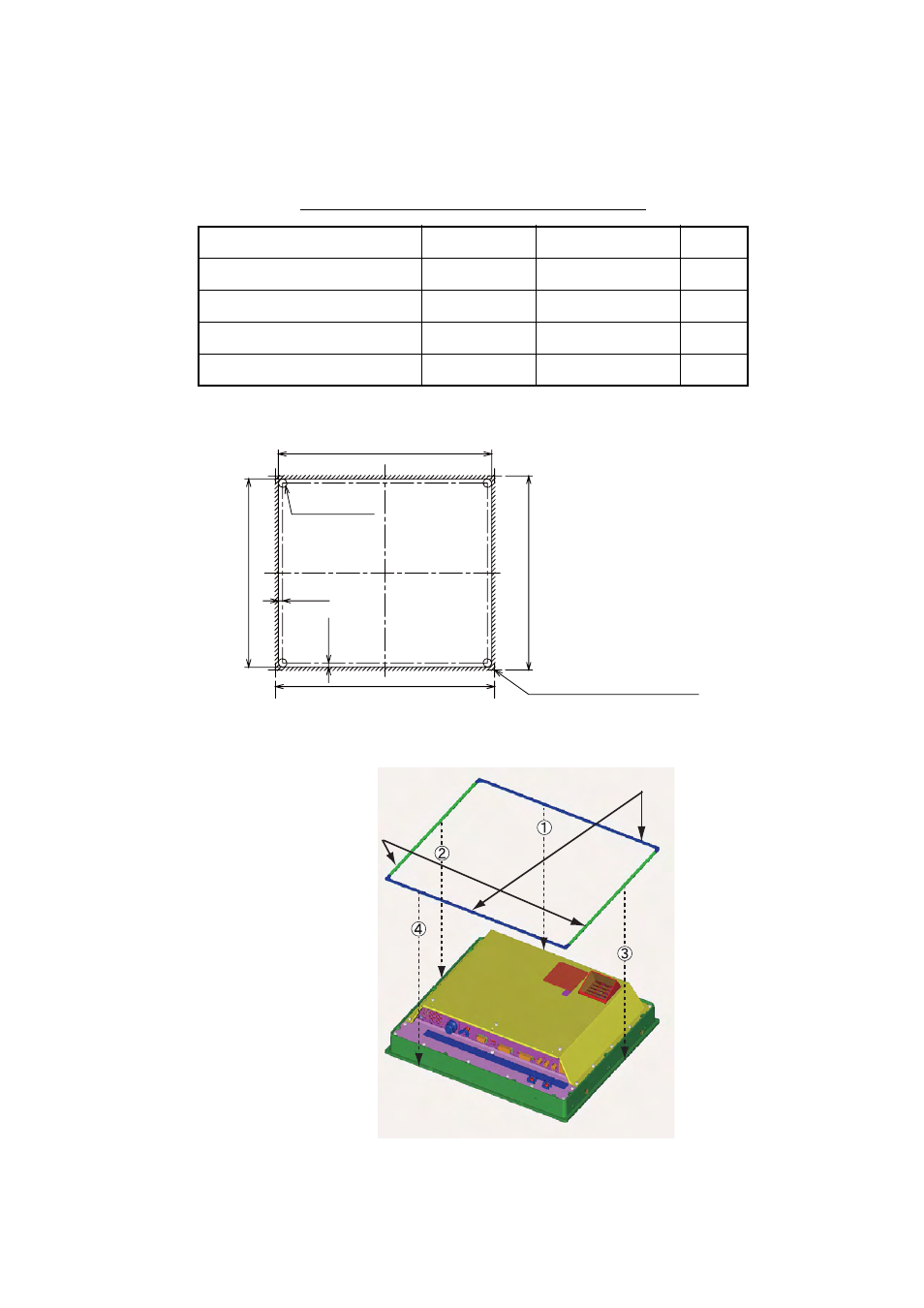

1. Make a cutout in the mounting location with the flush mounting template (included).
2. Attach the flush mounting sponges H15 and V15 in the order shown in the figure below.
Name Type Code No. Qty.
Flush Mounting Panel (15) OP26-4-1 001-080-960-00 1
Washer Head Screw M4x10 000-163-836-10 8
Self Tapping Screw 5x20 000-162-609-10 4
Flush Mounting Template C42-00909 000-172-636-10 1
370 (14.57”)
4-ø18 (0.71”)
320 (12.60”)
9 (0.35”)
382
±0.5 (15.04”)
332
±
0.5 (13.07”)
Pilot hole
for mounting from the front
9 (0.35”)
Flush Mounting Sponge (H15)
for top and bottom
Flush Mounting Sponge (V15)
for right and left
