Furuno MU-150HD User Manual
Page 17
1. MOUNTING, WIRING
9

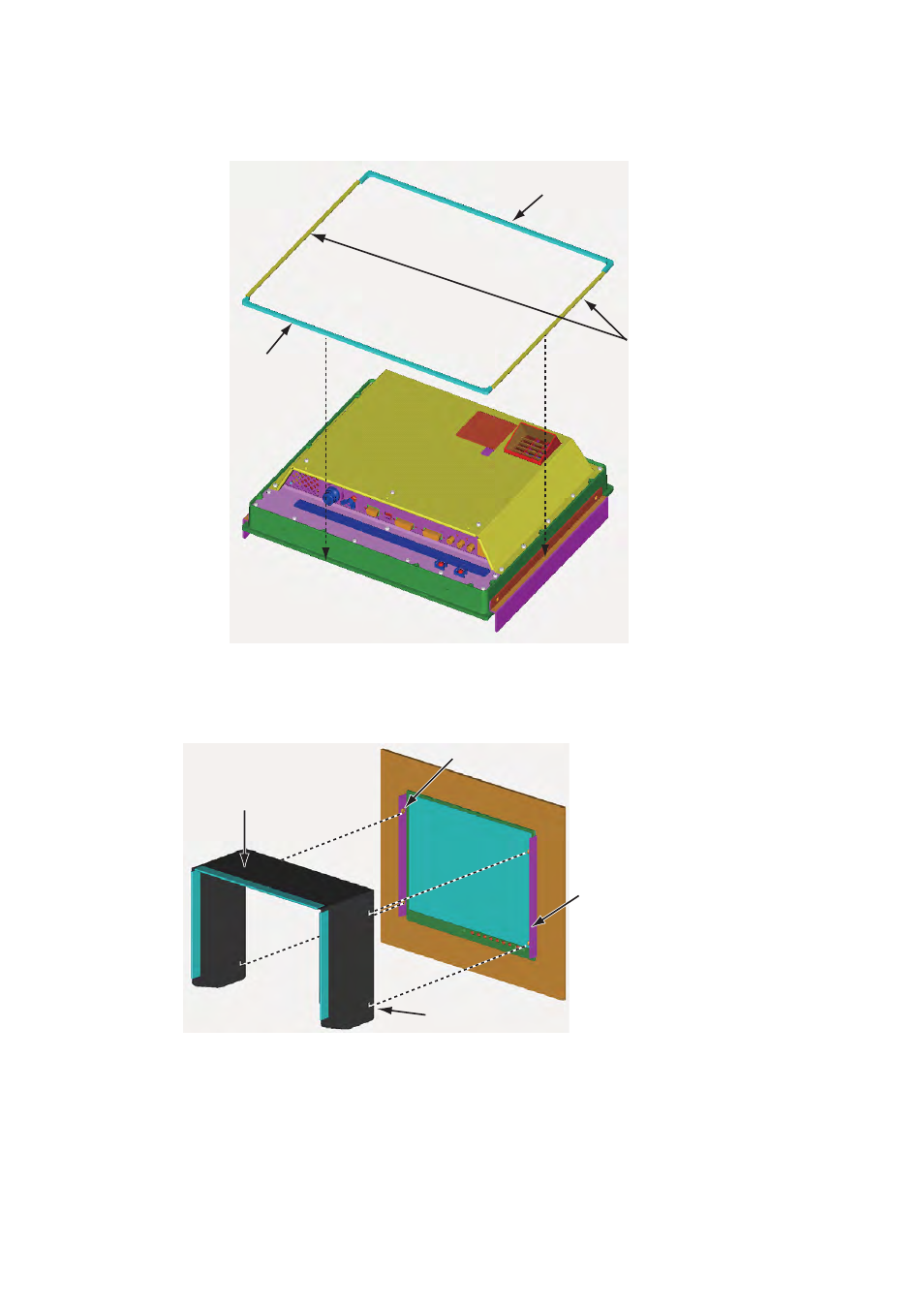

3. Attach the “F-Mount Hood Gasket 15” to the top brim, the “Hood Gasket Bottom 15” to the
bottom brim, and then attach the “F-Mount Hood Gasket Side 15” to the right and left sides of
the display unit from the rear side as shown the figure below.
4. Follow steps 3 to 9 in section 1.2 to fix the display unit to the mounting location.
5. Loosely fix the knobs (4 pcs.) to the hood fixing plate.
6. Slide the cutouts of the hood assembly to the knobs.
F-Mount Hood Gasket Side 15
Hood Gasket Bottom 15
F-Mount Hood Gasket 15
Cutout (4 places)
Knob (4 pcs.)
Hood (15) Assembly
Hood Fixing Plate 15
