1. MOUNTING, WIRING
8

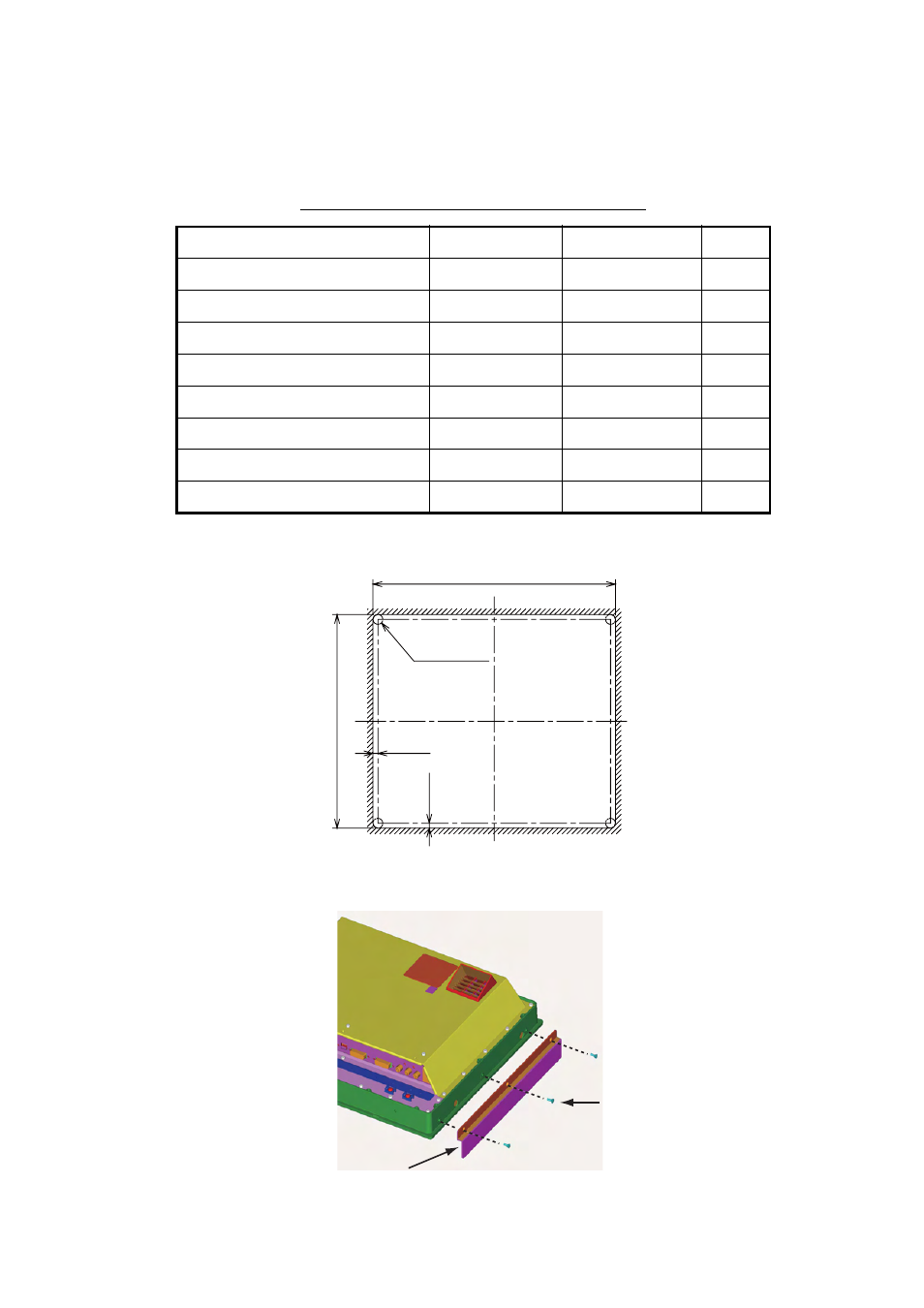

1.4 Flush Mounting, Fixed at Rear, with hood
You can attach a hood when flush mounting the unit from the rear, using the hood assembly
OP26-3 (option).
Hood Assembly OP26-3 (Code: 001-080-840)
1. Make a cutout in the mounting location with the flush mounting template (included).
2. Fix the hood fixing plates to the right and left of the display unit with the flat head screws (6
places).
Name Type Code No. Qty.
Hood (15) Assembly OP26-3-1 001-080-950-00 1
F-Mount Hood Gasket 15 26-005-2305 100-351-710-10 1
Hood Gasket Bottom 15 26-005-2306 100-351-720-10 1
F-Mount Hood Gasket Side 15 26-005-2307 100-351-730-10 2
Hood Fixing Plate 15 26-005-2302 100-351-321-10 2
Knob M4 03-163-2303 100-343-602-10 4
Flat Head Screw M3x8 000-172-167-10 6
Flush Mounting Template C42-00908 000-172-635-10 1
368 ±1 (14.49”)
314
±
1 (12.36”)
9 (0.35”)
4- ø18 (0.71”)
9 (0.35”)
Flat Head Screw
Hood Fixing Plate 15
