Furuno MU-150HD User Manual
Page 13
1. MOUNTING, WIRING
5

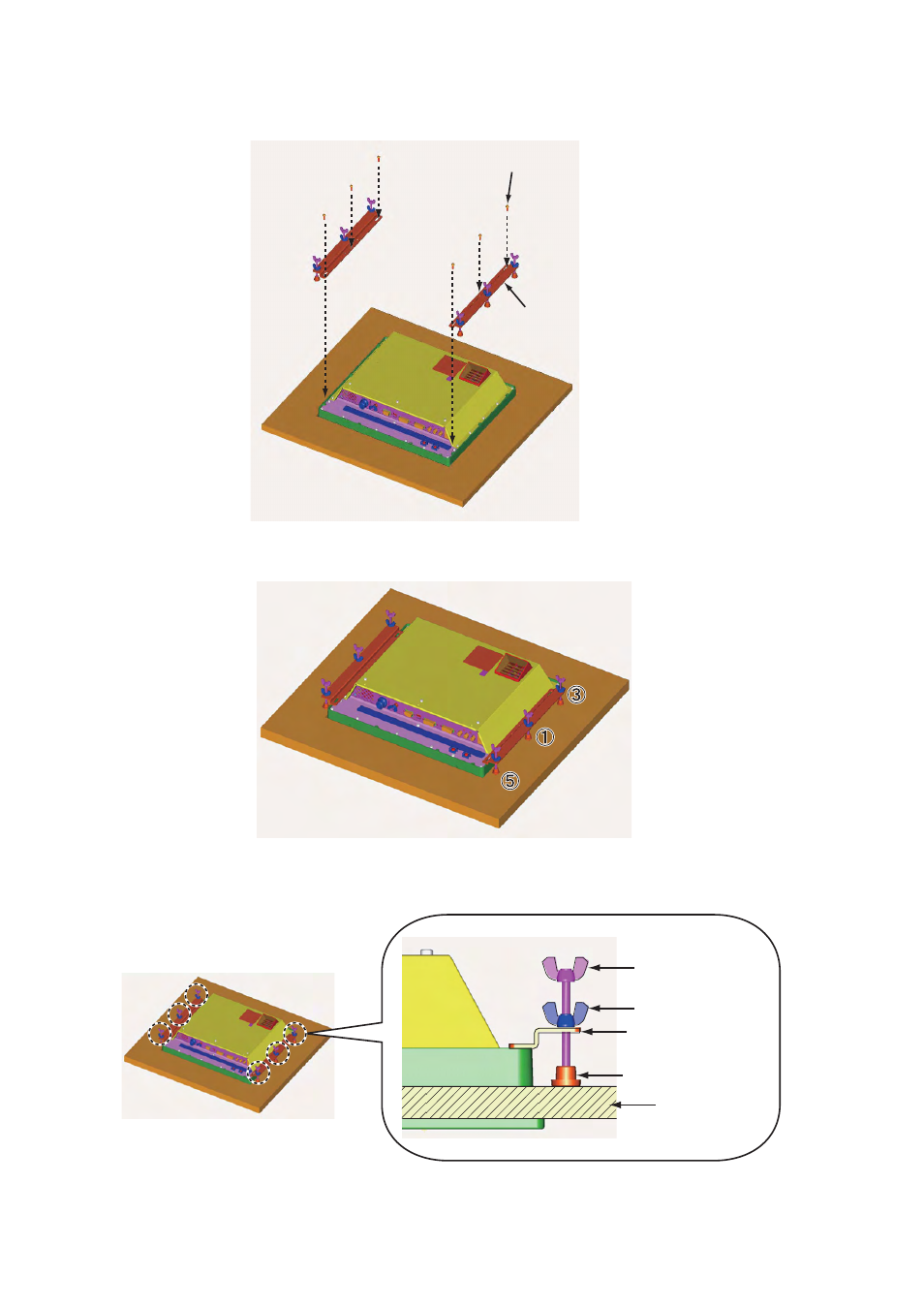

6. Fasten the flush mount fixture 15 to the right and left sides of the rear of the display unit with
the washer head screws (6 places).
7. Fasten the wing bolts, in the order of the number shown in the figure below so that the protec-
tors touch the mounting panel.
8. Fasten the wing bolts tightly, in the order shown in step 7.
9. Fasten the wing nuts tightly.
Flush Mount Fixture 15
Washer Head Screw
㽷
㽷
㽳
㽳
㽵
㽵
Protector
Wing Bolt
Wing Nut
Mounting Panel
Mounting Plate
