Chapter 5 Installing Optional Products
5.2 Installing Drive Enclosures
ETERNUS DX60 S2 Disk storage system User’s Guide -Operation-
76
Copyright 2012 FUJITSU LIMITED
P3AM-5512-03ENZ0
10

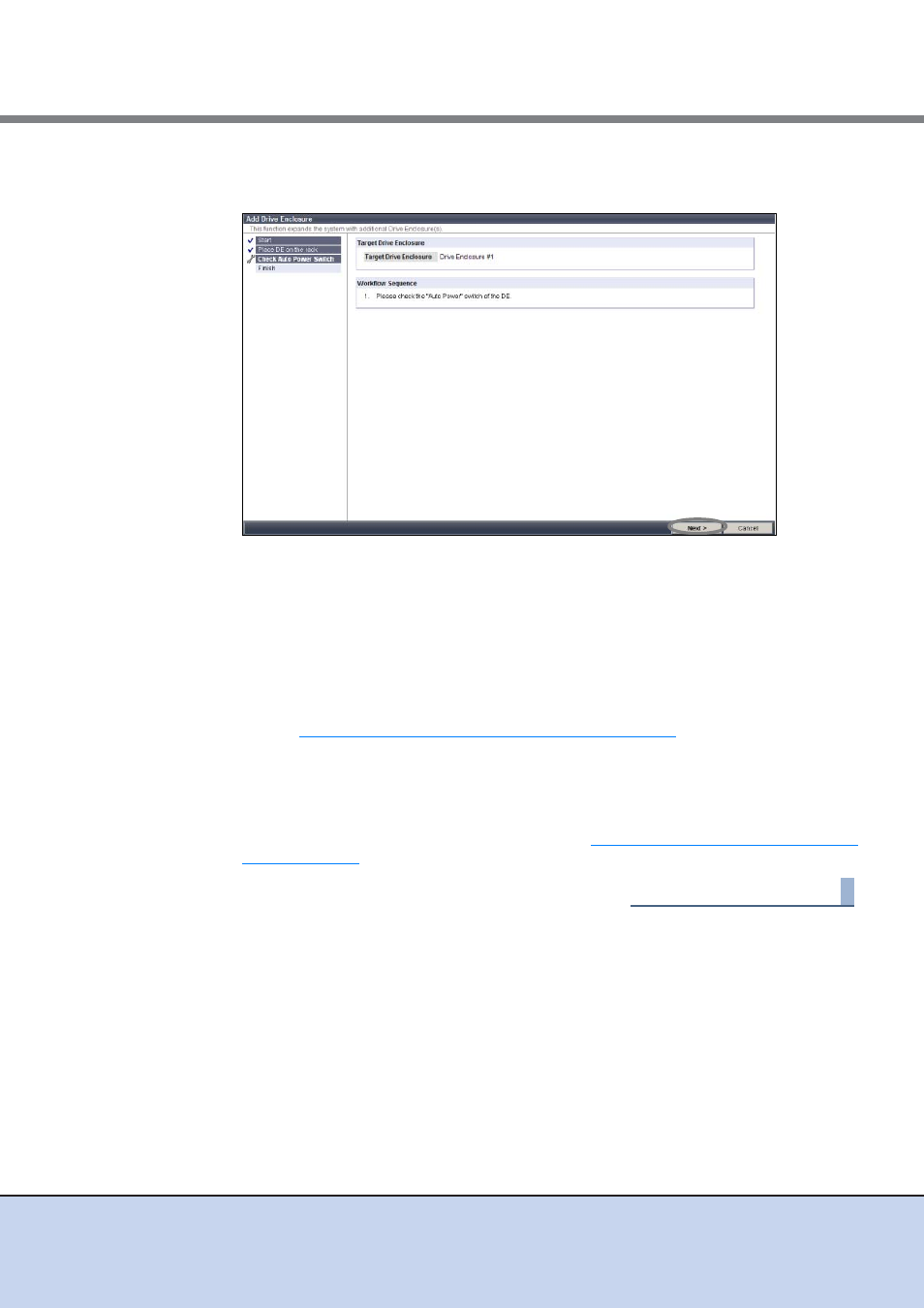

Check the drive enclosure's AUTO POWER switch is OFF, and click the [Next>]
button.
The expansion completion screen is displayed.
11
Click the [OK] button.
The [Add Drive Enclosure] screen is closed.
12
On the Storage System Status screen, check that the added drive enclosures
have been recognized.
13
Install the disks.
Refer to
"5.1.4 Additional Disk Installation Procedure" (page 60)
for the appropriate
procedure.
14
If a wrist strap is used, remove the wrist strap.
15
Attach the front cover.
For details on how to attach the front cover, refer to
"2.3 Attaching and Removing the Front
.
End of procedure
