Chapter 5 Installing Optional Products
5.2 Installing Drive Enclosures
ETERNUS DX60 S2 Disk storage system User’s Guide -Operation-
74
Copyright 2012 FUJITSU LIMITED P3AM-5512-03ENZ0
- For a dual-controller type
6

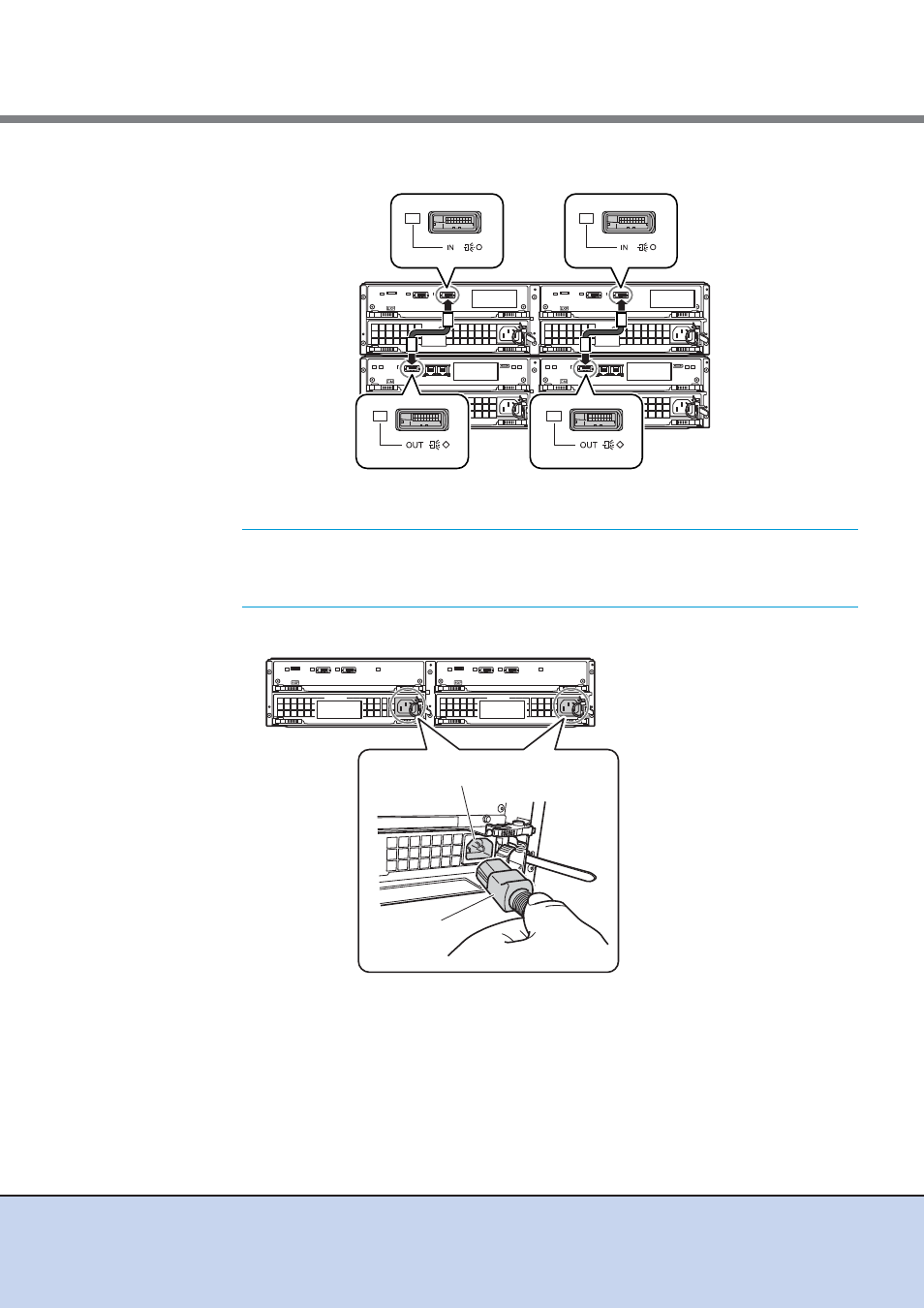

Connect the power cord to the drive enclosure.
6-1 Connect the power cord plugs to the inlets of the power supply units.
IMPORTANT
A drive enclosure has two power supply units (PSU#0 and PSU#1).
The power cords must be connected to the inlets of both power
supply units.
Controller enclosure
Drive enclosure
CM#1 CM#0
EXP#1 EXP#0
PSU#1 PSU#0
Inlets
Power cord plug
