1.3
Power Distribution Units (for Regions other than
EMEA&I)
There are two sizes for power distribution units: 1U and 2U.
1.3.1
Power Distribution Units (1U)
The 1U power distribution unit has four outlets and two inlets.
■
Power Distribution Units (1U)

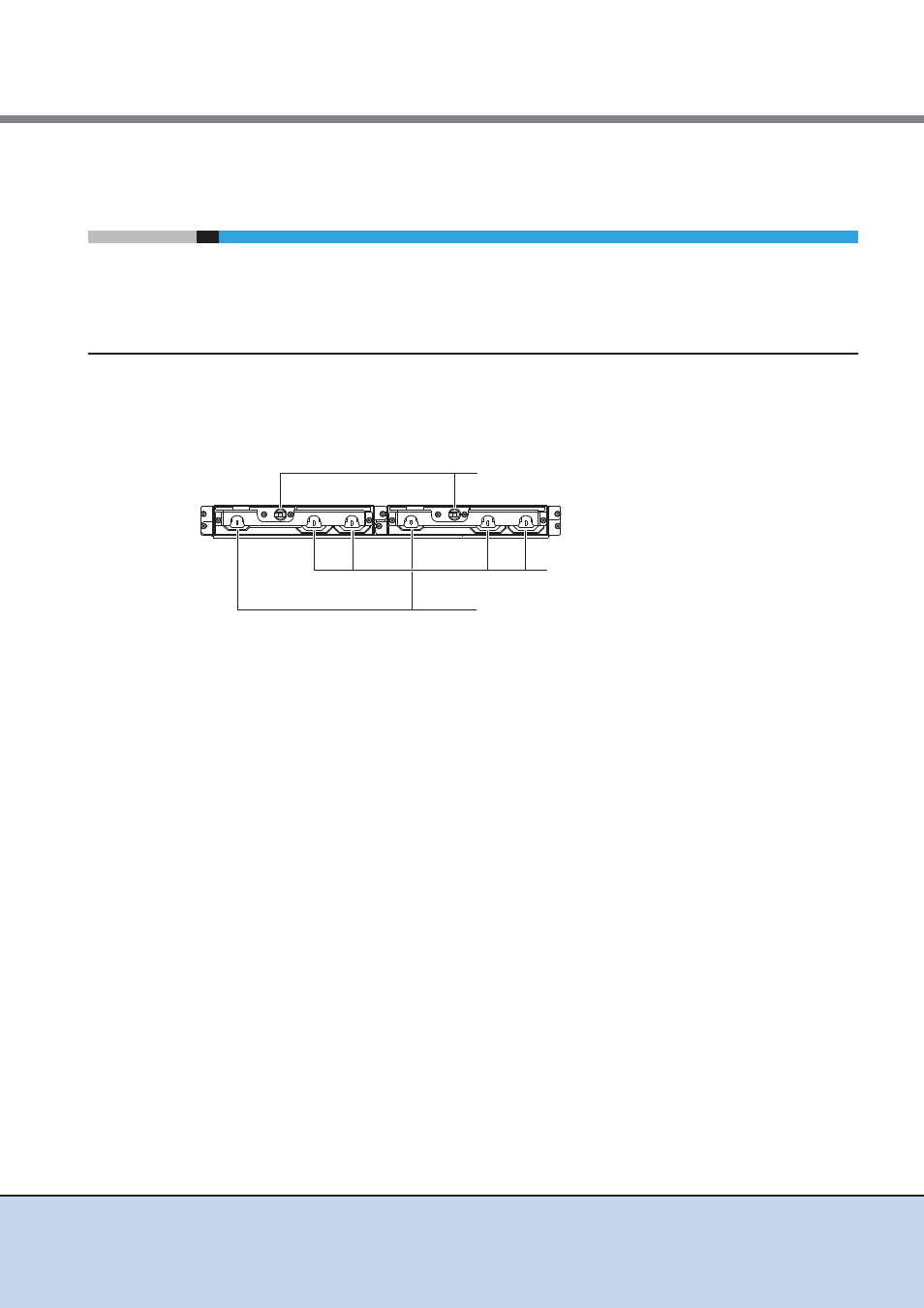

Figure 1.25 Power distribution unit (1U)
●
Part explanation
•
Main line switch
This turns on and off the power distribution unit.
•
Inlet (INPUT)
This is a socket (IEC60320-C13) for incoming power supply. This socket is used to connect a
power cord (AC input cable).
•
Outlet (OUTPUT)
This is a socket (IEC60320-C13) for outgoing power supply. This socket is used to connect a
power cord (AC output cable).
Inlets (INPUT)
Outlets (OUTPUT)
Main line switches
