Chapter 5 Installing Optional Products
5.1 Installing Disks

ETERNUS DX60 S2 Disk storage system User’s Guide -Operation-

P3AM-5512-03ENZ0

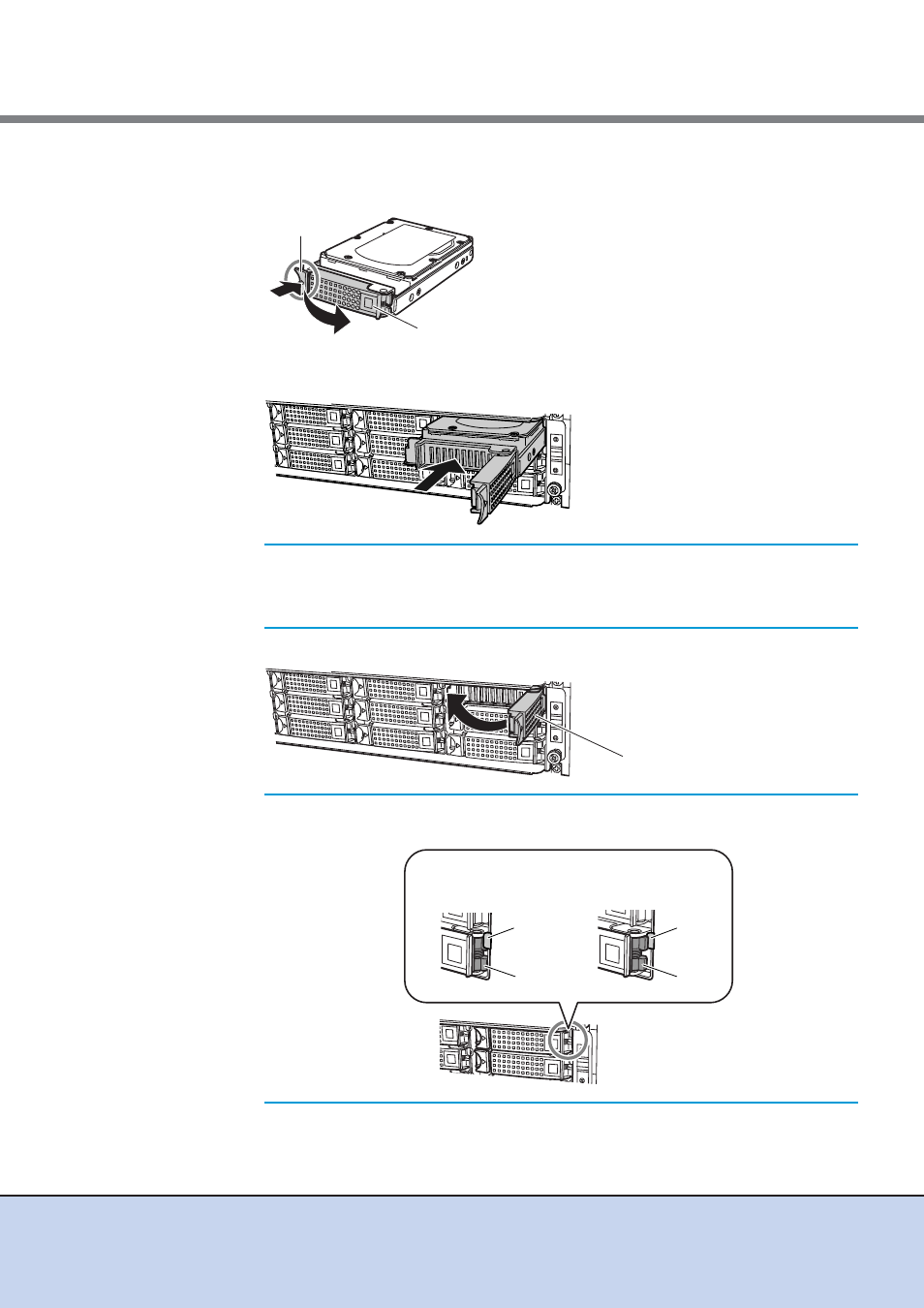

Install the new disk.

5-1

Press the catch on the disk lock lever to unlock it.

5-2

Insert the disk all the way into in the slot, making sure that it is firmly seated and
keeping the lock lever open.

5-3

Swing the lock lever in the direction of the arrow, until the lock clicks shut.

5-4

Check that the newly installed disk’s DISK READY/FAULT LED lights up green after
approximately 30 seconds.

IMPORTANT

•

Hold the disk with both hands to protect against jarring.

•

Insert the disk until the lock lever hooks reach the slot
protrusions.

IMPORTANT

Make sure that the lock lever hooks have engaged the slot
protrusions.

Catch

Lock lever

Hook

Slot
protrusion

Hook

Slot
protrusion

Lock lever hooks

have not engaged

Lock lever hooks

have engaged
