6.3 Hole-punching Prohibited Areas
6.3 Hole-punching Prohibited Areas

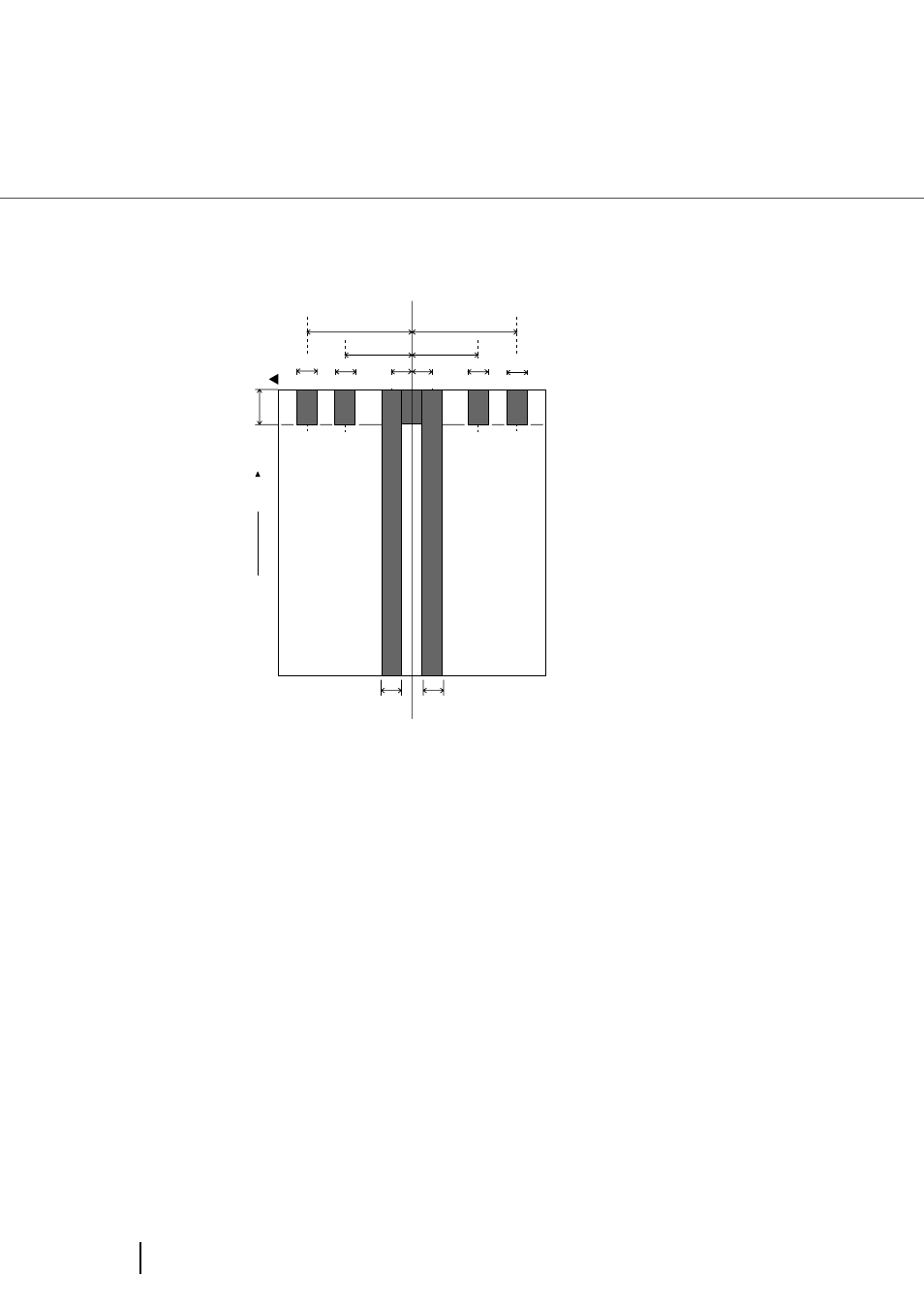

Punched holes in the shaded areas may cause errors.
For job separation sheet requirements, please refer to the section "6.6 Job Separation Sheet."
113 (4.45") 134 (5.28")
79 (3.12") 96 (3.78")
10
(0.39")
15
(0.59")
Front side
Reading surface
Document feeding direction
(Unit : mm)
Top of document
Bottom of document
Center of document
10
(0.39")
Reading
reference
position 10
(0.39")
10
(0.39")
10
(0.39")
10
(0.39")
12
(0.47")
12
(0.47")
