4.4 Replacing the Pick Roller Unit
4
REPLA
C
EMENT OF CONSUMABLES
4.4 Replacing the Pick Roller Unit

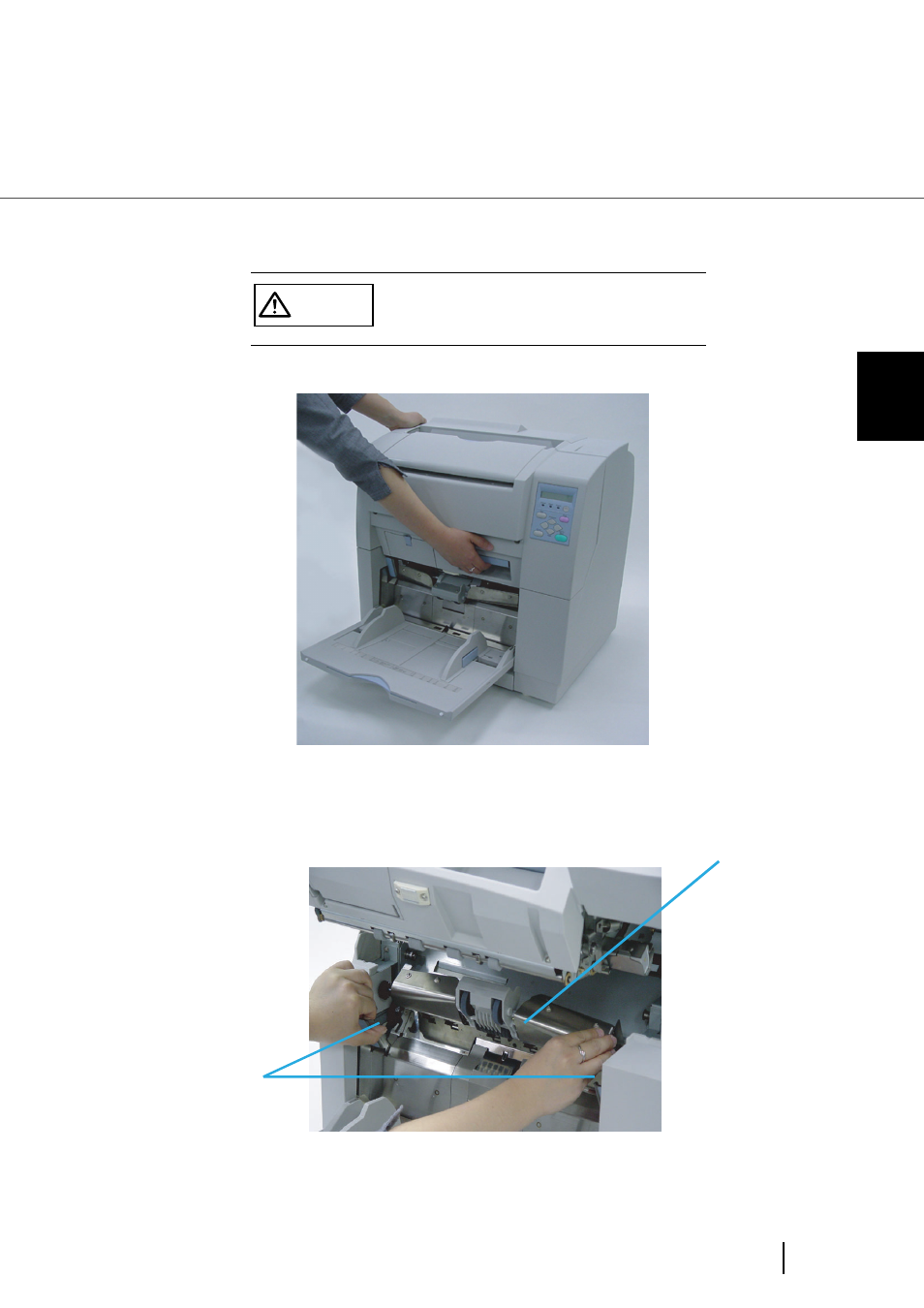

1. Pull up the lever on the right front of the upper transport unit.
2. While pulling the ADF lever toward you, lift up the ADF upper sheet guide.
CAUTION
Make sure that the Upper transport unit
is locked before you put your hands
inside of the scanner.
#&(WRRGTUJGGVIWKFG
#&(TGNGCUGNGXGT
