Installation Conditions
3-12 C141-E218
3.4.2 Factory default setting

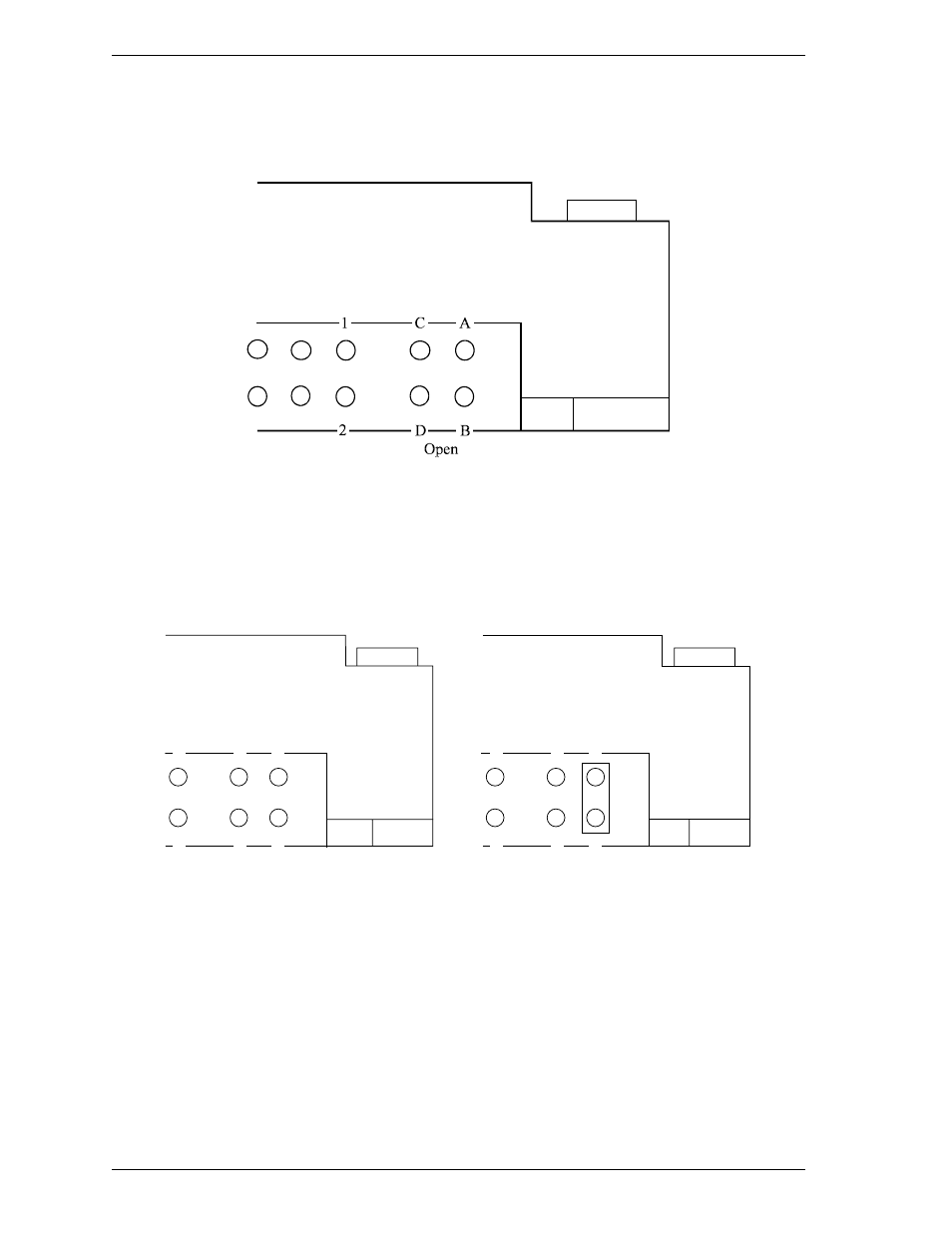

Figure 3.12 shows the default setting position at the factory.
Figure 3.12 Factory default setting
3.4.3 Master drive-slave drive setting
Master drive (disk drive #0) or slave drive (disk drive #1) is selected.
(b) Slave drive (a) Master drive
Open
Open
Short Open
A 1 C
B D 2 B D 2
A C 1
Figure 3.13 Jumper setting of master or slave drive
Note:
Pins A and C should be open.
Open
