ATL USER GUIDE
OM100 Optical Multiplexer
17

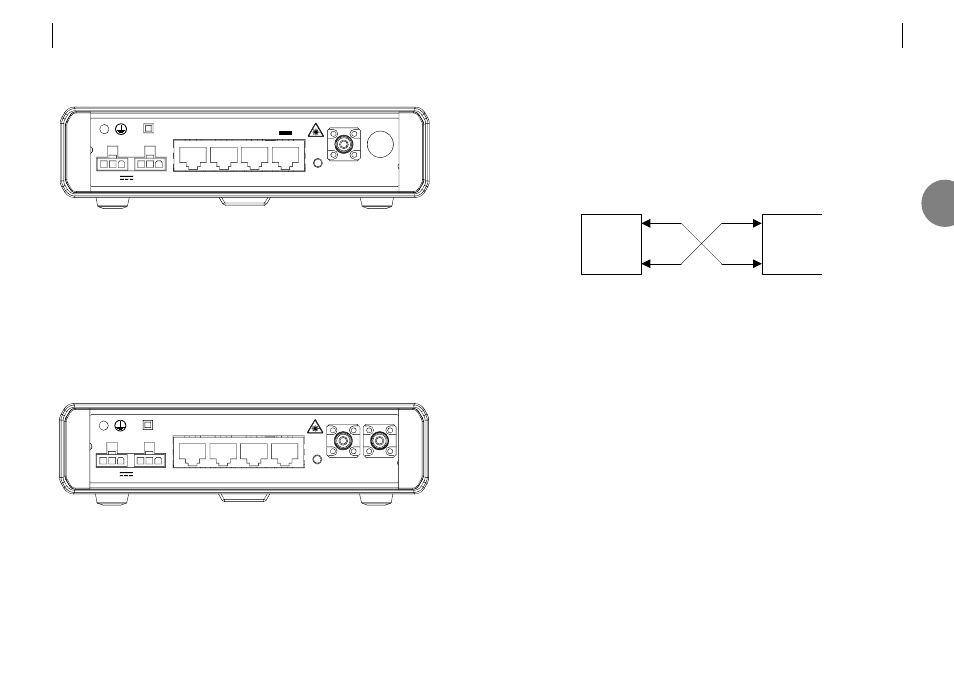

CONNECTING THE OM100 1+1 SF SM OPTICAL FIBRES
The Optical fibres must be connected as in Fig 3.2.4 :
Main Link: Optical Line 1 on the Master unit must be connected to Optical Line 2 on the
Slave unit.
Backup Link: Optical Line 2 on the Master unit must be connected to Optical Line 1 on the
Slave unit.
FIGURE 3.2.4
Slave
Optical 1
Optical 2
st
Optical 1
Optical 2
Master Slave
3
16 ATL USER GUIDE
OM100 Optical Multiplexer
3.5.2.2 Single fibre, single-mode
FIGURE 3.2.2
INFORMATION RELATING TO OM100 SINGLE-FIBRE SINGLE-MODE SLAVE (1/352/3XX)
Emitted wavelength = 1310nm
Maximum output laser radiation < 5mW
Laser classification = Class 1 to EN 60825:1994
INFORMATION RELATING TO OM100 SINGLE-FIBRE SINGLE-MODE MASTER (1/352/4XX)
Emitted wavelength = 1550nm
Maximum output laser radiation < 7mW
Laser classification = Class 1 to EN 60825:1994
3.5.2.3 1+1 single fibre, single-mode
FIGURE 3.2.3
INFORMATION RELATING TO OM100 1+1 SINGLE-FIBRE SINGLE-MODE (1/352/5XX)
Emitted wavelength = 1310nm & 1550nm
Maximum output laser radiation <5mW @ 1310nm & <7mw @ 1550nm
Laser classification = Class 1 to EN 60825:1994
12
OPTICAL LINE
DC 1 DC 2
CH 1 CH 2 CH 3 CH 4
BOOT
- 48V /100mA
12
OPTICAL LINE
DC 1 DC 2
CH 1 CH 2 CH 3
BOOT - 48V /100mA
