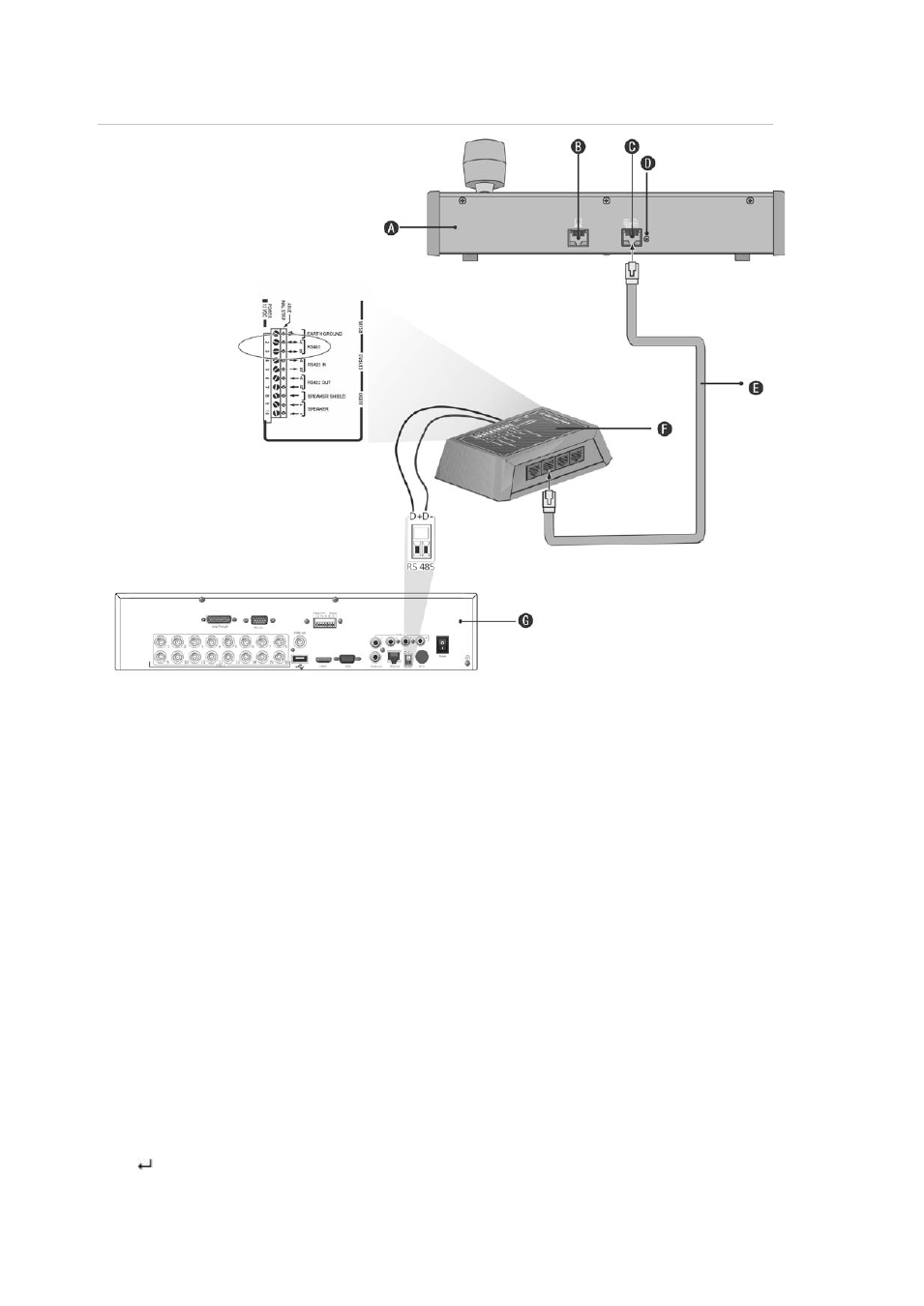

Figure 38: Keypad and recorder connections

A. KTD-405 keypad

B. RS-232 programming port

C. RS-485 and RS-422 in/out

D. RS-485 termination switch

E. RJ45 cable control (use the cable provided

with the equipment)

F. I/O box

G. Recorder back panel

See “Connecting a KTD-405 keypad and dome camera to the recorder” on page
15for information on how to connect both a keypad and dome camera to the
recorder.

Setting the keypad to work with the recorder

The keypad must be in zone mode to connect correctly with the recorder.

Further information on connecting and programming the KTD-405 keypad can be
found in the user manual.

To set the keypad in zone mode:

1. Log into the keypad using the Admin password. Hold down the Enter button

(

) until a beep sounds and then enter the following code: 1 4 7 6. Push

the

seq

button to confirm.
