TruVision DVR 12 User Manual 11
Connecting a PTZ dome camera
See Figure 4 below for how to connect a PTZ camera to the recorder. Any PTZ
dome camera can be controlled as the recorder is doing the PTZ protocol
translation. However, this setup provides only limited dome configuration (see
Appendix B on page 130 for the list of approved PTZ protocols).

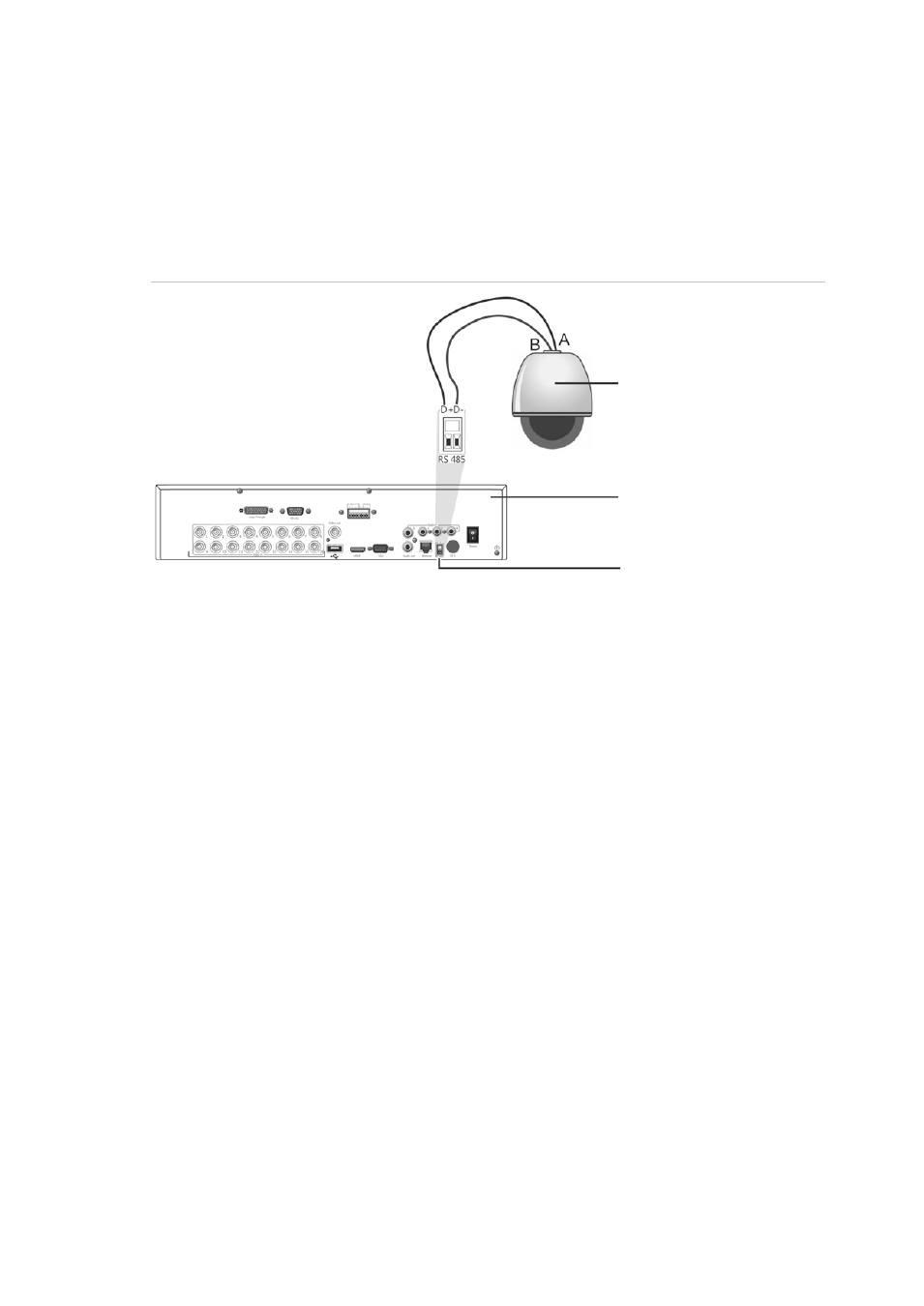

Figure 3: Connecting a PTZ dome camera to the recorder for control over the network
Dome camera
Recorder back panel
RS-485 port
Configuring the PTZ protocols for Interlogix cameras
Before the PTZ dome cameras are assembled in their housings, set their
protocol and address DIP switches for the recorder. See Table 3 on page 12 for
different Interlogix PTZ dome camera settings.
If you are using PTZ dome cameras from another company, please refer to their
configuration instructions.
